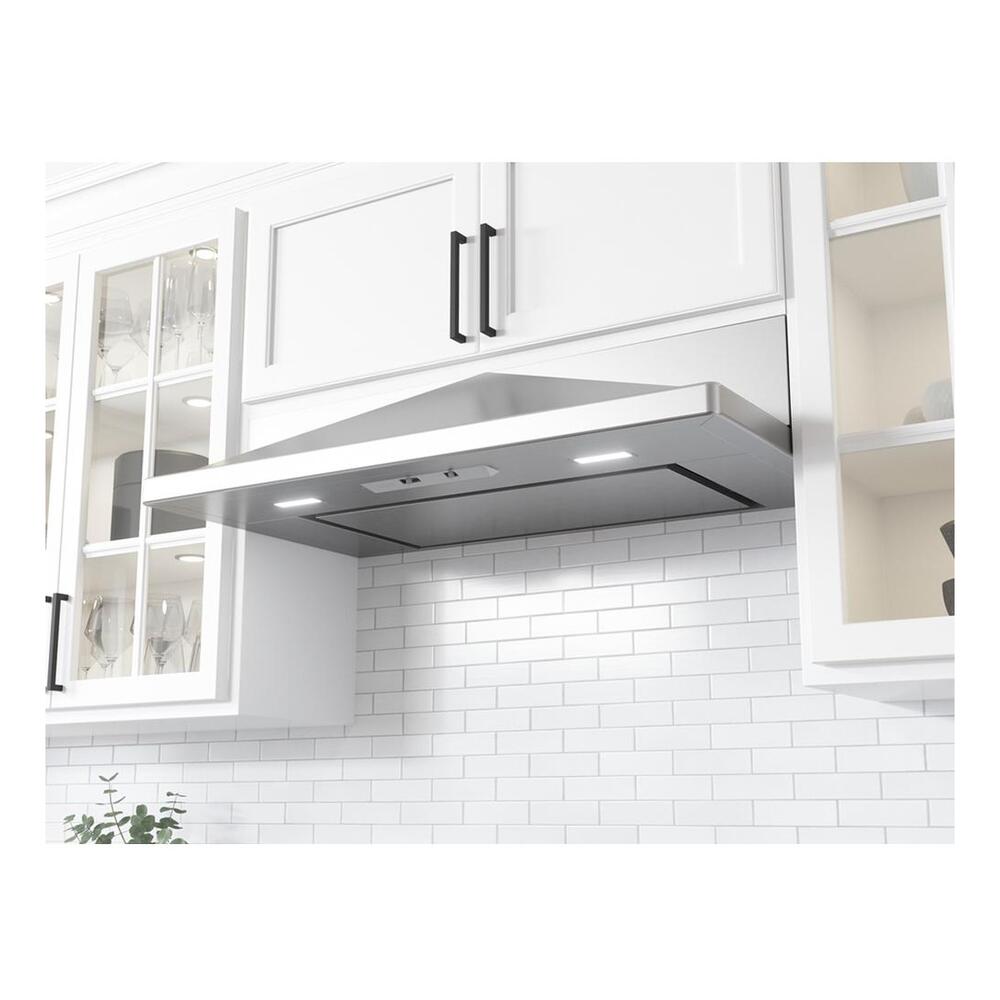

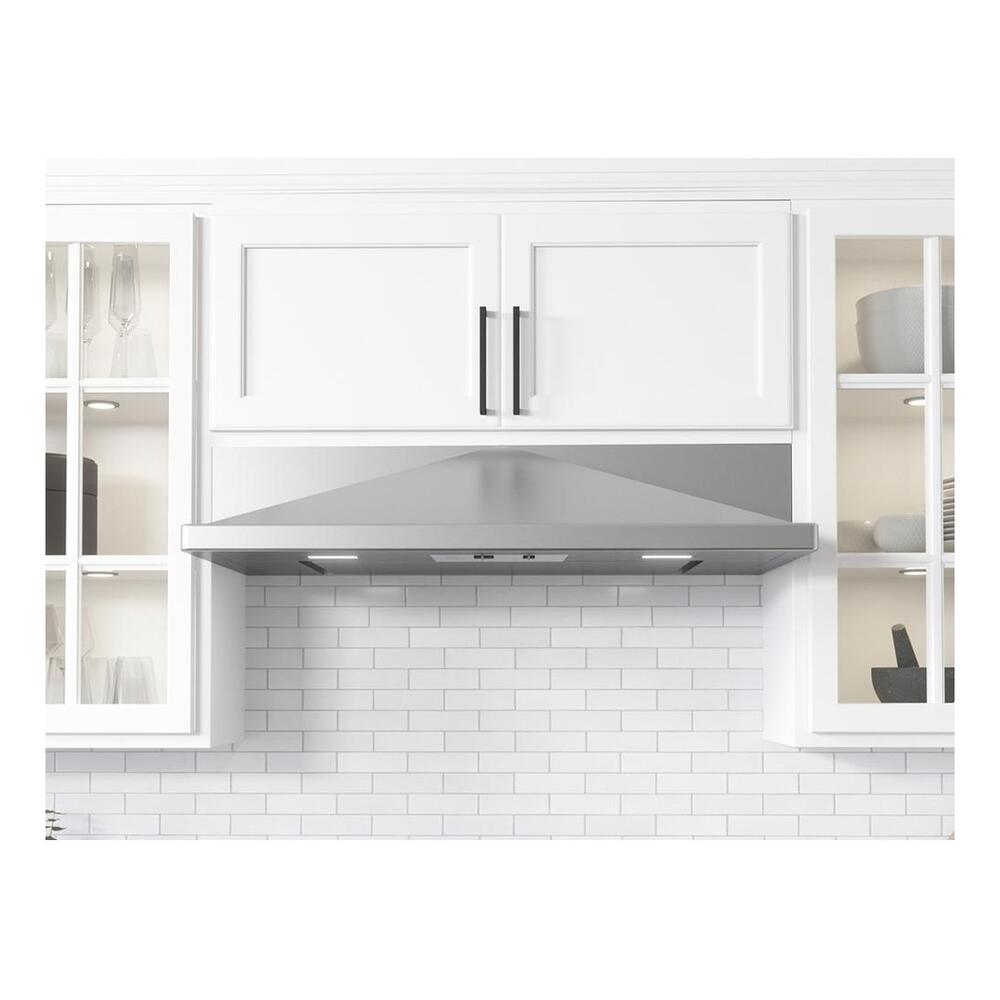

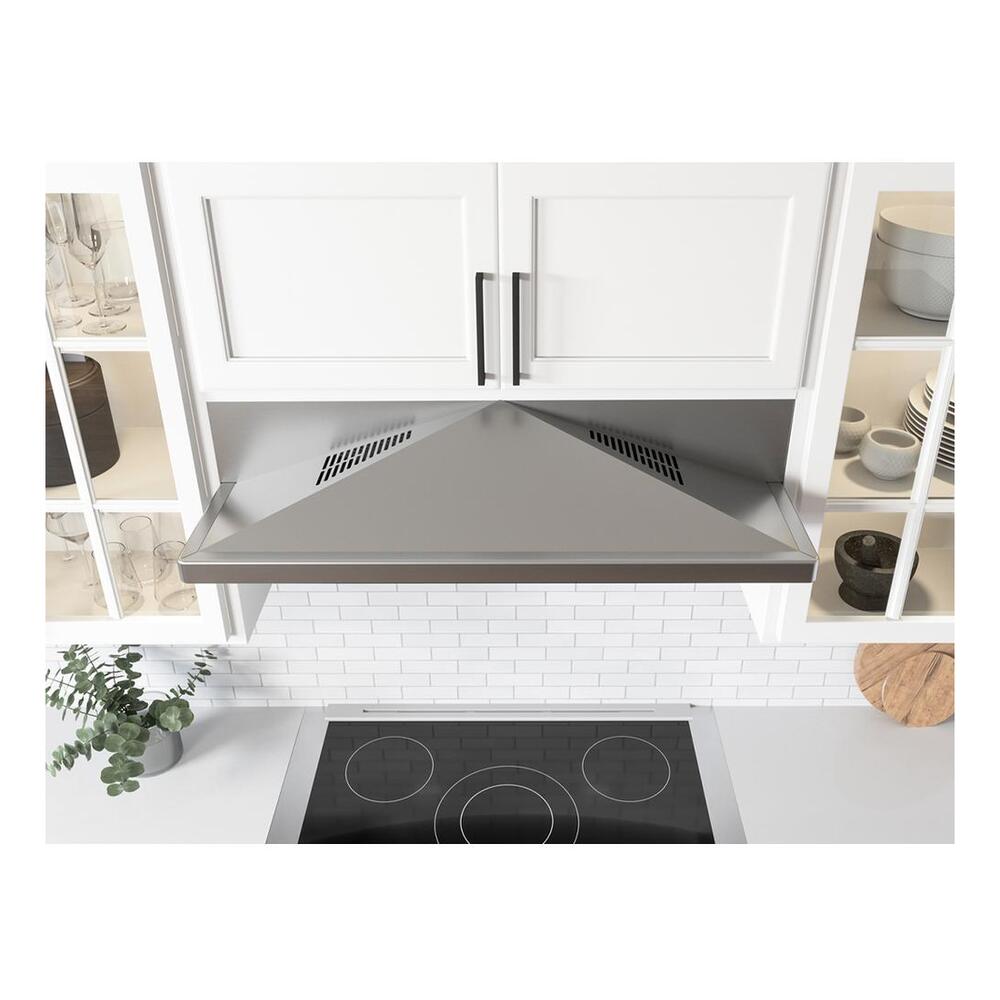

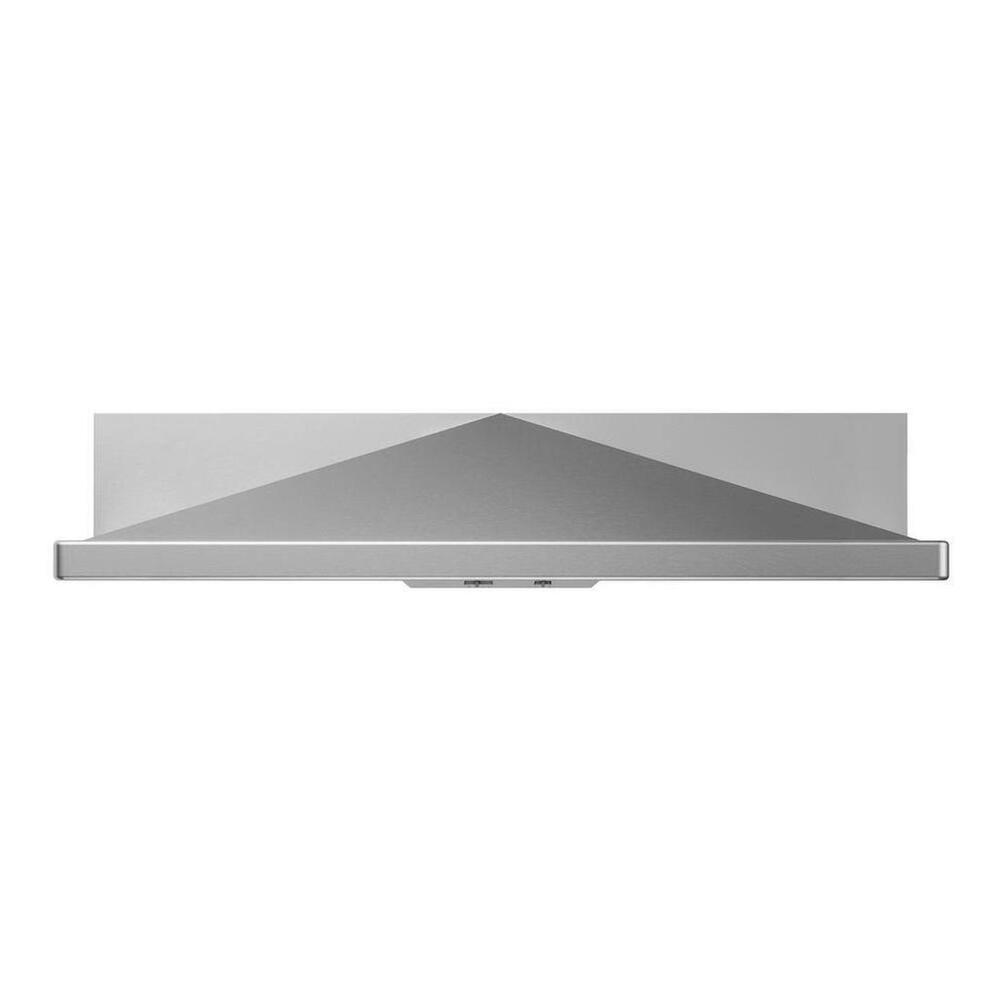

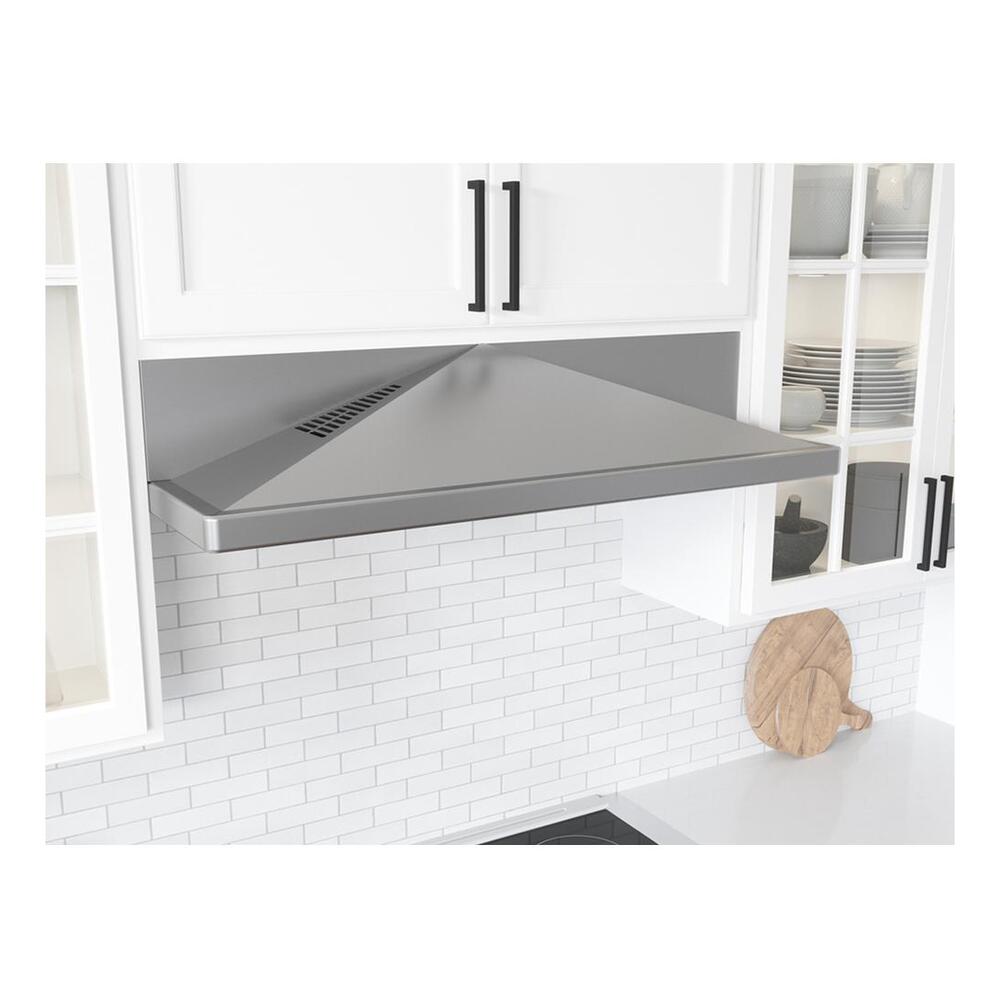

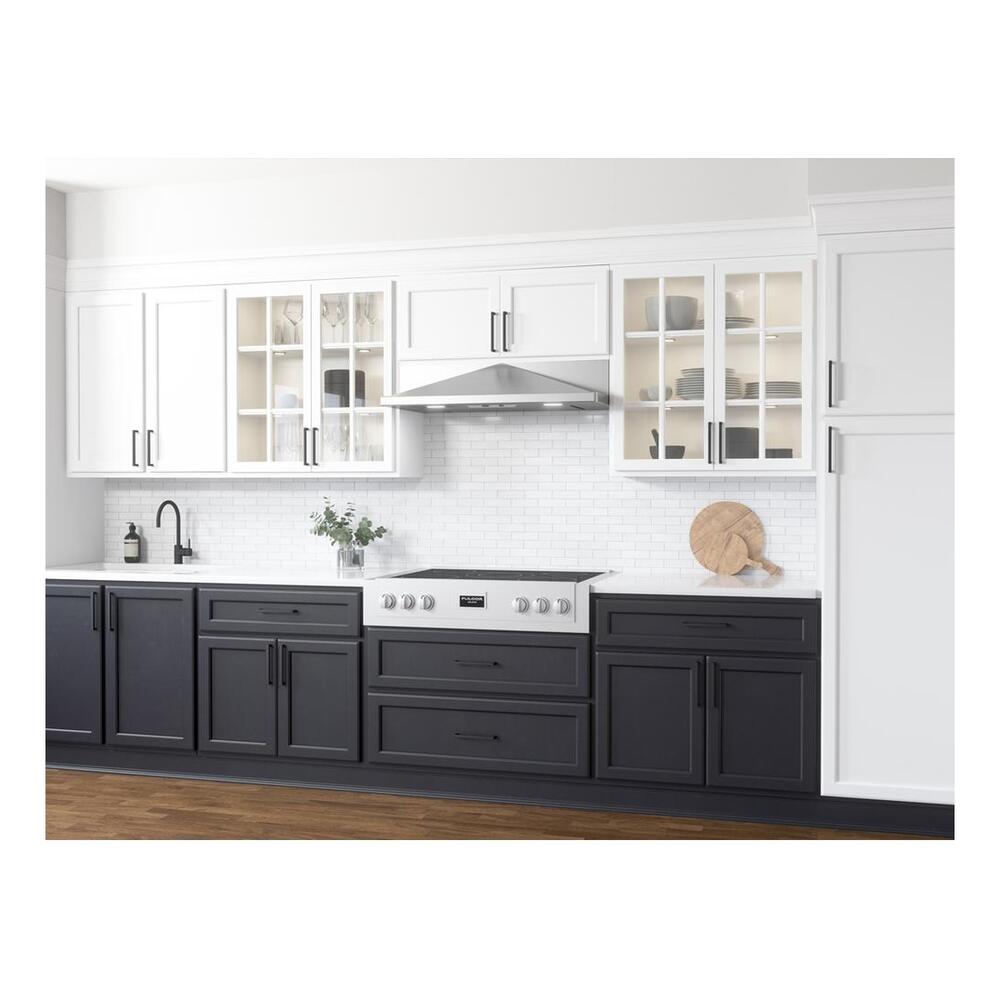

Pyramid Under-Cabinet
Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive-yet-utilitarian design is upgraded with our Perimeter Aspiration System for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12″ depth ensures a true fit with popular cabinet styles.
Features
- Perimeter Aspiration System
- LumiLight LED Lighting
- Dual-Level Lighting
- Aluminum Mesh Filters
- Mechanical Slide Controls
Specifications | |
| Brand | Zephyr |
| Series | Core |
| Appliance Category | Hood |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 36" |
| Width | 35 7/8" |
| Depth | 21" |
| Height | 7 15/16" |
Style | |
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 120 |
| Amps | 2 |
| Duct Type | Both |
| Number of Light Bulbs | 2 |
| Duct Diameter | 7" |
| Duct Length | 3 1/4" |
| Duct Location | Top |
| Duct Width | 10" |
| Frequency | 60 Hz. |
Certifications | |
| ADA Compliant | No |
| Energy Star | No |
Warranty | |
| Warranty | 3 Year Parts, 1 Year Labor |
Features | |
| CFM | 400 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Control Type | Mechanical slider |
| Light Bulb Type | LED |
| Delay Turn Off | No |
| Number of Fan Speeds | 3 |
| Recirculating Kit | Sold Separately |
