The XOQ30GC 30″ Wall Mount Range Hood combines Italian stainless steel and glass in a stunning design. Its flat surface aligns seamlessly with shelving, enhancing your kitchen’s aesthetic while making a bold statement. This range hood features Code Compliance Control, allowing you to adjust the CFM from 600 to 395 for optimal ventilation. Additional features include energy-efficient LED lighting, durable aluminum mesh filters, and a convenient delay shutoff function, ensuring both style and functionality in your cooking space.

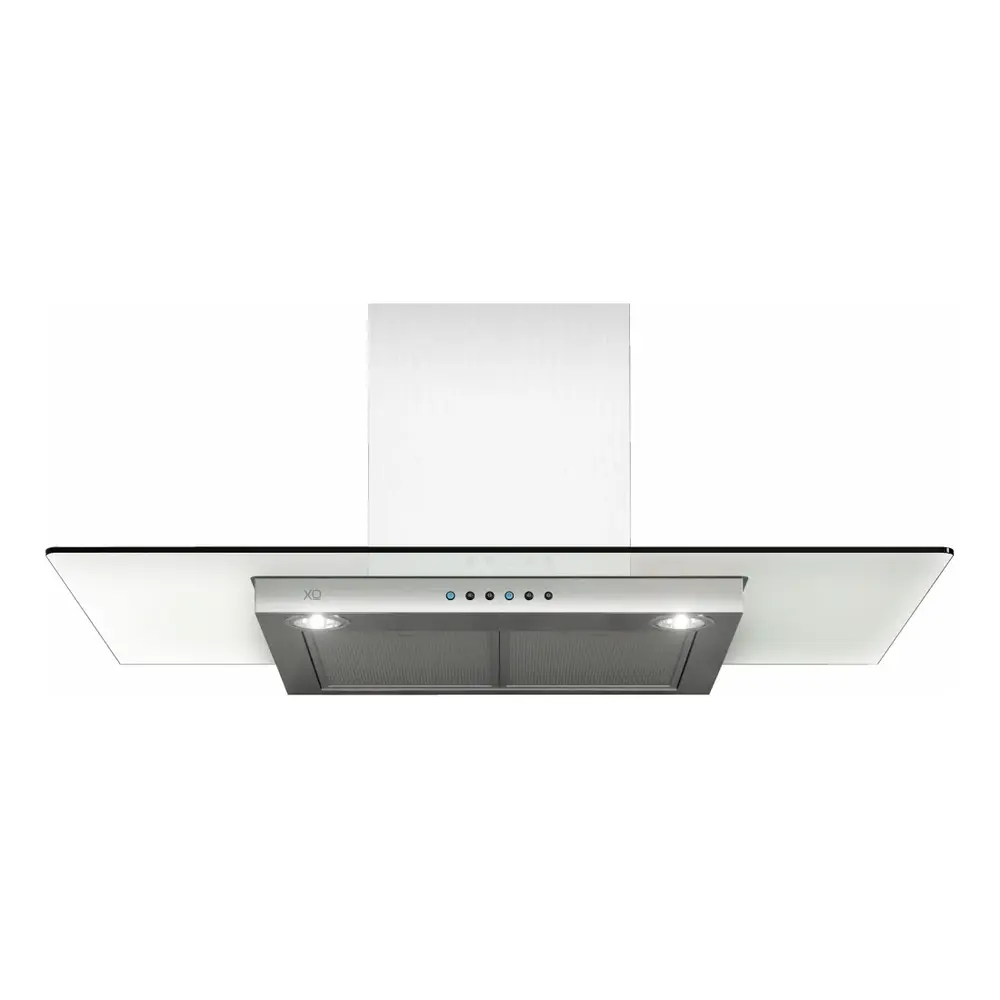

XOQ Wall Mount Hood
The XOQ is a striking fusion of Italian stainless steel and glass. The flat surface easily aligns with shelving to provide a visually seamless appearance permitting the XOQ to conform with your design while making its own elegant statement.
Code Compliance Control
Enables the installer to re-program the hood as it is being installed. Your XO Hood is set to operate at 600 CFM maximum at the factory. Re-programming is accomplished quickly and requires no special tools or additional parts but once done, the air flow rate is limited to a maximum of 395 CFM below the 400 CFM cap that most local codes impose eliminating the need for additional controls. Re-programming also disables the Power Boost function. After conversion, the installer affixes a label stating unit has been converted to 395 CFM max. Once done, the unit cannot be changed back.
Controls

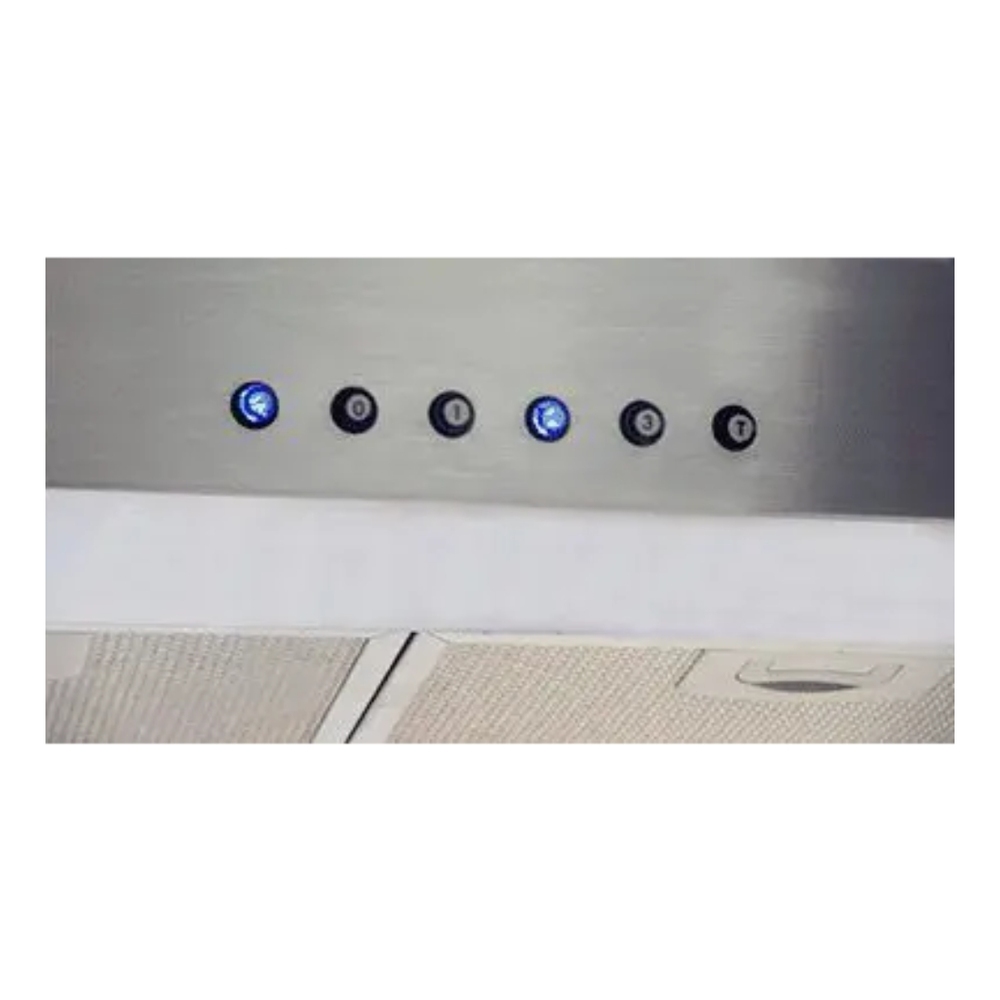

Electronic 3 Speed Control + Power Boost
LED Lighting
High Efficiency 3000K LED lights (x2)
Standard Chimney
Fits ceilings up to 9’ tall
Filters
Dishwasher Safe Aluminum Mesh Filter
Ducting
6” Vertical Duct or Recirculating (Kit Sold Separately)
(Recirculated air must be returned to the living space)
Delay Off
5 Minute Delay Shutoff Timer
Additional Features:
- Mounting Height from cooking surface 27″ – 32″
- UL Listed
- Made In Italy
Specifications | |
| Brand | XO |
| Appliance Category | Hood |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 30" |
| Width | 30" |
| Depth | 19 11/16" |
| Height | 43 11/16" |
| Minimum Duct Cover Height | 25 13/16" |
Style | |
| Style | Chimney Style |
| Type | Hood |
| Mounting Type | Wall Mount |
| Glass Canopy | Yes |
| Fan | Yes |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 115 |
| Amps | 3.6 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Duct Location | Top |
| Frequency | 60 Hz. |
Certifications | |
| ADA Compliant | No |
| Energy Star | No |
| UL Listed | Yes |
Warranty | |
| Warranty | 2 Year Parts and Labor |
Features | |
| Convertible Ducting | Yes |
| CFM | 600 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Adjustable Duct Cover | Yes |
| Light Bulb Type | LED |
| Delay Turn Off | Yes |
| Number of Fan Speeds | 4 |
| Light | Yes |
| Recirculating Kit | Sold Separately |
