- Color: Stainless Steel
- Width: 34 3/8"
- Height: 12"
- Depth: 19 1/4"
- Type: Cabinet Insert
- CFM: 1000
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Ducted
- Delay Turn Off: Yes
- ADA Compliant: Optional Remote Controller
- Voltage: 115
- Amps: 3.6
- Warranty: 2 Year Parts and Labor
XO XOIL3619KSE 36 inch Range Hood Insert with Code Compliance Control, LED Lighting, Stainless Steel PRO Baffle Filter, in Stainless Steel (1000)
Top Quality Store on GoogleAvailability: In Stock
Availability: In Stock
Availability: In Stock
- Color: Stainless Steel
- Width: 34 3/8"
- Height: 12"
- Depth: 19 1/4"
- Type: Cabinet Insert
- CFM: 1000
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Ducted
- Delay Turn Off: Yes
- ADA Compliant: Optional Remote Controller
- Voltage: 115
- Amps: 3.6
- Warranty: 2 Year Parts and Labor
The XOIL3619 36″ Range Hood Insert from XO is designed for both functionality and style. It includes Code Compliance Control, enabling you to easily adjust the airflow, ensuring optimal ventilation for your kitchen. Additionally, this range hood is equipped with energy-efficient LED lighting that illuminates your cooking area, making meal preparation easier. The stainless steel baffle filters are not only durable but also effective in capturing grease and odors, contributing to a cleaner kitchen environment. For added convenience, the delay shutoff feature allows the hood to continue running for a set period after cooking, ensuring that all lingering smoke and odors are effectively removed. This range hood combines advanced technology with practical features, making it an excellent choice for any modern kitchen.

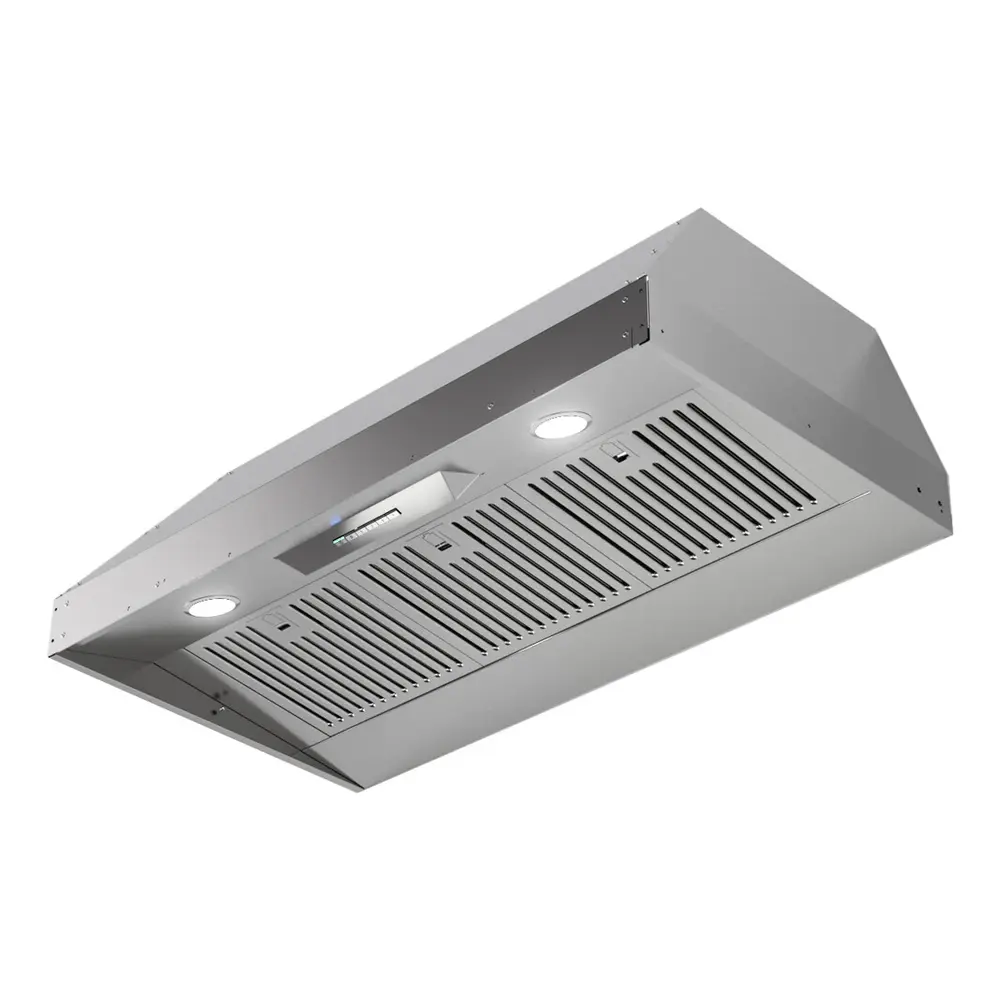

XOIL Insert

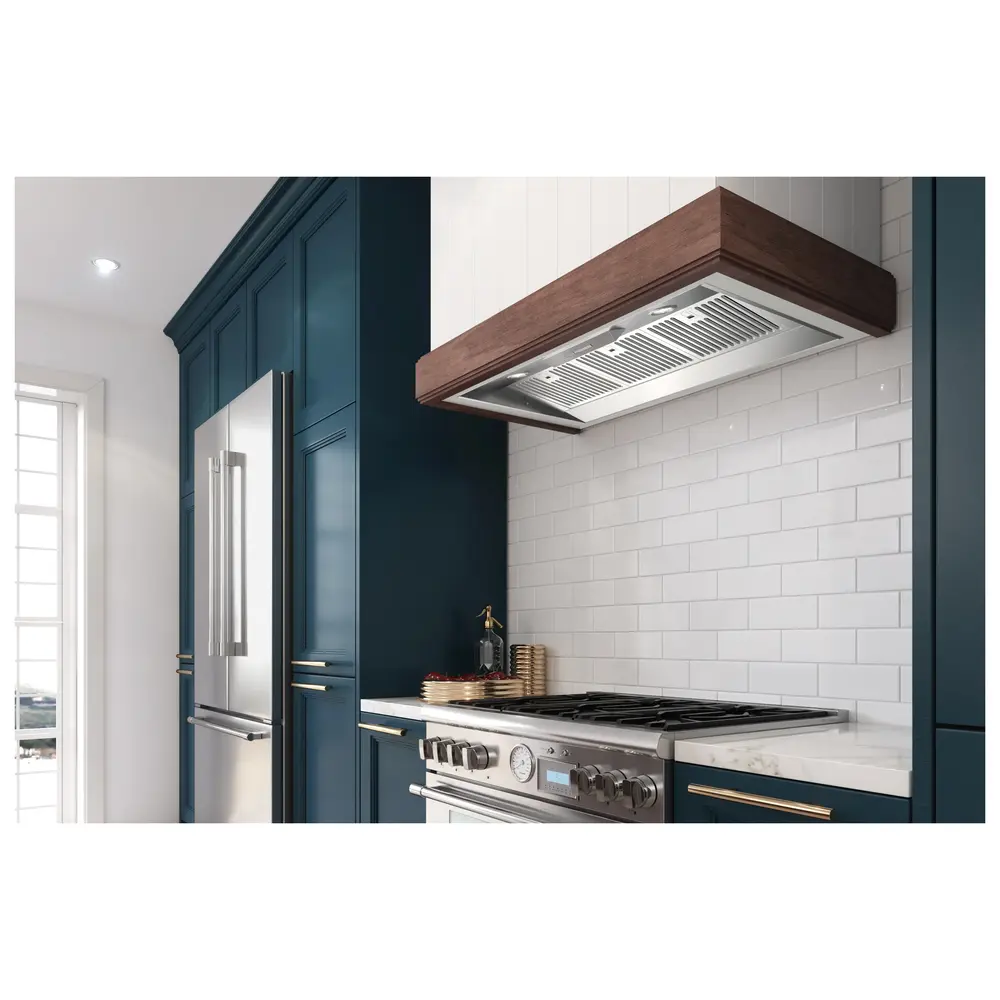

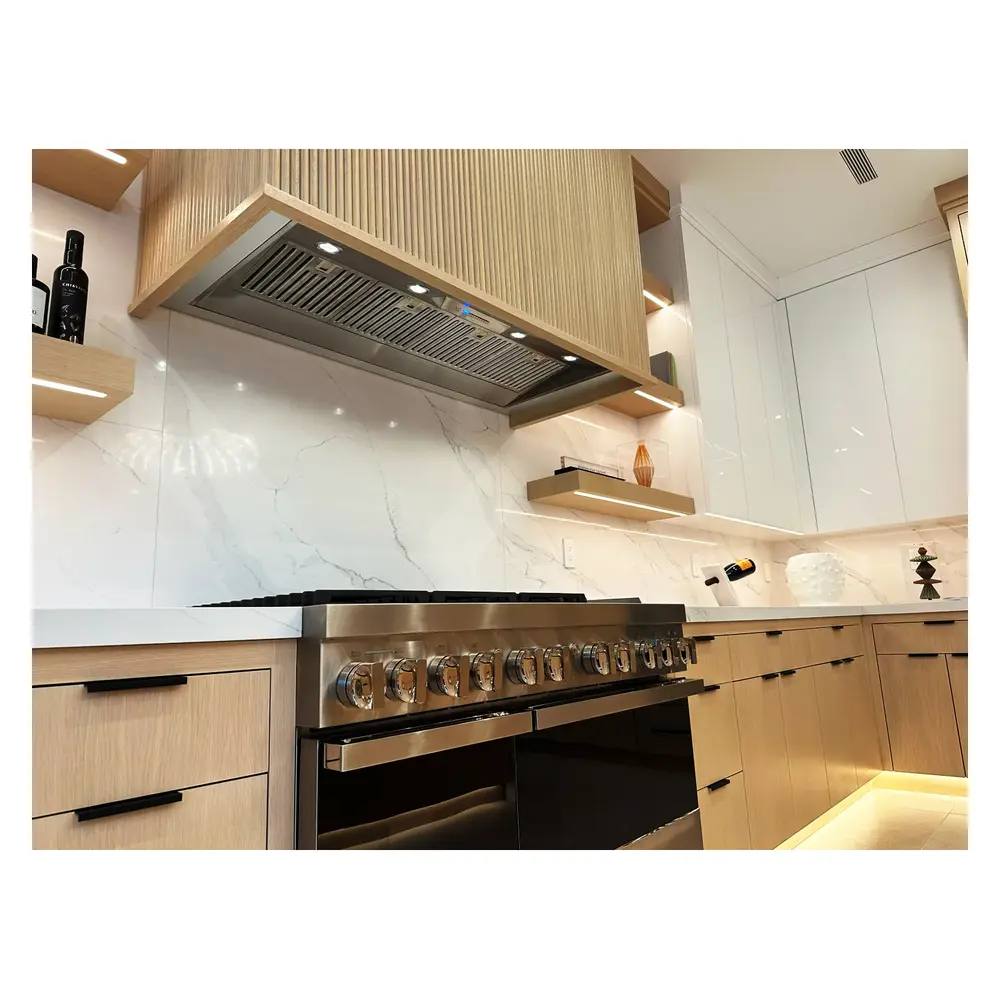

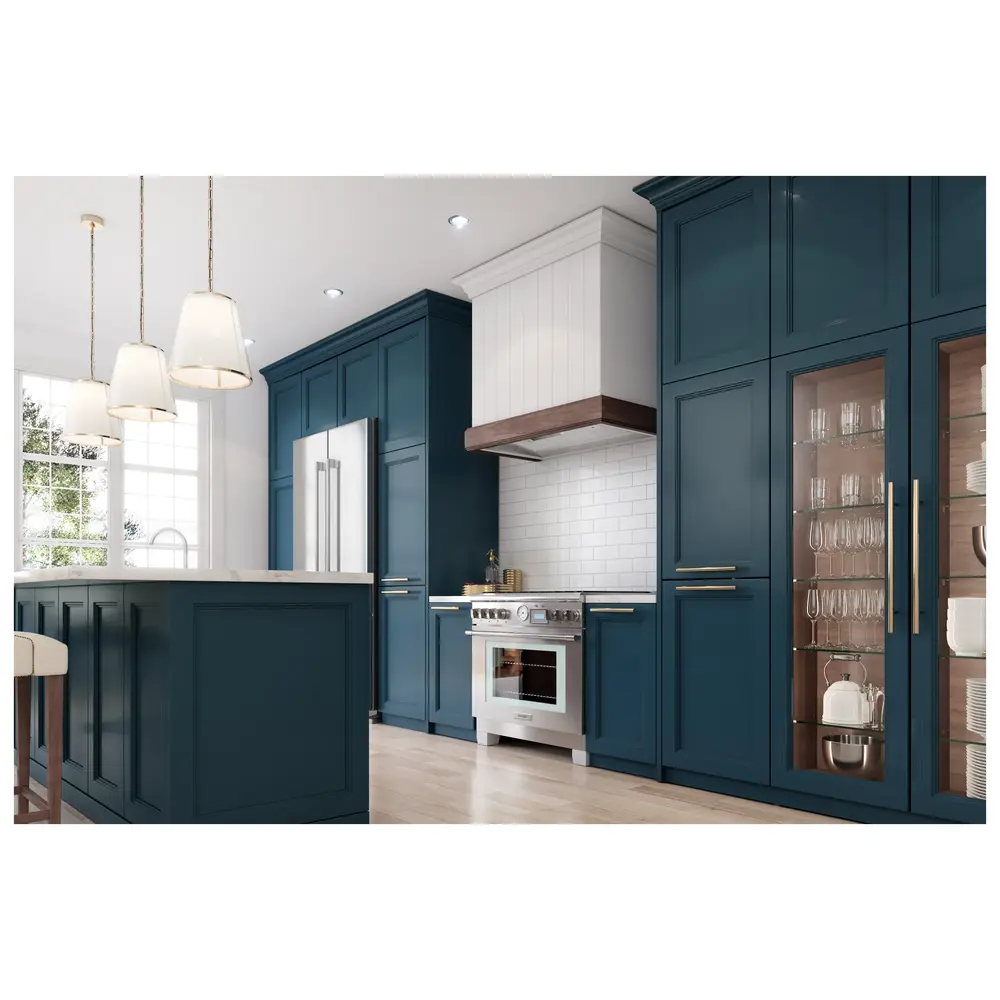

The XOIL series are designed as all-in-one blower / liner combination units for easy installation into custom hoods. Each XOIL model is designed and crafted in Italy to incorporate a multi-speed blower, controls, filtration, LED Lamps and back flow damper. The XOIL is everything you need in one easy to install package.
Code Compliance Control
Enables the installer to re-program the hood as it is being installed. Re-programming is accomplished quickly and requires no special tools or additional parts but once done, the air flow rate is limited to a maximum of 395 CFM below the 400 CFM cap that most local codes impose eliminating the need for additional controls. Re-programming also disables the Power Boost function. After conversion, the installer affixes a label stating unit has been converted to 395 CFM max. *Once done, the unit cannot be changed back.

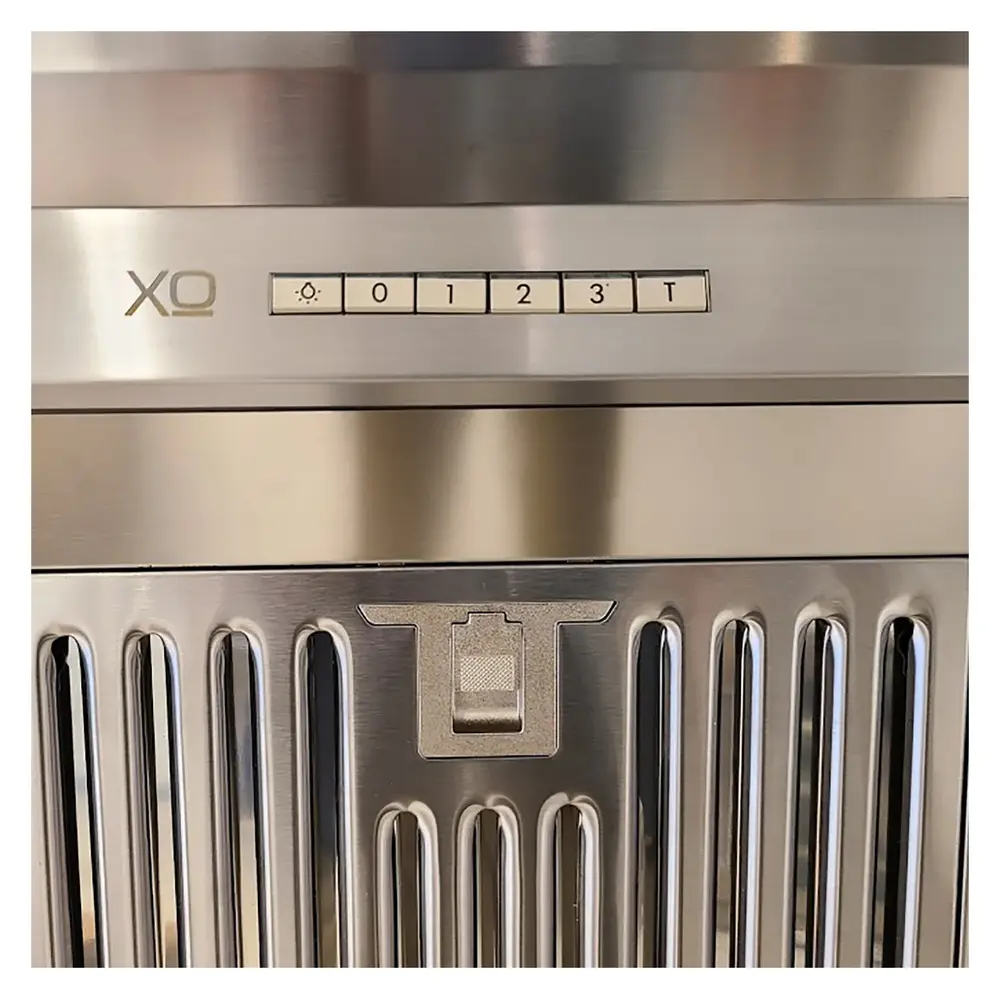

Controls
Electronic 3 Speed Control + Power Boost

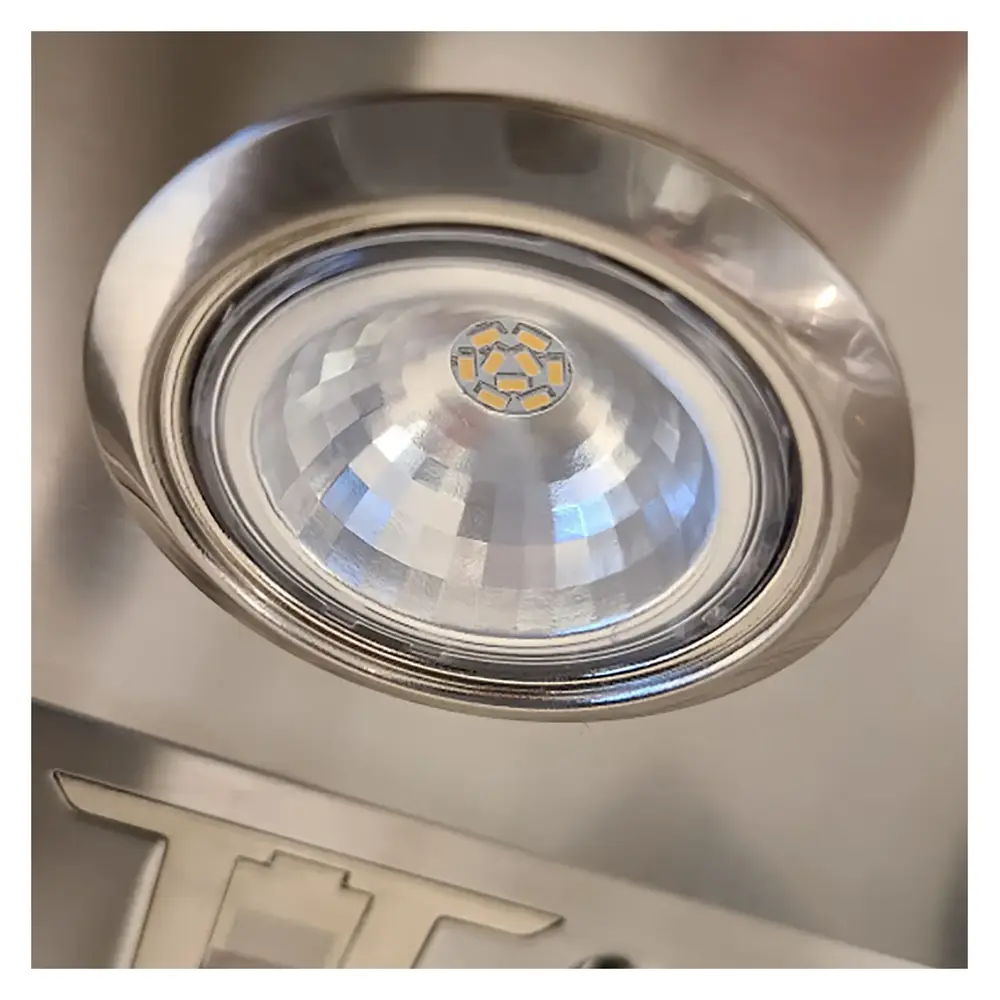

LED Lighting
High Efficiency 3000K LED lights (x2)

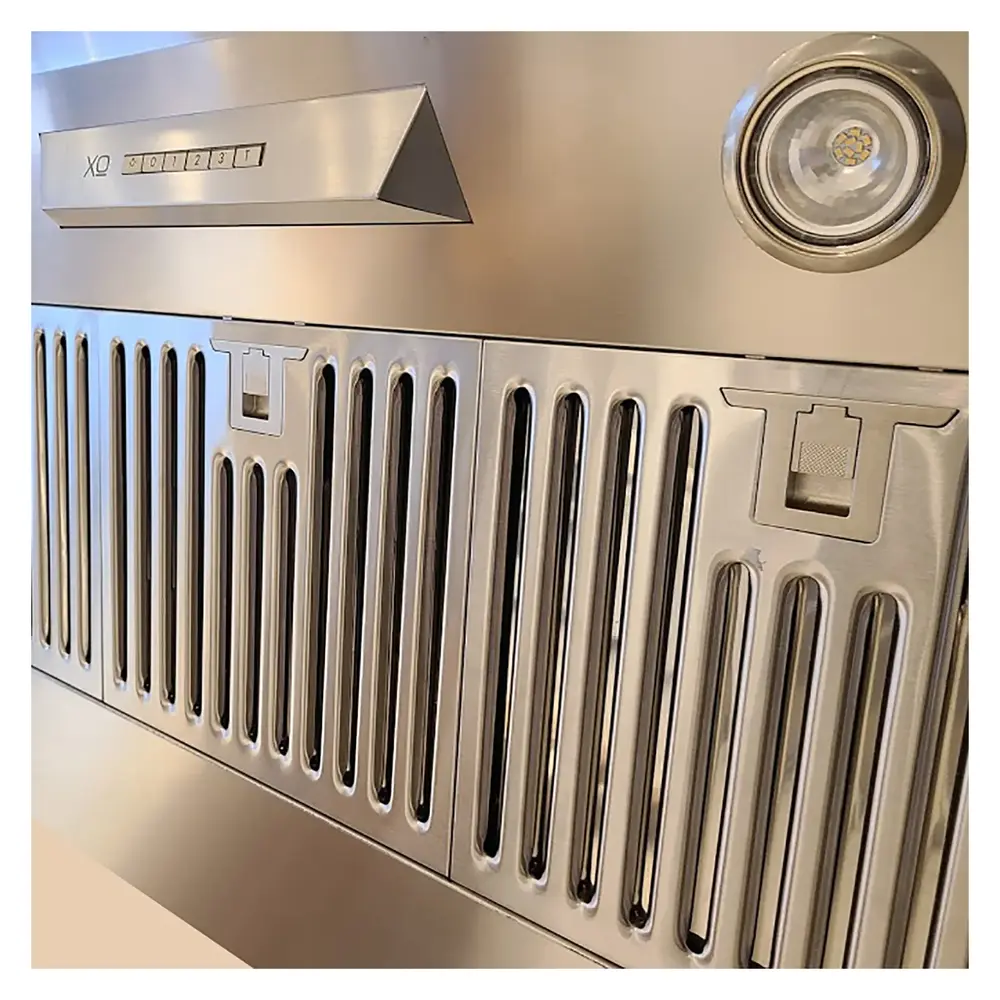

Filters
Dishwasher safe SS PRO Baffle filters
Ducting
6” Vertical Duct or Recirculating (Kit Sold Separately)
(Recirculated air must be returned to the living space)
Delay Off
5 Minute Delay Shutoff Timer
Additional Features:
- Combination Blower and SS Liner in One
- Optional ADA Compatible Remote
- Mounting Height from cooking surface 27″ – 32″
- UL Listed
- Made In Italy
Specifications | |
| Brand | XO |
| Appliance Category | Hood |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 36" |
| Width | 34 3/8" |
| Depth | 19 1/4" |
| Height | 12" |
Style | |
| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 115 |
| Amps | 3.6 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 8" |
| Duct Location | Top or Rear |
| Frequency | 60 Hz. |
Certifications | |
| ADA Compliant | Optional Remote Controller |
| Energy Star | No |
| UL Listed | Yes |
Warranty | |
| Warranty | 2 Year Parts and Labor |
Features | |
| Convertible Ducting | No |
| CFM | 1000 |
| Filter Type | Baffle |
| Venting Type | Ducted |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Delay Turn Off | Yes |
| Number of Fan Speeds | 3 |
| Light | Yes |
| Remote Controller | Optional |
| Recirculating Kit | No |
| Brand | XO |
|---|---|
| Appliance Category | Hood |
|
Appearance |
|
| Color | Stainless Steel |
| Color Family | Stainless Steel |
|
Dimensions |
|
| Exterior Width | 36" |
| Width | 34 3/8" |
| Depth | 19 1/4" |
| Height | 12" |
|
Style |
|
| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
|
Smart Features |
|
| Smart Appliance | No |
| Wi-Fi | No |
|
Technical Details |
|
| Voltage | 115 |
| Amps | 3.6 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 8" |
| Duct Location | Top or Rear |
| Frequency | 60 Hz. |
|
Certifications |
|
| ADA Compliant | Optional Remote Controller |
| Energy Star | No |
| UL Listed | Yes |
|
Warranty |
|
| Warranty | 2 Year Parts and Labor |
|
Features |
|
| Convertible Ducting | No |
| CFM | 1000 |
| Filter Type | Baffle |
| Venting Type | Ducted |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Delay Turn Off | Yes |
| Number of Fan Speeds | 3 |
| Light | Yes |
| Remote Controller | Optional |
| Recirculating Kit | No |
