Summit CR4B23T5B 24 inch Electric Cooktop with 4 Elements, Schott Glass Surface, 9 Power Levels, Timer and Child Lock (Black)

CR4B23T5B
was $680.00$131 Off
$549.00
or $45.75/mo.* for 12 monthsLearn More
Google ShoppingTop Quality Store on Google
Loading product options...

Product Details

Appearance

Color Family:Black
Color:Black

Dimensions

Cutout Depth:19 1/2"
Exterior Width:24"
Width:23 1/4"
Depth:20 1/2"
Height:2"
Cutout Width:22"
Cutout Height:3 1/5"

Technical Details

Induction:No
Highest Element Output:2200 Watts
Griddle:No
French Top:No
Light:Yes
Grill:No
Burner/Element Output N2:1200 Watts
Burner/Element Output N3:2200 Watts
Burner/Element Output N4:1200 Watts
Hot Surface Indicator Light:Yes
Pan Presence Sensor:No
Portable:No
ETL Listed:Yes
ADA Compliant:Yes
Control Location:Front
Sabbath Mode:No
Number Of Burners/Elements:4
Voltage:230
Burner/Element Output N1:1800 Watts
Amps:30
Timer:Yes
Brand:Summit

Style

Fuel Type:Electric
Type:Cooktop
Burner/Element Type:Radiant Element
Control Type:Digital

Features:

Schott Glass Surface
Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish

Extra Large 2200W Burner
Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed

Large 1800W Burner
Burner located on the front left corner is 7" in diameter to handle larger cooking vessels

2 Standard 1200W Burners
Front right and rear left burners are 5.5" in diameter to meet most cooking needs

Dual Cooking Zone
Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

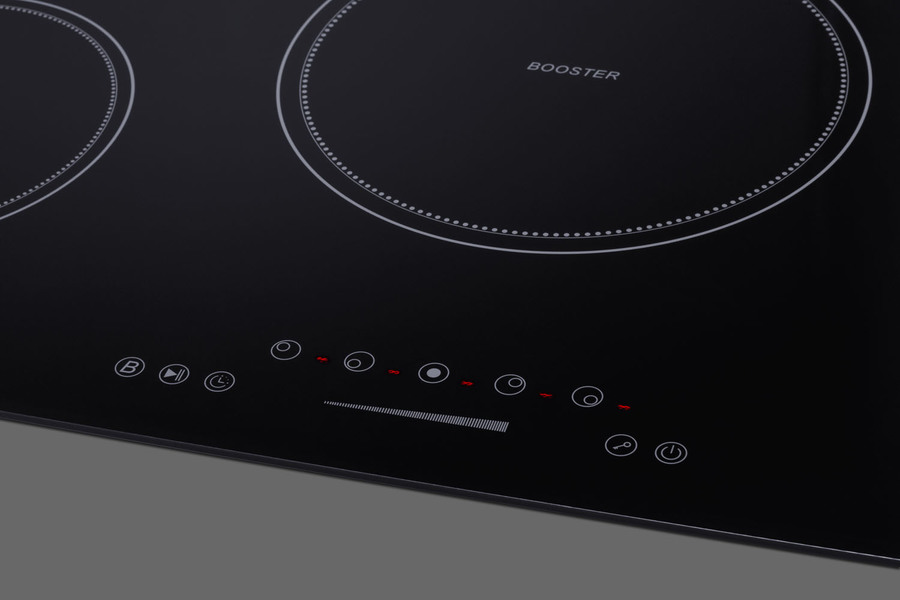

Digital Touch Controls
Easy operation with a digital control panel and digital display

9 Power Levels
Select and adjust your heating levels at the touch of a button

Timer
Allows you to program either burner to heat at a specified level for up to 99 minutes

Residual Heat Indicator Lights
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for Built-In Installation
Fits counter cutout sizes that are 22" wide by 19.5" deep

ADA Compliant Design
Upfront controls meet ADA guidelines for easier accessibility

Child Lock
Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety Cut-Off Function
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic Shutoff
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

230V Operation
Requires professional hardwired installation to 230V power supply

1 Year Parts & Labor Warranty

Key Features

Residual Heat Indicator Light
Residual Heat Indicator Light
Indicator shows when the surface is still hot to touch
Schott Ceran Surface
Smooth ceramic glass cooking surface in a sleek finish
Schott Ceran Surface
