Steel AQY12SF4TMNAO 48 inch Ascot Series Rustico Style Dual Fuel Range with 5 Burners, Griddle, 4.6 cu. ft. Total Oven Capacity and INNVENT System (Nuvola)

AQY12SF4TMNAO
1 / 9
was $17,599.00$1600 Off
$15,999.00
or $1333.25/mo.* for 12 monthsLearn More
Loading product options...

RECOMMENDED ACCESSORIES

Product Details

Appearance

Color Family:White
Color:Nuvola

Dimensions

Exterior Width:48"
Width:46 1/8"
Height:35 7/16"
Depth:24 9/16"
Interior Width:23 13/16"
Interior Height:13 25/32"
Interior Depth:16 59/64"
Secondary Interior Width:10 15/64"
Secondary Interior Height:13 25/64"
Secondary Interior Depth:16 59/64"

Technical Details

Brand:Steel
Appliance Category:Range
Series:Ascot
Smart Appliance:No
Wi/Fi:No
Oven Total Capacity Cu Ft:4.6
Convection:Yes
Griddle:Yes
Grill:No
French Top:No
Number Of Ovens:Double Oven
Drawer:None
Air Fry:No
Highest Burner Output:17000 BTU
Burner/Element Output N1:4200 BTU
Burner/Element Output N2:7500 BTU
Burner/Element Output N3:11500 BTU
Burner/Element Output N4:13500 BTU
Burner/Element Output N5:17000 BTU
LP Convertible:Yes
Gas Conversion Kit Included:Yes
Steam Oven:Yes
Trim:Brass
Number Of Burners/Elements:5
Griddle Output:2400 Watts
Voltage:240
Amps:35
Control Location:Front
Fingerprint Resistant:No
Main Oven Capacity Cu Ft:3.2
Second Oven Capacity Cu Ft:1.4

Style

Oven Control Type:Touchpad and Knobs
Cooktop Control Type:Knobs
Style:Freestanding
Fuel Type:Dual Fuel
Gas Type:Natural Gas
Burner/Element Type:Sealed Burner
Pro/Style:No
Oven Cleaning Type:Manual Clean
Design Style:Retro Style

Ascot

Elegance comes in many forms. When we were kids, being told to fix the collar of our shirt, sit straight, or tie our shoes seemed like minor matters. Yet now, we might be the ones teaching these little things to our children. We've come to recognize elegance in the small details. Can a range be elegant? An Ascot range can, indeed. With sinuous shapes, intense colors, and classic beauty—somewhat British—reinterpreted in a modern and refined design, Ascot embodies elegance. Looking at a range like this, we may recall the smell of the freshly baked tart your grandma used to prepare for the whole family. Our memories are important, and we collect them every day. Let's do it in the best way we can. Ascot is already history.

Double Ring Burner

Powerful 17,000 BTU double ring burner speeds cooking time

Electric Frytop

Electric frytop dual zone, 2 X 1200 W

Combi-Steam

Combi-Steam to bake as you’ve always cooked, in shorter time, with less energy consumption, with better results

Oven Liners

Removable, dishwasher safe, stainless steel oven liners

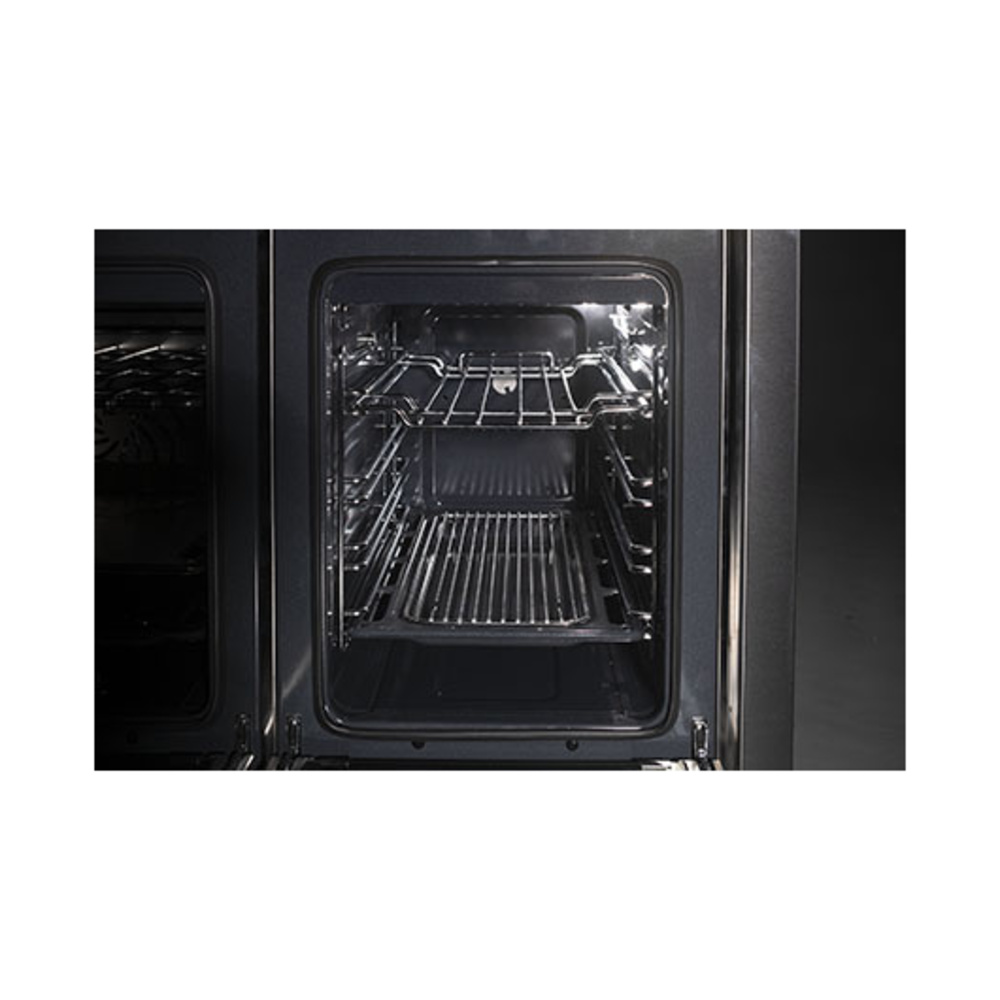

Full Extension Telescopic Rack Rails

Full extension telescopic rack rails for easy access to the oven cavity

Soft Closing Hinges

Soft closing hinges softly guide the door shut so the oven door never slams

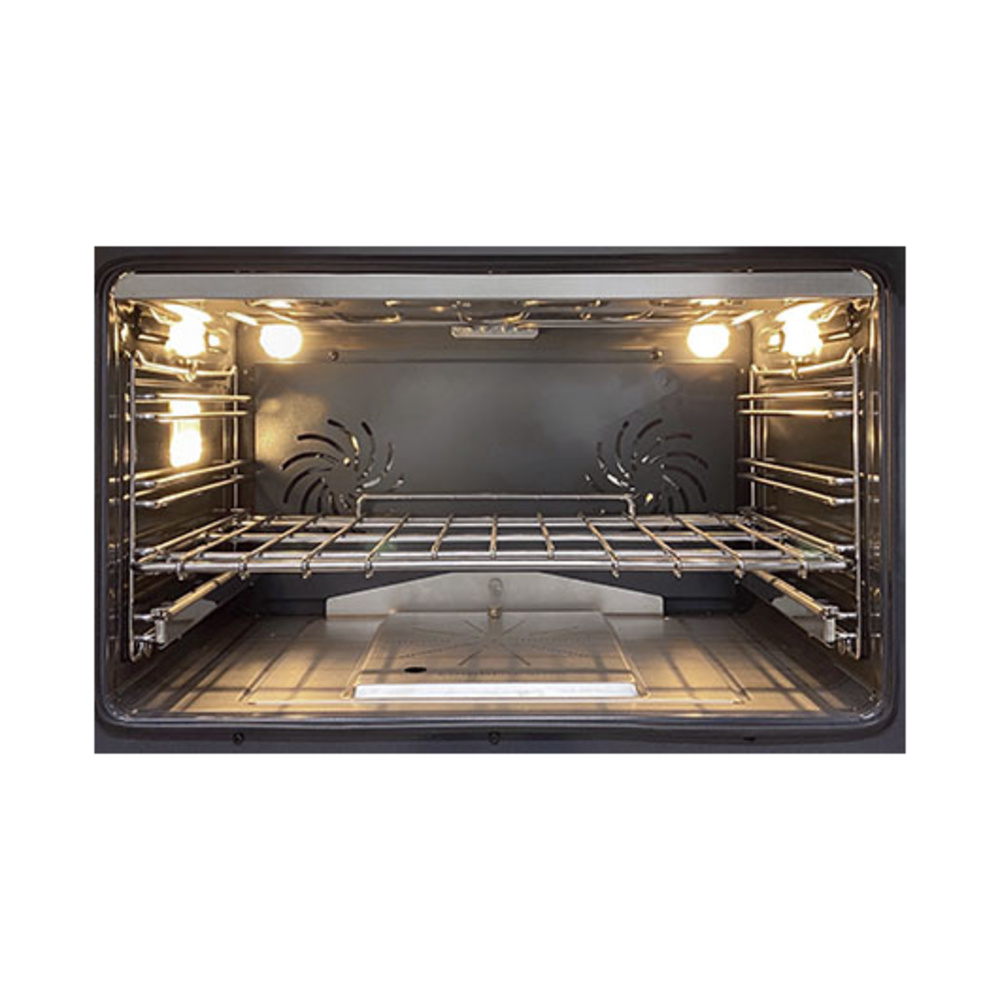

INNVENT System

Steel's patented INNVENT system with double inverted rotation of the fans distributes heat evenly throughout the oven’s cavity, not only vertically on different levels, but also horizontally on each level, allowing impeccable and homogeneous cooking. Your oven door can remain closed all the cooking time, because you won’t have the need to rotate the tray halfway.

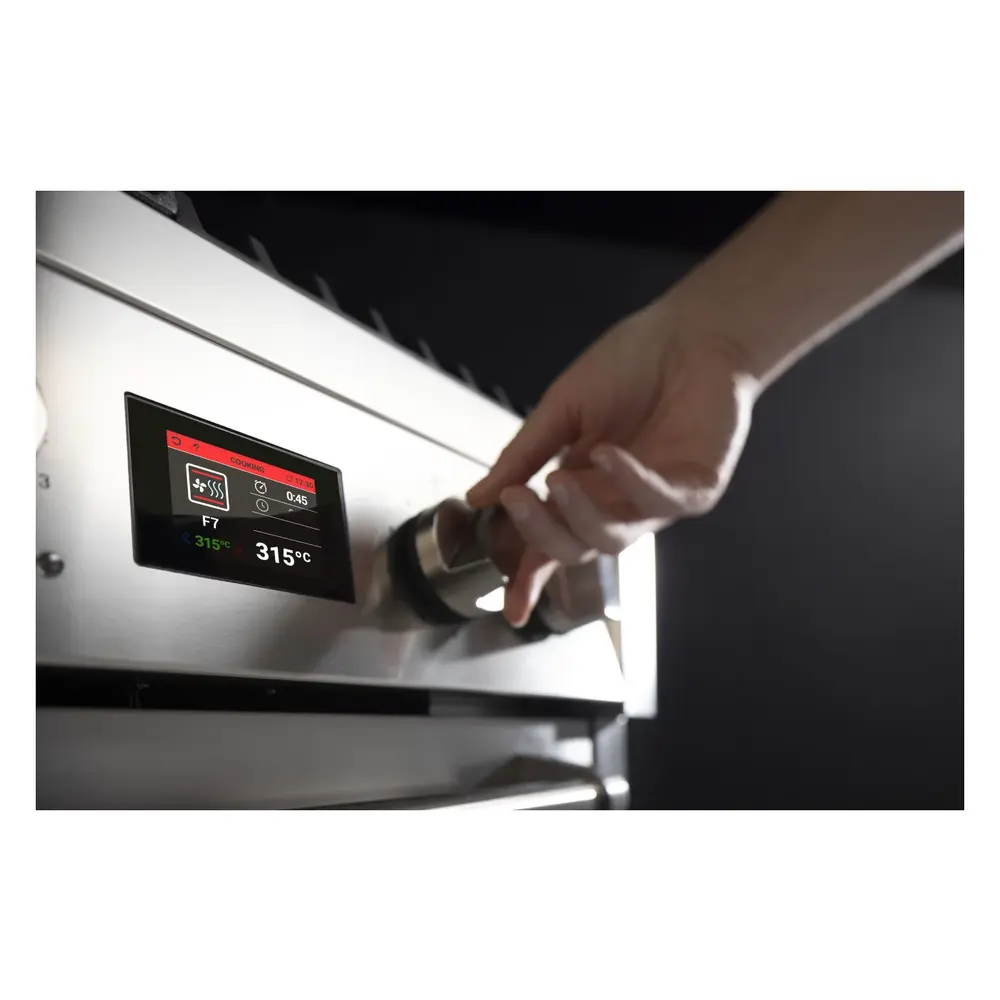

TFT Programmer

TFT programmer. 11 cooking functions - 34 pre set recipes - eco mode - Sabbath mode - traditional and fan assisted steam

Cooktop Features:

  • TOTAL COOKING ZONES 7 (5 burners + dual frytop)
  • TOTAL COOK TOP (NG/LP) BTU 53700 / 41800
  • SIMMER (NG/LP) BTU 4200 / 3000
  • SEMI-RAPID (NG/LP) BTU 7500 / 5600
  • RAPID (NG/LP) BTU 11500 / 9500
  • WOK (NG/LP) BTU 13500/10600
  • MEGA-WOK (NG/LP) BTU 17000 / 13100
  • FRYTOP 2 X 1200 W

Main Oven Features:

  • BAKE/BROIL ELEMENT WATTS 1000 + 2800 W
  • CONVECTION ELEMENT WATTS 2500 W
  • LOWER ELEMENT WATTS 1400 W
  • OVEN VOLUME 3.2 cubic feet

Second Oven Features:

  • BAKE/BROIL ELEMENT WATTS 1200 + 500 W
  • LOWER ELEMENT WATTS 900 W
  • OVEN VOLUME 1.4 cubic feet

Key Features

Sealed Burners
Sealed Burners
Keeps spills and crumbs contained so cleaning is always quick and easy

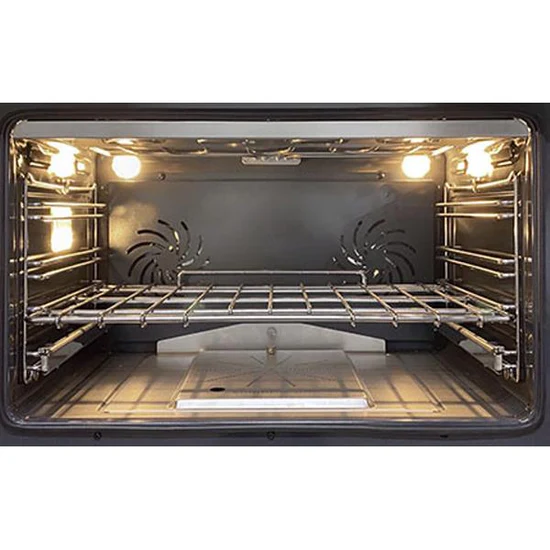

Innvent System
Steel's patented INNVENT system with double inverted rotation of the fans distributes heat evenly throughout the oven’s cavity, not only vertically on different levels, but also horizontally on each level, allowing impeccable and homogeneous cooking. Your oven door can remain closed all the cooking time, because you won’t have the need to rotate the tray halfway.
Innvent System
