Features:
Motor
Motor on board or external motor (not included, to be purchased separately)
Lighting
1x5W Led strip (36-48″ version)

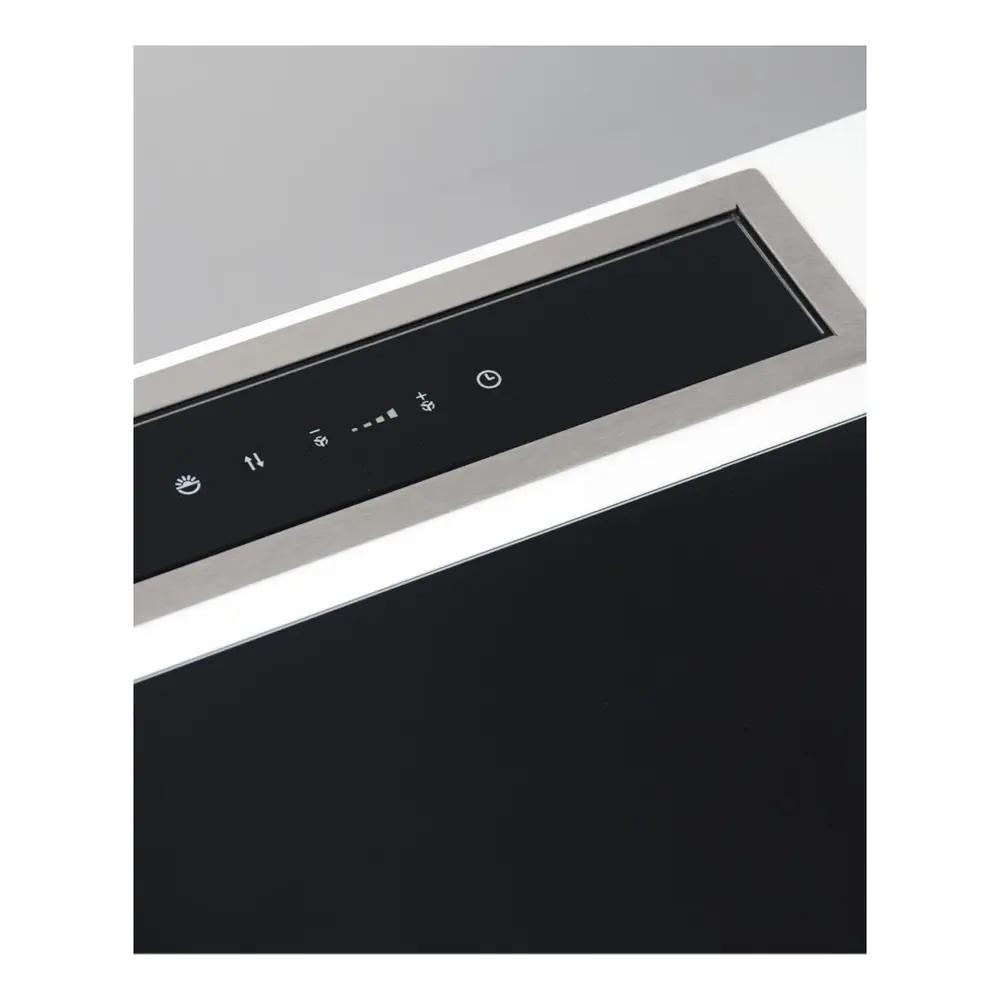

Control Panel
Touch control 4 speeds+delay off timer+light switch
Grease filter
Anodized aluminum (5 layers)
Air Outlet
6″ round (front and back) or rectangular 9″11/16×3″5/32 (sides and below)
Specifications | |
| Brand | Sirius |
Appearance | |
| Color | Stainless Steel with Black Glass |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 36" |
| Width | 34 7/16" |
| Depth | 4 23/32" |
| Height | 29 1/8" |
| Vertical Rise | 11 13/16" |
Style | |

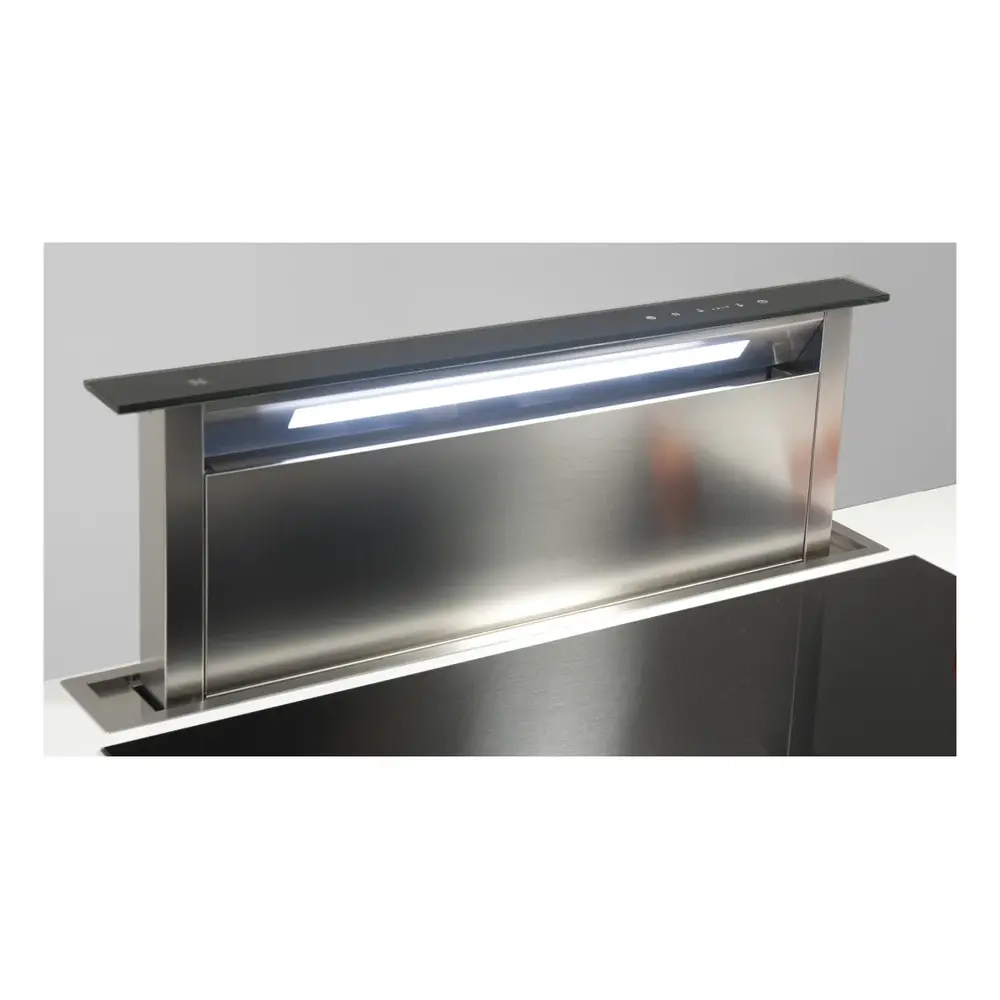

| Type | Hood |
| Mounting Type | Downdraft |
| Glass Canopy | No |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Both |
| Number of Light Bulbs | 1 |
| Duct Diameter | 6" |
| Duct Length | 3 5/32" |
| Duct Width | 9 11/16" |
| Frequency | 60 Hz. |
Features | |
| CFM | 1200 |
| Filter Type | Mesh |
| Venting Type | Ducted |
| Blower Type | Blower Not Included |
| Light Bulb Type | LED |
| Number of Fan Speeds | 4 |
| Light | Yes |
