Pudu 10220000006 SH1 Smart Upright Scrubber Dryer with Air-Liquid-Debris Separation, Multidimensional Cleaning


Product Details
Appearance
Dimensions
Technical Details
PUDU SH1 Smart Upright Scrubber Dryer
PUDU SH1 is a professional miniature upright scrub and dry cleaner designed by PUDU Robotics, it is for small and medium-sized complex scenes and suitable for cleaning most hard floors. SH1 works with washing, brushing, and vacuum. Its simultaneous washing and drying design have promoted the cleaning procedure, and the ultra-high-speed high-pressure disc brush provides significant cleaning performance. while intelligent sensors and smart app design to enhance the level
of digital monitor of cleaning, builds a new intelligent cleaning era using tech.
Leave no mess behind
Compared to a conventional mop, SH1 saves 80% on water and cleaning agent usage and reduces cleaning time by 70%. Powerful high-pressure, high-frequency cleaning quickly dissolves even the toughest stains, instantly restoring the floor to pristine condition.
Instant Scrub-and-dry Capability
The powerful brushless motor and squeegee dry the floor quickly and efficiently, avoiding secondary pollution and delivering a great cleaning result.
Air-Liquid-Debris Separation
The PUDU SH1 features a first-to-market wastewater tank with an air-solid-liquid separation system[*], effortlessly separating gases, liquids, and solid particles, facilitating a smooth disposal process for both wet and dry refuse, and eliminating the risk of drain blockages.

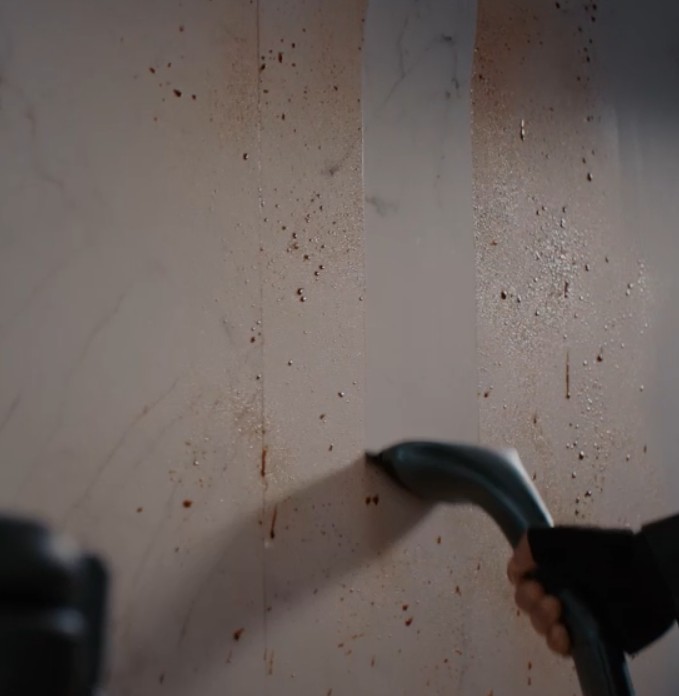

Vertical Surface Cleaning
Equipped with innovative accessories, the PUDU SH1 excels at cleaning vertical surfaces, effectively removing grime from glass display cases, tiled walls, mirrors, and windows with ease and precision.
Dead Zone Cleaning
Equipped with specialized attachments, the PUDU SH1 extends its cleaning capabilities effortlessly, ensuring even the most hard-to-reach areas are left spotless.
Horizontal Surface Cleaning

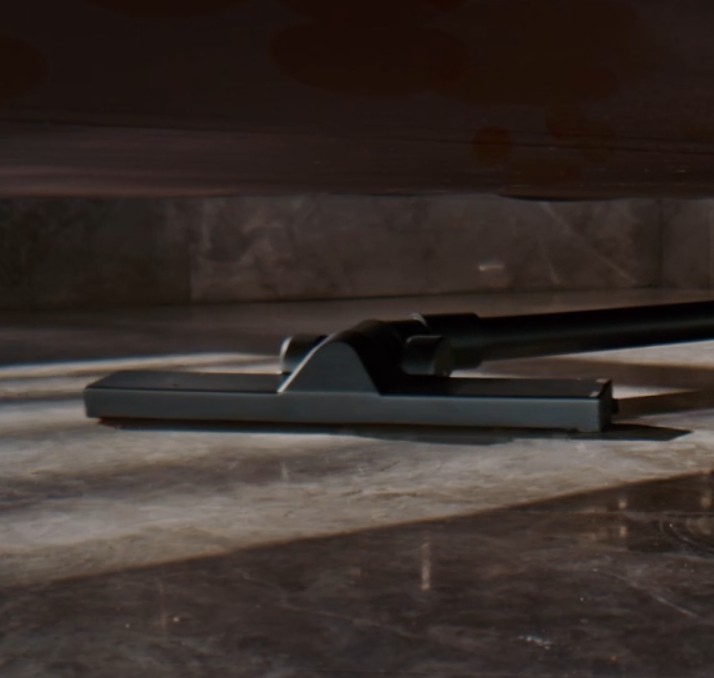

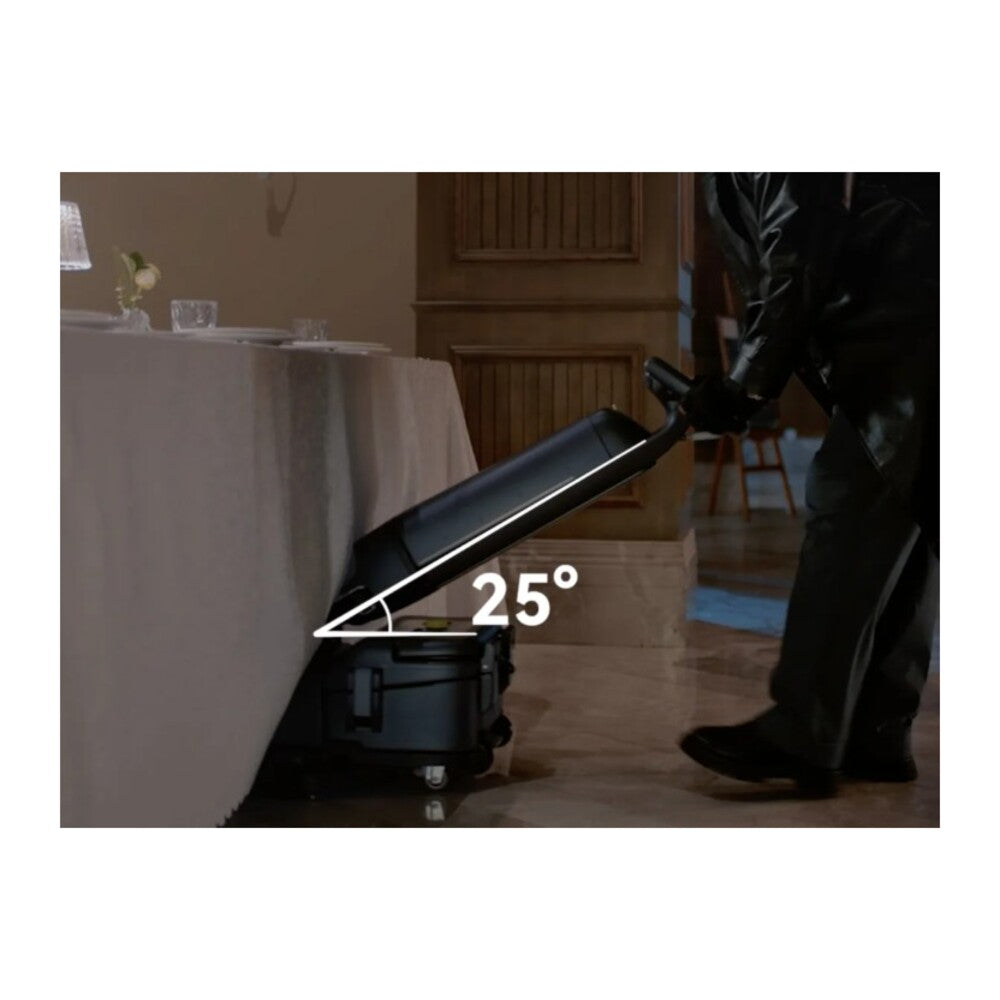

Low-Profile Spaces Cleaning
360° Surround Cleaning
Edge Cleaning
Multiple Cleaning Modes
Touch Screen Interface
- Component Monitoring
- Consumable Monitoring
- On-Screen Training
PUDU Cleaning Report
Receive post-cleaning notifications that offer insights into your cleaning session. You'll get detailed reports on the duration of cleaning, water usage, and the area cleaned, giving you a comprehensive overview of your cleaning performance after the job is done.
Modular Design
The quick-release design of PUDU SH1 simplifies the cleaning and maintenance process. Scrubbing brushes, squeegees, water tanks, and batteries are all designed for easy removal and reattachment, allowing for hassle-free servicing and efficient turnaround.
Specifications | Description |
Product dimensions (L x W x H) |
Vertical State:49*53*120 cm (19.29*20.87*47.24 inches) |
Store Position:49*35*127 cm (19.29*13.78*50.00 inches) | |
Product weight | 27 kg (59.52 pounds) |
Operating voltage | DC 22–29.4 V |
Power input | AC 100 V–240 V,50/60 Hz |
Power output | 29.4 V, 8 A |
Battery capacity | 18 Ah |
Battery Life | 2.5 h |
Operation time of batteries | Normal Mode: 70 mins |
ECO Mode: 100 mins | |
Rated power | 380 W |
Brush speed | 350 rpm |
Productivity | 1100–1600 m²/ h (11840–17222 ft²/h) |
Working width | 44 cm (17.32 inches) |
Squeegee width | 49 cm (19.29 inches) |
Solution tank capacity | 4 L (1.06 Gal) |
Recovery tank capacity | 4 L (1.06 Gal) |
Noise level (SPL) | Normal Mode: 78 dB(A) |
ECO Mode: 71 dB(A) | |
Charge on the machine | Yes |
Intelligent functions | Touch screen, liquid level detection, Wi-Fi, APP |
IP rating | IPX4 |
