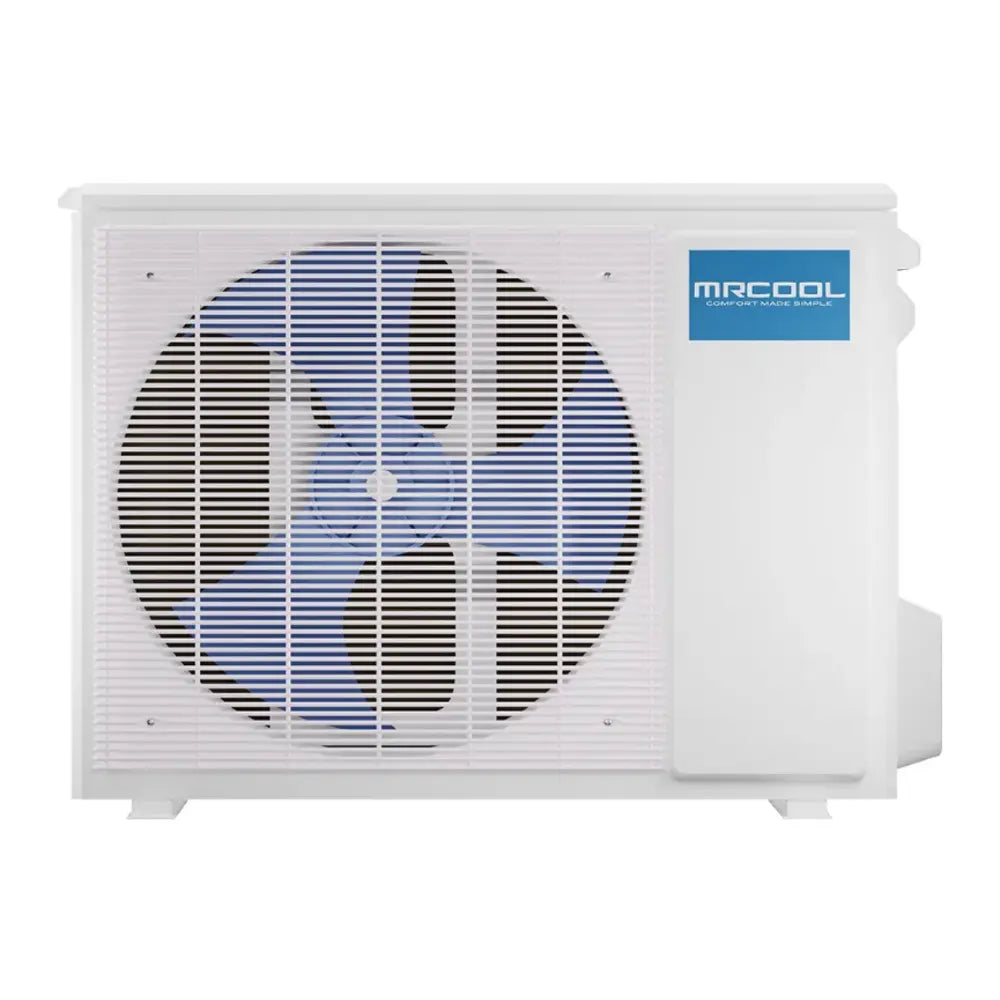

DIY 12k 4th Gen E-Star Condenser – 115v

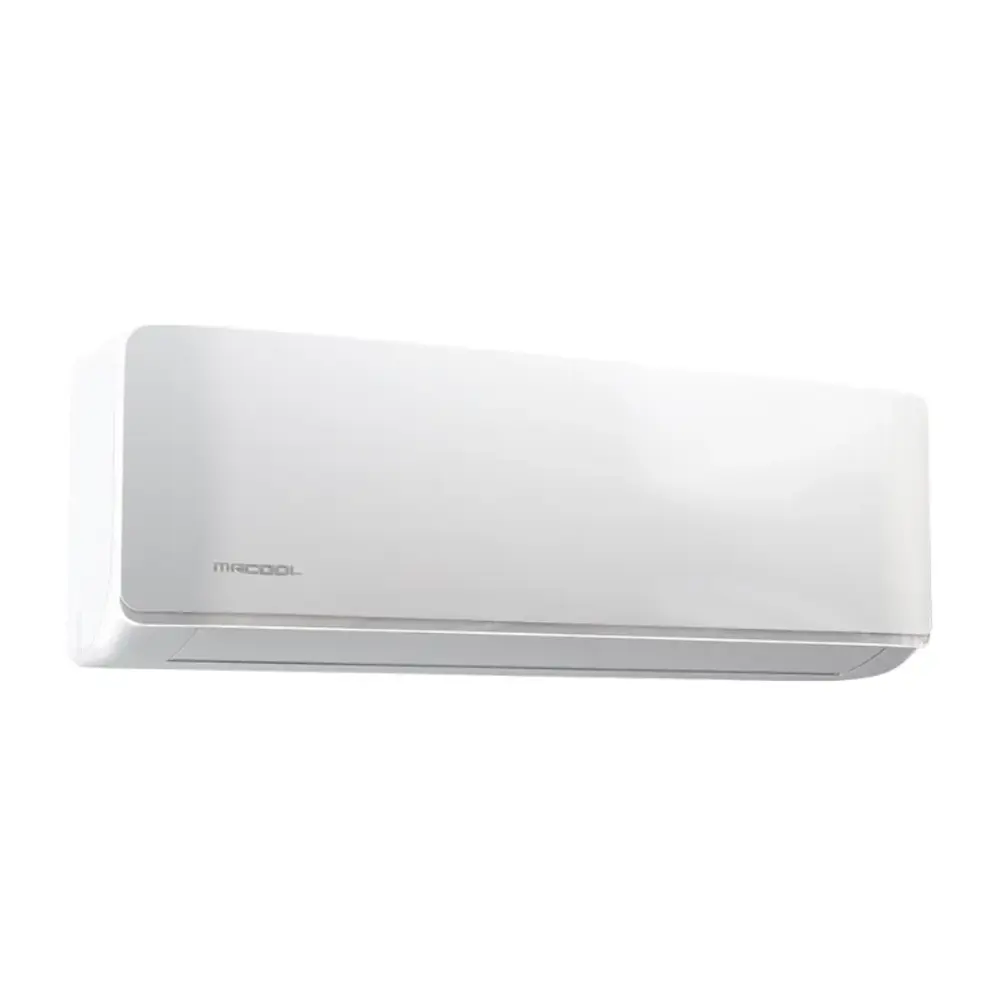

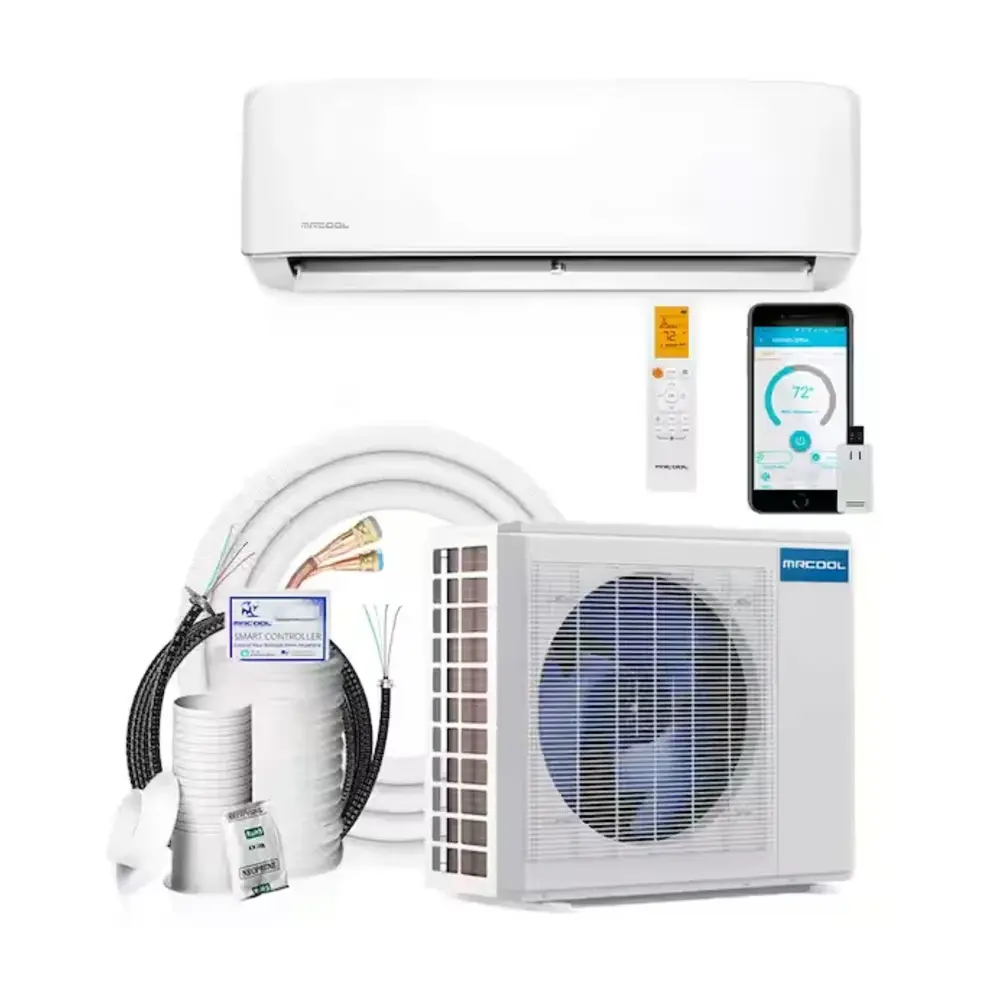

Introducing the latest in home comfort technology: the 4th Generation MRCOOL® DIY 12K BTU, 22 SEER Ductless Heat Pump System. This powerful single-zone system can heat and cool areas up to 500 sq. ft. It comes complete with a 12K condenser, a 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also features quick connectors that require no special tools, equipment, or training for installation. The MRCOOL DIY system includes several features that set it apart from its competitors. One of the most notable is its ability to achieve an outstanding 22 SEER efficiency rating, making it Energy Star certified. This system offers multiple operating modes to suit the user’s needs, including HEAT, COOL, DRY (dehumidification), and SLEEP. Additionally, the Follow Me function adjusts the room temperature based on the reading from the handheld remote control. For added convenience, the DIY system allows you to operate its modes and functions using your smartphone through the Smart HVAC app. Notably, the MRCOOL mini split is the only system on the market that offers a limited lifetime compressor warranty.
Gold Fin® Condenser
Corrosion-resistant design ideal for coastal living, ensuring long-term durability.
Variable-Speed DC Inverter Compressor Technology
Reduces operating costs with enhanced energy efficiency.
R-410A Environmentally Friendly Refrigerant
Eco-friendly cooling solution.
Line Set Size
1/4″ – 1/2″ for efficient refrigerant flow.
Warranty Coverage:
- Standard 7-year compressor warranty
- Standard 5-year parts warranty
- Option to register for a Limited Lifetime Compressor Warranty
Specifications | |
| Brand | MRCOOL |
| Series | DIY |
Appearance | |
| Color Family | White |
Dimensions | |
| Width | 30 3/25" |
| Depth | 11 93/100" |
| Height | 21 17/20" |
Capacity | |
| Nominal BTU Capacity | 12000 |
| SEER | 22 |
| Cooling BTU Capacity | 12000 |
| Heating BTU Capacity | 12000 |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 115 |
| Amps | 25 |
Certifications | |
| Energy Star | Yes |
Warranty | |
| Warranty | 5 Year Limited Parts, 7 Year Compressor |
| Provides Heating | Yes |
| Heat | Heat Pump |
