JENNAIR®
NEXTGEN Induction Downdraft Cooktop
- True Flush Installation Yes
- Fuel Type Magnetic Induction
- Automatic Pan Detection Yes
- Automatic Bridging Yes
- Recirculating & Vented Yes
- Extraction Power 345 CFM
- Sound Level 30 dBA @ level 1
Infinite Design Potential
Unlock new horizons in kitchen design with their downdraft cooktop. Its slim profile liberates your space from bulky hoods and cabinet constraints, making even floating islands a reality. True design freedom awaits.
Quiet Ventilation Technology
Running as low as 30 dBA, sound-reducing technology minimizes the noise of the ventilation system

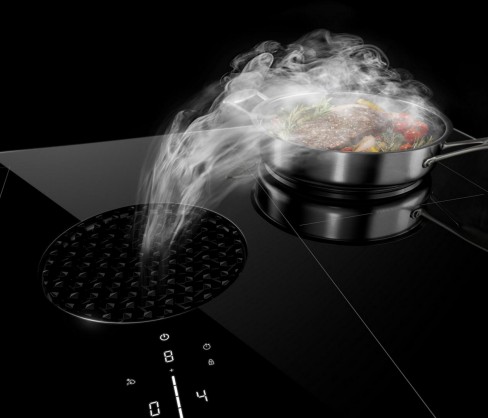

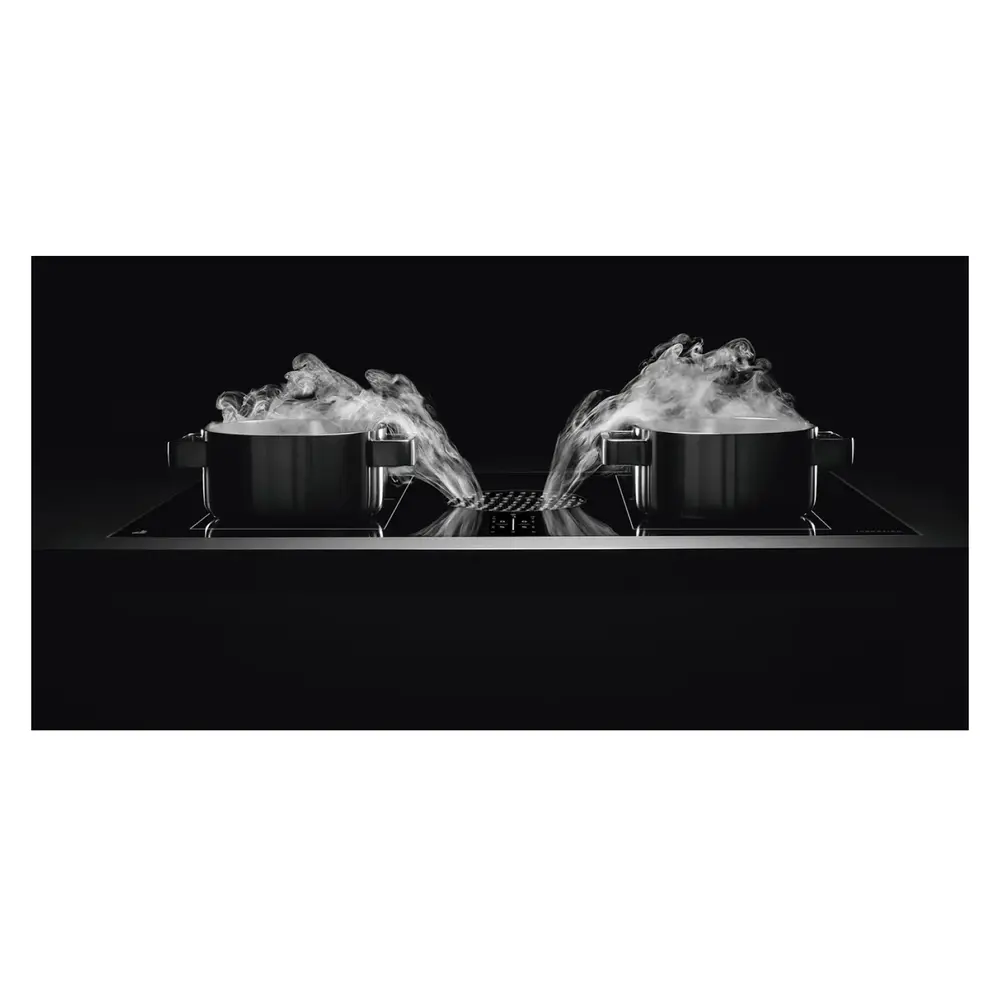

Powerful and Effective Extraction for Cleaner Air
Helps clear kitchen air of cooking vapors and odors with a powerful 345 CFM Motor Class extraction that works 5x faster than steam can rise, helping to maintain a pleasant kitchen environment.
Flexible Ventilation Options
External Vent vs. Recirculating Air Vent lets you customize your downdraft cooktop even further by allowing you to choose the vent system that works best for your kitchen (Recirculation kit sold separately)

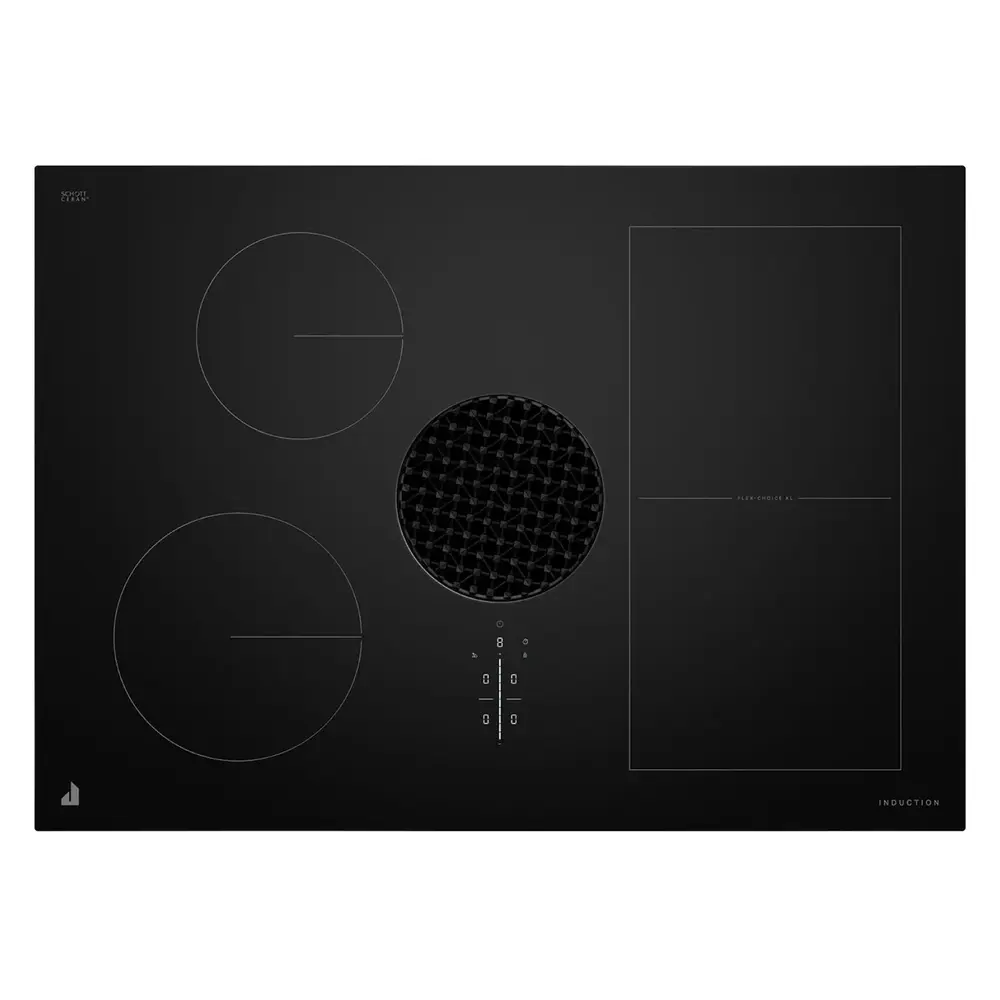

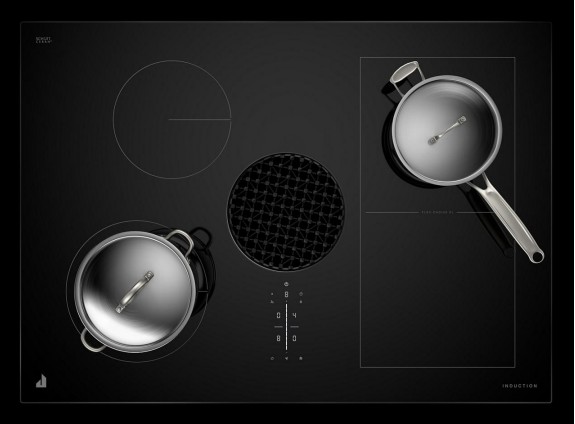

Cooktop Specs
- Elements/Burners 4
- L Front 8”, 3000W w/ Boost
- L Rear 7”, 2100W w/ Boost
- R Front 9 x 9”, 3000W w/ Boost
- R Rear 9 x 9”, 3000W w/ Boost
Compliance
- Energy Star
- UL
- ADA
- California Title 24
Specifications | |
| Brand | JennAir |
| Appliance Category | Cooktop |
Appearance | |
| Color | Black |
| Color Family | Black |
Dimensions | |
| Exterior Width | 30" |
| Width | 30 7/8" |
| Depth | 22 1/16" |
| Height | 7 7/8" |
| Cutout Width | 28 27/32" |
| Cutout Depth | 21 5/32" |
Fuel Type | |
| Fuel Type | Electric |
Style | |
| Type | Cooktop |

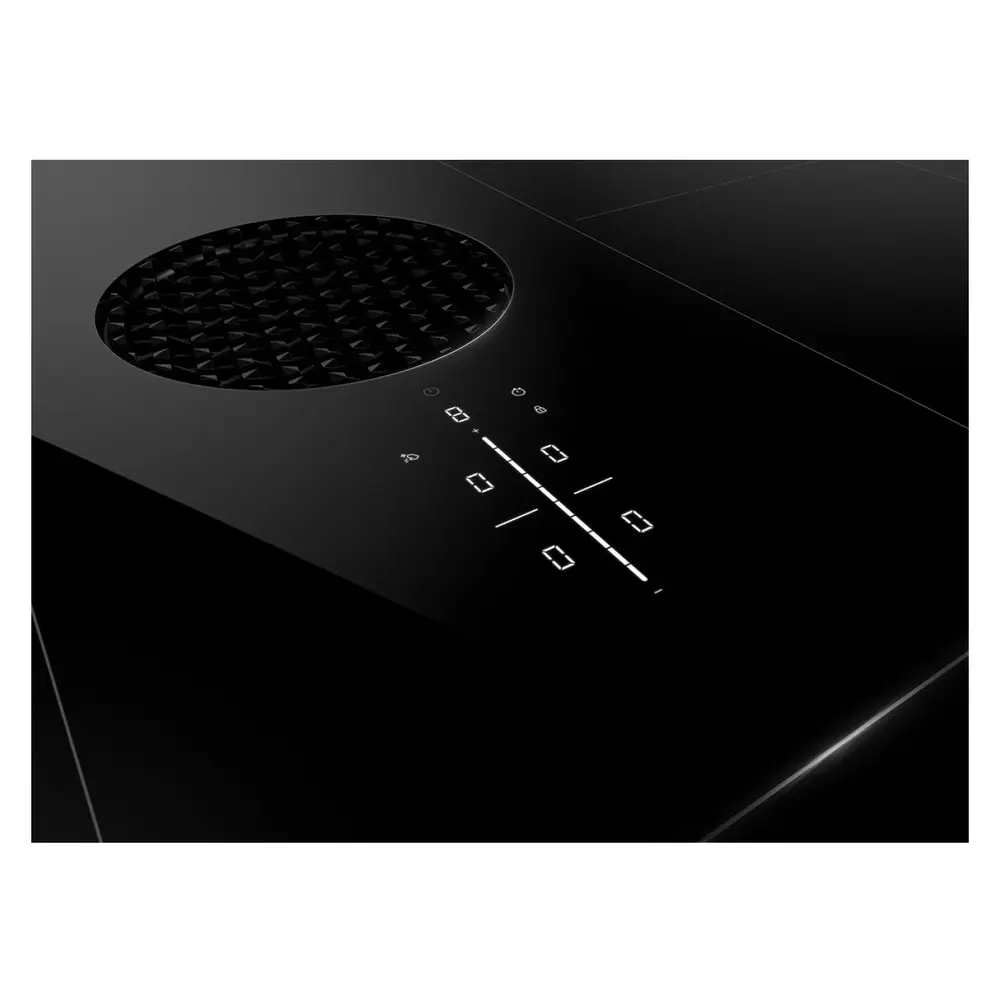

| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Induction Element |
| Number of Burners/Elements | 4 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Element Output | 3000 Watts |
| Burner/Element Output N1 | 3000 Watts |
| Burner/Element Output N2 | 2100 Watts |
| Burner/Element Output N3 | 3000 Watts |
| Burner/Element Output N4 | 3000 Watts |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 240 |
| Amps | 40 |
Certifications | |
| ADA Compliant | No |
Warranty | |
| Warranty | 2 year limited |
Features | |
| CFM | 345 |
| Downdraft | Yes |
