GE AZHS12DRXXA Zoneline Heat Pump Fixed Speed Package Terminal Air Conditioner with 12,100 BTU Cooling Capacity, 11000 BTU Heat Pump, Electronic Touch Controls with LED Display and Corrosion Protection Package in Grey White
1 / 8
1 year warranty included
Winter Savings Sale
$1,615.00
or $134.58/mo.* for 12 monthsLearn More
Additional Savings: $100.00
Applied in Cart
Top Quality Store on GoogleRECOMMENDED ACCESSORIES
Product Details
Appearance
Color Family:Gray
Color:Grey White
Dimensions
Height:16"
Width:42"
Depth:20 13/16"
Features
Filter Type:Washable
Technical Details
Energy Star:No
AHRI Certified:Yes
Appliance Category:Air Conditioner
Brand:GE
Nominal BTU Capacity:12000 BTU
Cooling BTU Capacity:12100
Heating BTU Capacity:11000
Works With Google Assistant:No
Works With Alexa:No
Smart Appliance:No
Wi/Fi:No
Warranty:1 Year Parts and Labor
Voltage:230 Volts
Amps:5.1
Provides Heating:Yes
Heat:Heat Pump
Remote Controller:No
Corrosion Protection:Yes
Style
Type:PTAC
Plug Type:Direct Wire
Chassis Type:Thru the Wall
Features:
- Designed & Assembled in America
- R454B - Most environmentally friendly refrigerant on the market
- ICR (Internal condensate removal)
- Heat pump down to 25°F
- Boost heat option
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
- Electronic temperature limiting
- Fresh air vent
Why Buy GE AZHS12DRXXA Zoneline Heat Pump Fixed Speed Package Terminal Air Conditioner
- 12,000 BTU Heat Pump PTAC: Combines powerful cooling with heat pump heating in a 230/208-volt packaged terminal air conditioner designed for year-round room comfort.
- 12,100 BTU Cooling Capacity: Delivers up to 12,100 BTU of cooling power with 11,900 BTU minimum capacity for reliable temperature control.
- 11,000 BTU Heat Pump Capacity: Provides up to 10,600 BTU of reverse-cycle heating, with heat pump operation down to 25°F using reverse-cycle defrost.
- Internal Condensate Removal (ICR): Helps reduce condensate buildup during heat pump operation, minimizing the need for manual condensate management.
- Electronic Touch Controls: Convenient electronic controls with an LED display make it easy to adjust temperature and operating settings.
- Quiet Operation: Baked-on mastic sound insulation, a cross-flow blower, and two DC fan motors work together to help reduce operating noise.
- Boost Heat & Temperature Limiting: Boost Heat provides supplemental resistance heat when needed, while electronic temperature limiting helps prevent excessive heating or cooling.
- Fresh Air Ventilation: Integrated fresh air ventilation provides an option for introducing outdoor air into the room for improved airflow and comfort.
- Durable Commercial-Grade Design: Features a corrosion protection package, SMC base pan and bulkhead, and a 1-year parts and labor warranty with a 5-year sealed refrigerating system warranty.
Frequently Asked Questions
Q: What is the GE Zoneline AZHS12DRXXA?
A: The GE Zoneline AZHS12DRXXA is a 12,000 BTU fixed speed heat pump unit designed for through the wall heating and cooling. It operates on 230 or 208 volts and features Internal Condensate Removal for efficient heat pump operation.
Q: What is the cooling capacity of the AZHS12DRXXA?
A: The AZHS12DRXXA provides up to 12,100 BTU of cooling capacity, with a rated cooling capacity of approximately 12,000 BTU. It is designed to provide efficient cooling for appropriate residential, hospitality, and commercial spaces.
Q: What is the heating capacity of the AZHS12DRXXA?
A: The AZHS12DRXXA provides up to 11,000 BTU of reverse cycle heat at 230 volts and 10,900 BTU at 208 volts. The heat pump can operate down to 25°F with reverse cycle defrost.
Q: Does the AZHS12DRXXA have a heat pump?
A: Yes. The AZHS12DRXXA features a reverse cycle heat pump that provides both heating and cooling. A Boost Heat option provides supplemental resistance heat when additional heating power is needed.
Q: What is Internal Condensate Removal on the AZHS12DRXXA?
A: The AZHS12DRXXA features Internal Condensate Removal, also known as ICR, which helps reduce condensate during heat pump operation for convenient and efficient performance.
Q: What controls does the AZHS12DRXXA have?
A: The AZHS12DRXXA features electronic touch controls with an LED display. It also includes electronic temperature limiting, which helps prevent excessive cooling or heating of the room.
Q: What are the dimensions of the AZHS12DRXXA?
A: The AZHS12DRXXA measures 16 inches high, 42 inches wide, and 20.8125 inches deep.
Q: What are the electrical requirements for the AZHS12DRXXA?
A: The AZHS12DRXXA is designed for 230 or 208 volt electrical operation. The unit has cooling amperage ratings of approximately 4.6 amps at 230 volts and 4.9 amps at 208 volts.
Q: What warranty does the AZHS12DRXXA include?
A: The AZHS12DRXXA includes a limited 1 year warranty covering the entire appliance and a limited 5 year warranty covering the sealed refrigerating system.
Pros and Cons of GE AZHS12DRXXA Zoneline Heat Pump Fixed Speed Package Terminal Air Conditioner
Pros
- Heat Pump Heating and Cooling: Provides both cooling and heat-pump heating in a single through-the-wall unit, offering year-round climate control without requiring a separate heating system.
- 12,000 BTU Cooling Capacity: Delivers 12,000 BTU of cooling capacity, making it well suited for larger rooms and hospitality applications where dependable through-the-wall cooling is needed.
- Heat Pump Operation Down to 25°F: Can provide heat-pump heating in outdoor temperatures down to 25°F, with reverse-cycle defrost technology to support operation in colder conditions.
- Internal Condensate Removal (ICR): Helps reduce condensate produced during heat-pump operation, minimizing the need for external condensate management.
- Quiet Operation: Uses a baked-on mastic sound barrier, cross-flow blower, and two DC fan motors to help reduce operating noise and improve room comfort
Cons
- Fixed-Speed Operation: Uses a fixed-speed compressor rather than variable-speed/inverter technology, which may provide less precise temperature modulation and potentially less efficient operation under partial-load conditions.
- Requires 208/230V Power: This is not a standard household 120V unit and requires appropriate 208/230V electrical service, which can increase installation complexity.
- Requires Wall Case: Installation requires the compatible GE RAB42 wall case, adding another component that must be properly installed for a complete setup.
- Limited Heating in Colder Weather: Although the heat pump operates down to 25°F, performance and heating capacity are inherently more limited as outdoor temperatures fall, making supplemental heat important in colder climates.
- Moderate Energy Efficiency: The unit's 11.6/11.8 EER cooling efficiency and 3.6 COP heat-pump efficiency are respectable, but newer variable-speed systems can offer more efficient operation depending on conditions.
Conclusion
The GE Zoneline AZHS12DRXXA is a capable through-the-wall heat-pump unit that combines 12,000 BTU cooling, heat-pump heating, internal condensate removal, quiet-operation features, and smart connectivity in a single system. Its main limitations are fixed-speed operation, 208/230V installation requirements, colder-weather heating limitations, and the fact that the model is no longer manufactured. Overall, it is a strong option where reliable year-round through-the-wall climate control is needed, particularly when replacing an existing Zoneline system.
Key Features

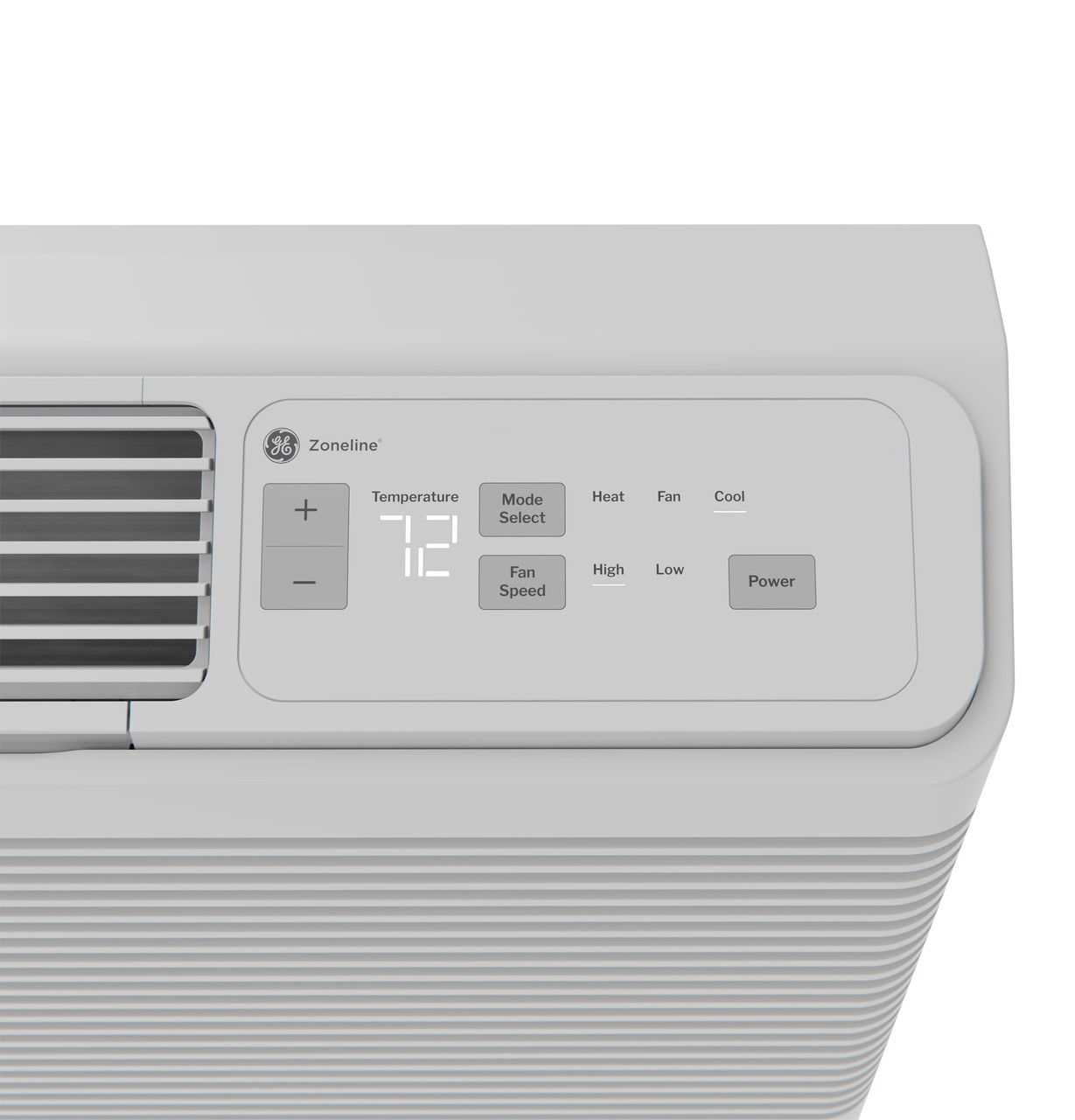

Electronic touch controls with LED display
Electronic touch controls with LED display

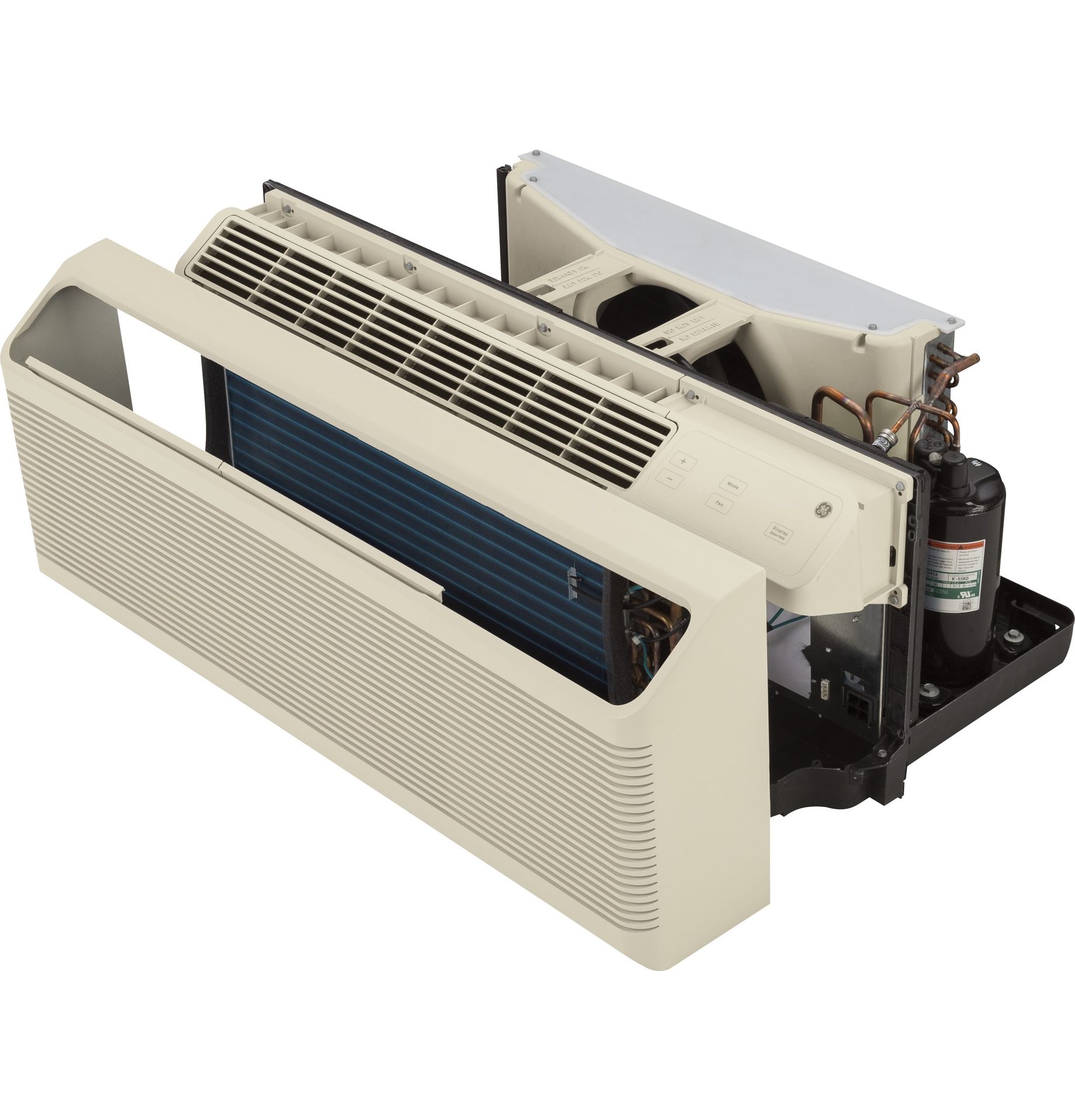

Corrosion protection package
Corrosion protection package
