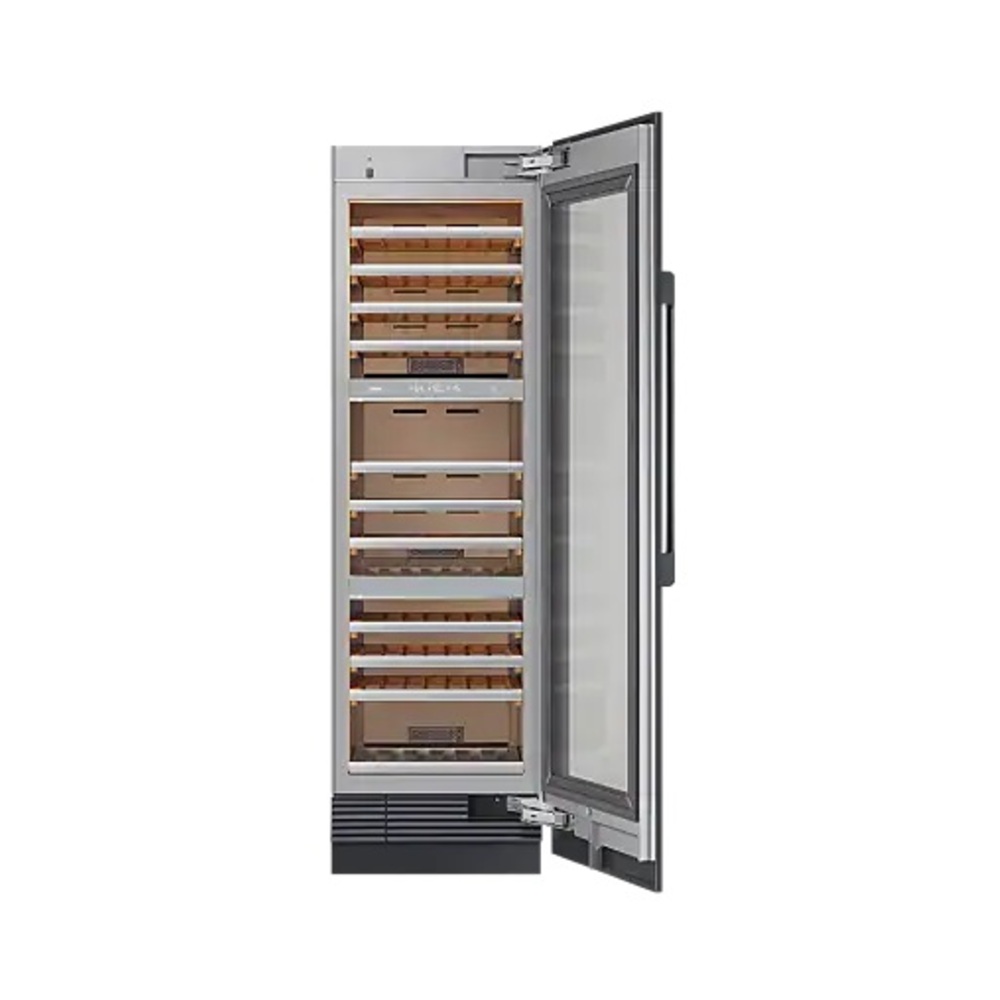

Dacor DRW24980RAP 24 inch Integrated Wine Column with 100 Bottle Capacity, Triple Temperature Zones, SteelCool Interior with 3D Lighting and Push to Open Door in Panel Ready (Right Hinge)

DRW24980RAP
1 / 6
$7,749.00
or $645.75/mo.* for 12 monthsLearn More
Loading product options...

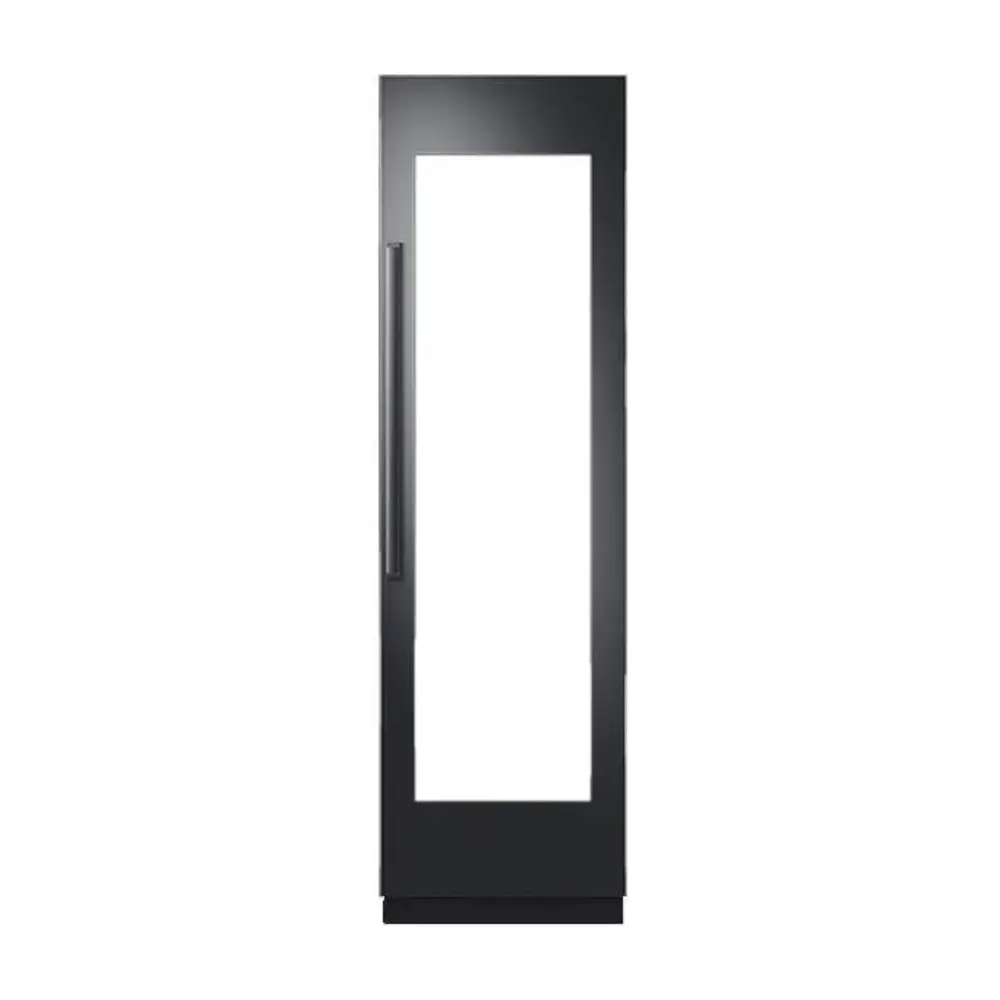

RECOMMENDED ACCESSORIES

Product Details

Appearance

Shelf Material:Wood
Color Family:Panel Ready
Color:Panel Ready

Dimensions

Cutout Depth:25"
Exterior Width:24"
Width:23 3/4"
Depth:25"
Height:83 3/8"
Cutout Width:24"
Cutout Height:84"

Technical Details

Doors:Glass
Panel Ready:Yes
Column:Yes
Bottle Capacity:100
Undercounter:No
Number Of Wine Racks:11
Operating Temperature:40 Degrees F - 65 Degrees F
Hinge Side:Right Hinge
Rack Options:Slide Out
Humidity Control:Yes
UV Protection:Yes
Vibration/Free:No
Lock:No
Series:Contemporary
LED Interior Light:Yes
ETL Listed:Yes
ADA Compliant:No
Number Of Doors:1
Reversible Door:No
Smart Appliance:Yes
Wi/Fi:Yes
Energy Star:Yes
Voltage:115
Approved For Outdoor Use:No
Sabbath Mode:Yes
Amps:15
Brand:Dacor
Number Of Zones:Triple
Cooling System:Compressor
Size:Full Size

Style

Rack Type:Extension
Control Type:Digital
Type:Built-In

Features:

24 Inch Wine Column
Dacor’s fully integrated, full sized wine column easily holds up to 100 bottles of wine in three independently cooled zones, perfectly stored behind a triple layer of glass filled with argon gas to protect your wine collection from UV and IR rays. With a sleek design, the wine cellar comes panel-ready for graphite, stainless steel, or custom panels, with the option for a handle-free, push-to-open door. The column has four humidity sensors (one each per zone and one outside) to perfectly control the humidity level between 50%-80%, while Dacor’s own Precise Cooling Technology keeps temperature fluctuations within ±.3°F. Receive notifications and real-time status of your collection through the IQ Connect WIFI system and SmartThings app.

  • 3 independent temperature zones
  • 3 internal and 1 external humidity sensors
  • Argon-filled triplex glass with UV/IR coating
  • 3 clean air filters
  • Anti-vibration mounted compressor
  • SteelCool™ full stainless steel interior
  • LED 3D Lighting
  • Push-to-open door
  • Glass-touch control panel with SmartThings Wi-Fi connectivity
  • 15-year warranty on digital inverter compressor
  • R600a refrigerant
  • Panel ready

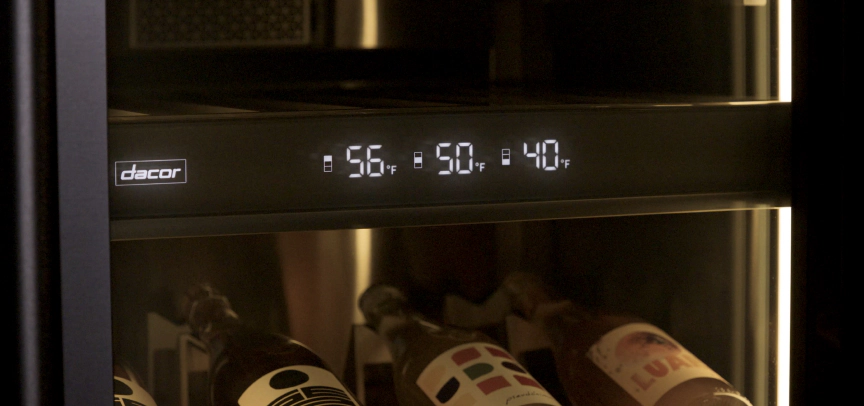

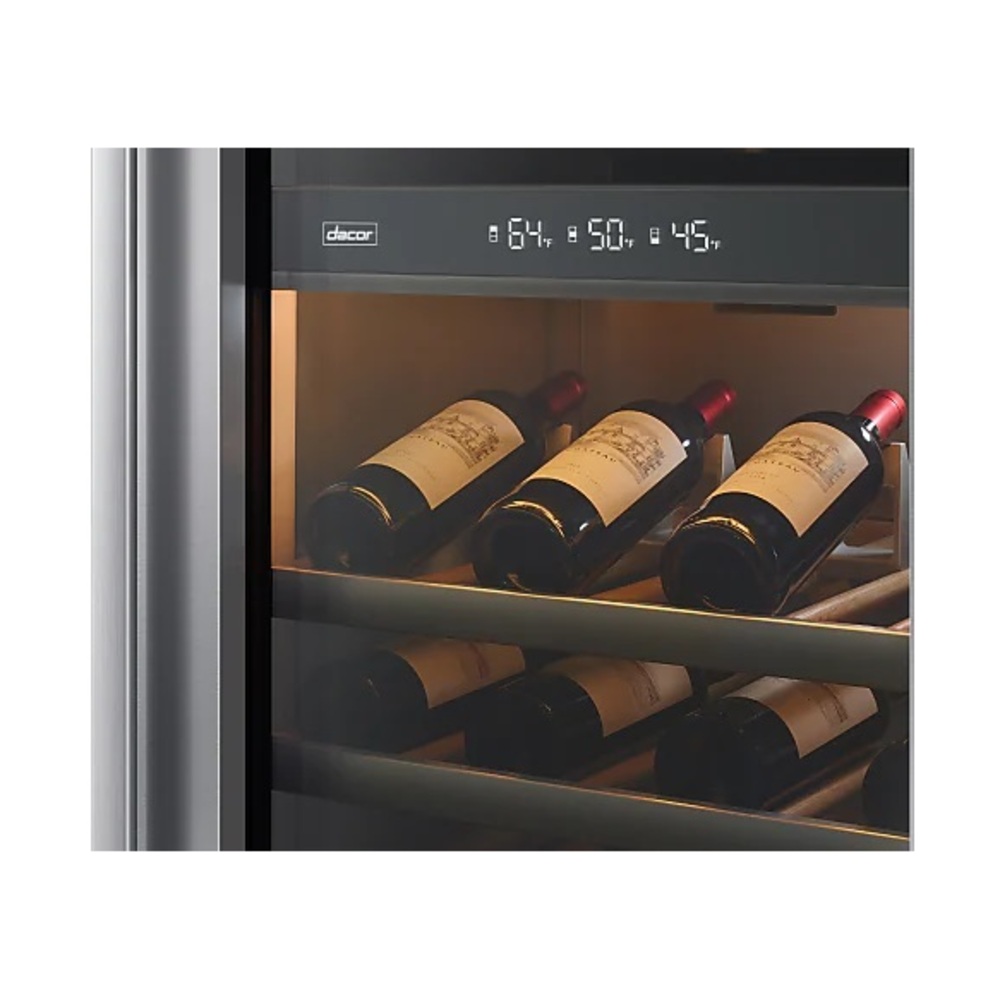

Triple Temperature Zones
Store any type of wine with three separate temperature controlled compartments with dedicated evaporater for each zone with + 0.3 ºF temperature fluctuation.

SmartThings Integration
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity.  Monitor and control wine cellar all from the comfort of your smartphone.

Precise Cooling Technology
Dacor's Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Their Digital Compressor offers superior performance compared to a standard A/C compressor while minimizing harmful vibration with 6 variable speeds, including ultra-low speed.

Optimal Humidty
Prevents cork from drying out with dedicated humidity sensor for each zone in addition to external sensor to sense the ambient humidity and optimizes humidity level at 50% ~ 80%.

Energy Efficient and Environmentally Friendly
Dacor uses R600a Refrigerant, which is up to 40% more efficient than traditional R134a. R600a is less harmful to the environment and will be the new EPA mandated standard starting in 2020.

Superior Insulation Technology
Vacuum insulated panels combine with Triplex glass makes it the best in class wine preservation system.

TripleX Glass
Protect wine from harmful ultraviolet and infrared rays in addition to heat with low-E, UV/IR coated  triple pane glass with double argon gas sealed chambers.

Anti Vibration Mount
Protect wine from vibration through rubber mounted 6-speed compressor that prevents transfering vibration from the compressor to the rest of the unit

Clean Air Filter
Keep the wine cellar fresh and prevent contamination with dedicated clean air charcoal filter located in each zone.

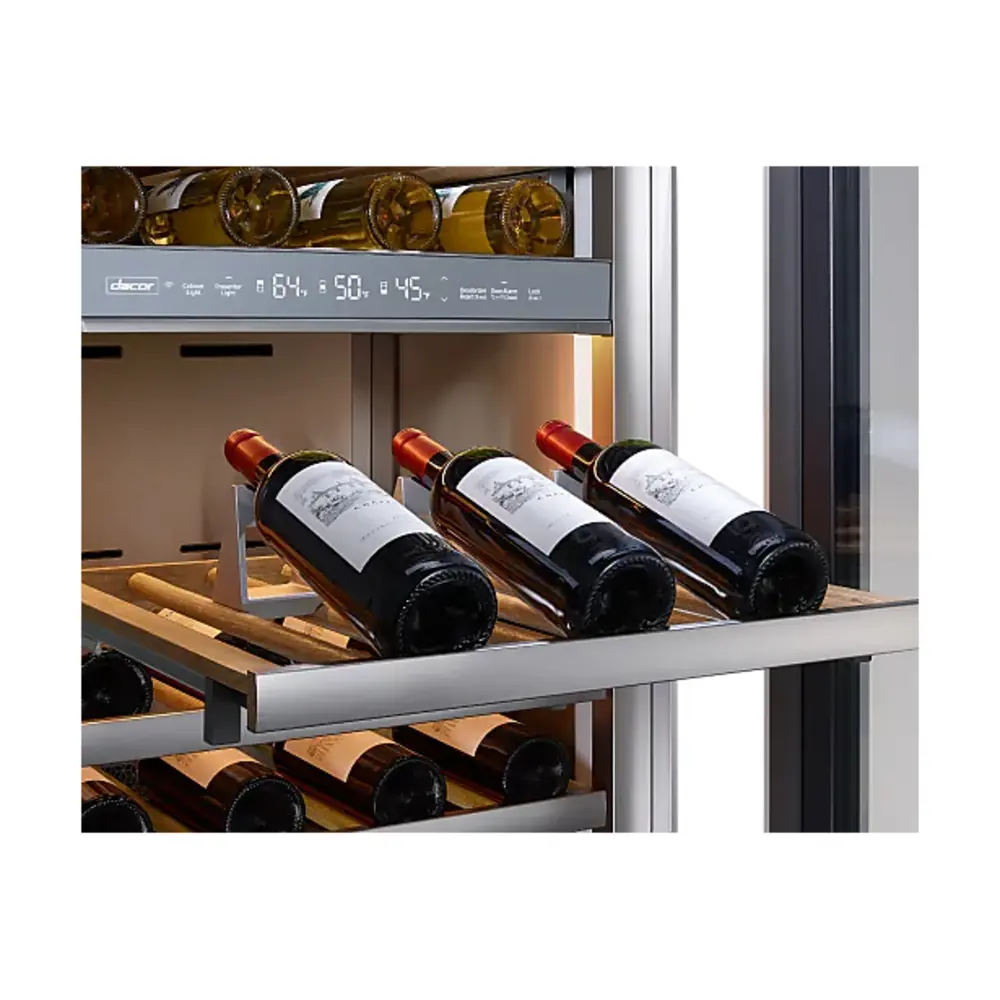

Presenter Shelf
Show off and highlight your wine collection under softly lit LED lighting.

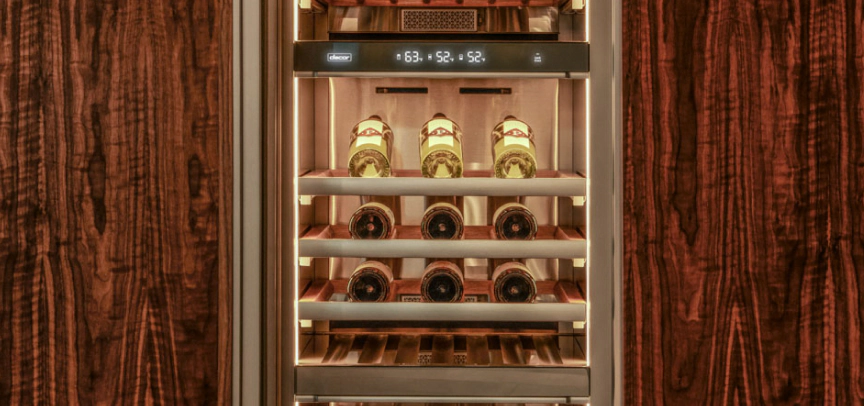

SteelCool Interior with 3D Lighting
Seamlessly integrated LED lighting in a fully wrapped, all-stainless steel interior. Wine optimized LED is used to avoid UV radiation from contaminating the wine colleciton.

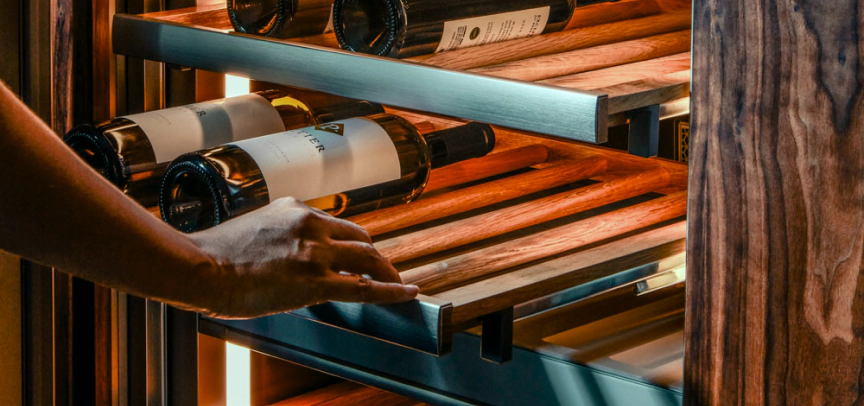

Glideracks
Prevent vibration through luxurious oak wood constructed Glideracks that lock in and slide out with ease using its smooth ball-bearing rails. Wooden dowels help keep moisture away from labels versus wire racks that can potentially cause label damage.

Push to Open Door
Gently opens with a simple push while also allowing handle free design.

100 Bottles Capacity
Efficient use of space allows storing up to 100 bottles of standard 750 mL wine bottles.

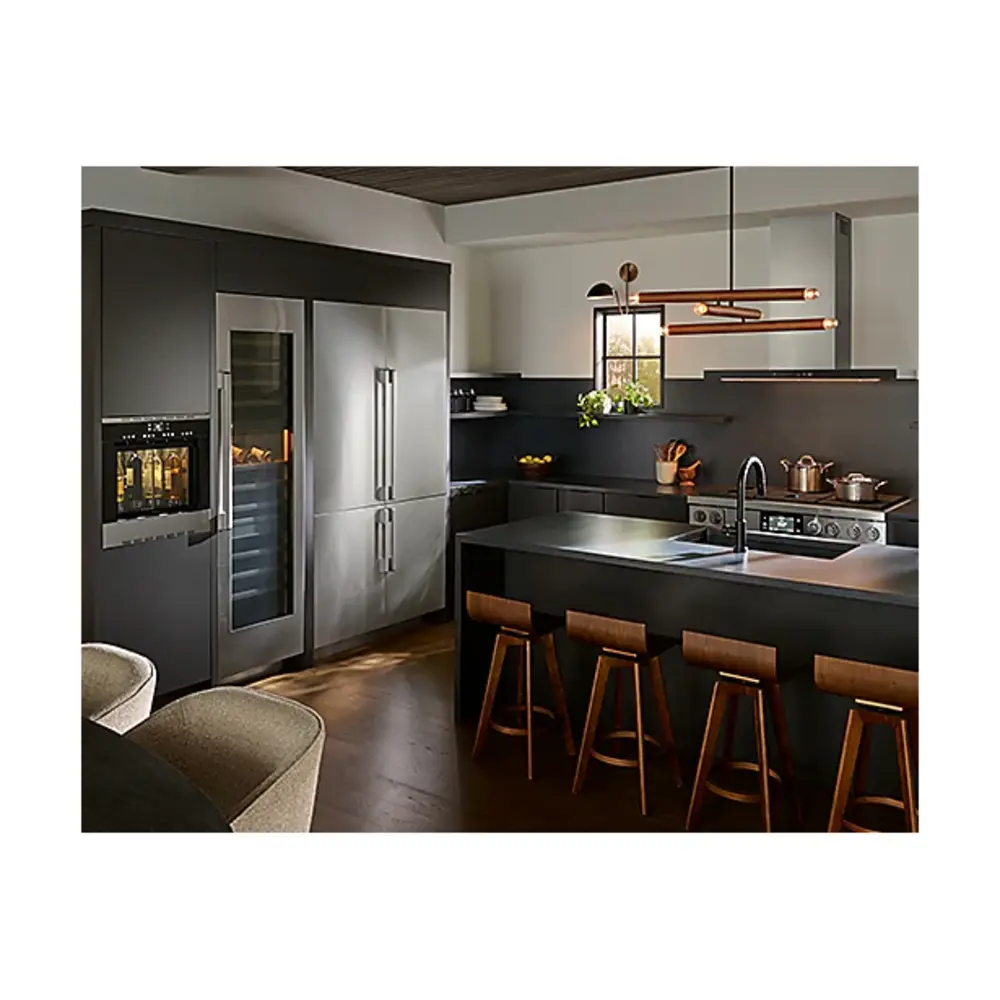

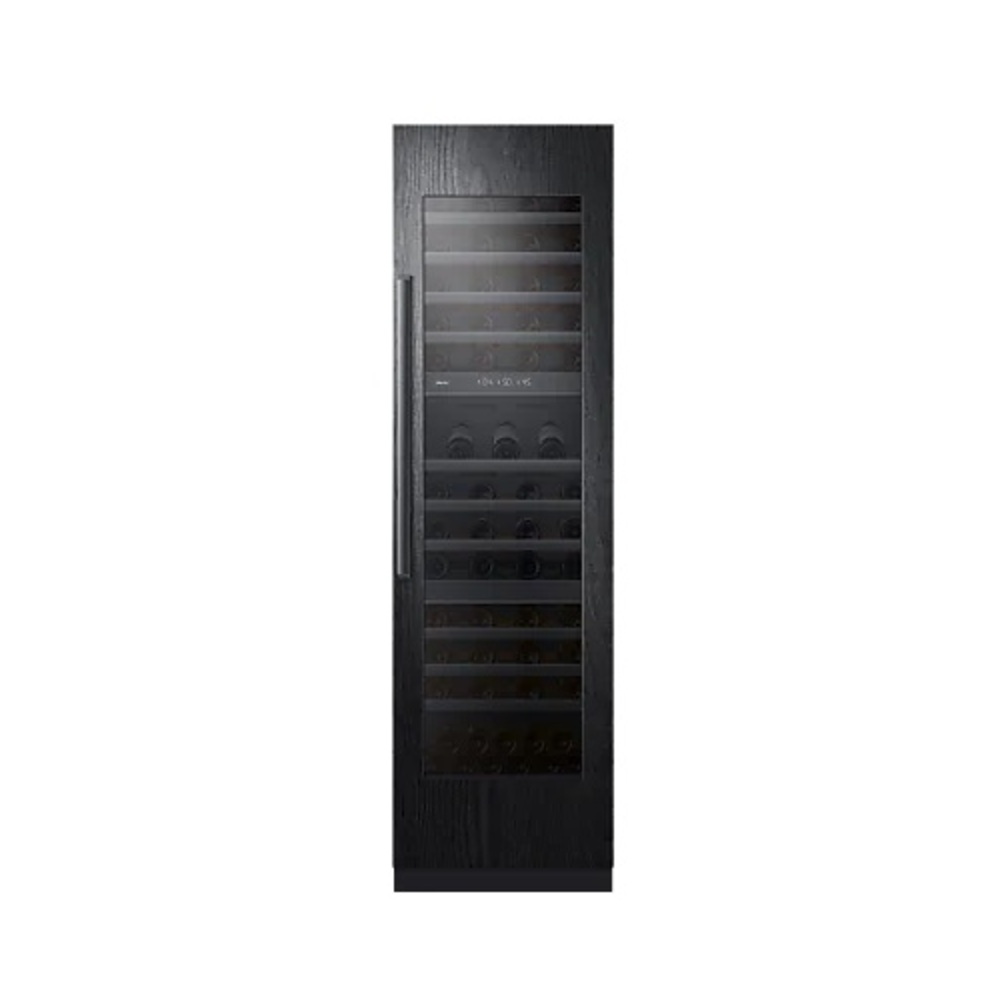

Panel-Ready Design
Integrates beautifully into any kitchen design. Columns come panel-ready for custom wood paneling, or choose from silver or graphite stainless steel finishes. Your kitchen will be ready for your performance.

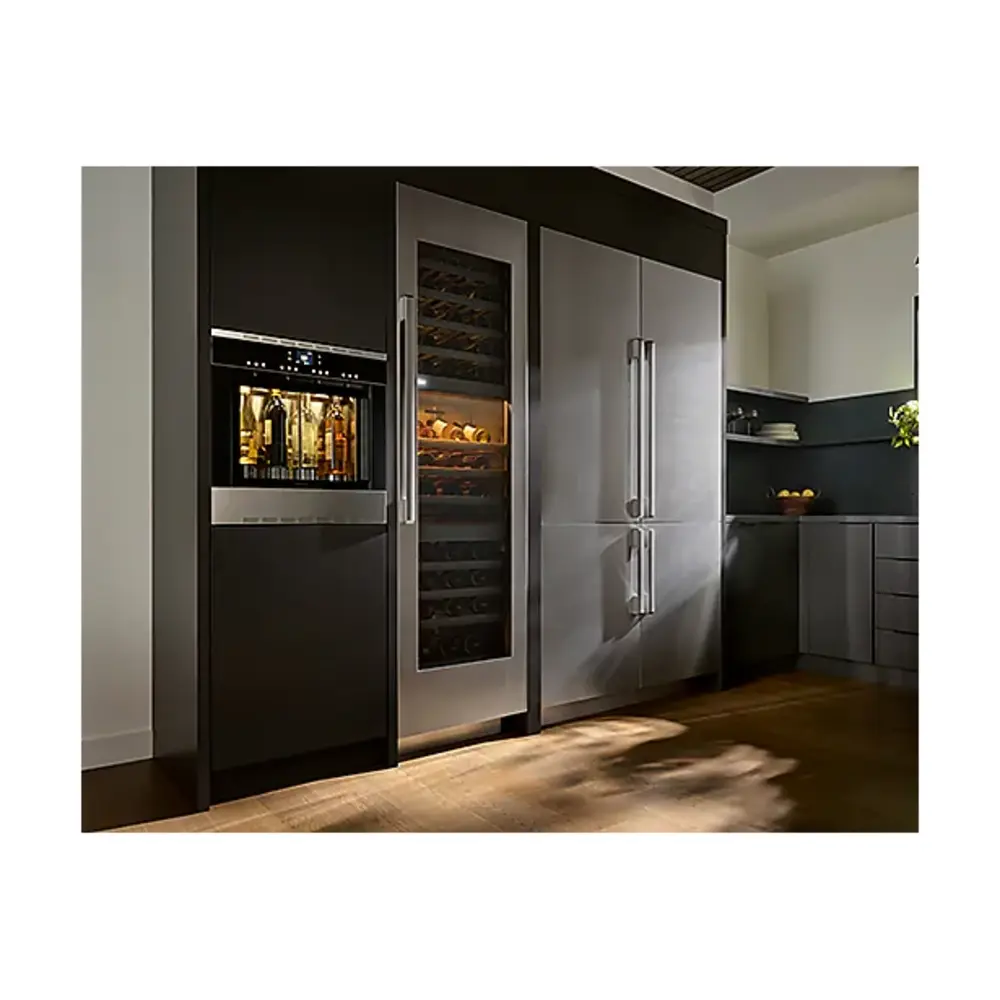

Fully Integrated Flush Install
Dacor Columns can be installed flush in a 25" cabinet depth, for a fully integrated look

Key Features

Smartthings Integration
Smartthings Integration
Whether you're near the kitchen or away from home, IQ Control with SmartThings® integration makes controlling your appliance effortless.
Precise Cooling Technology
The Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.
Precise Cooling Technology
