Features:

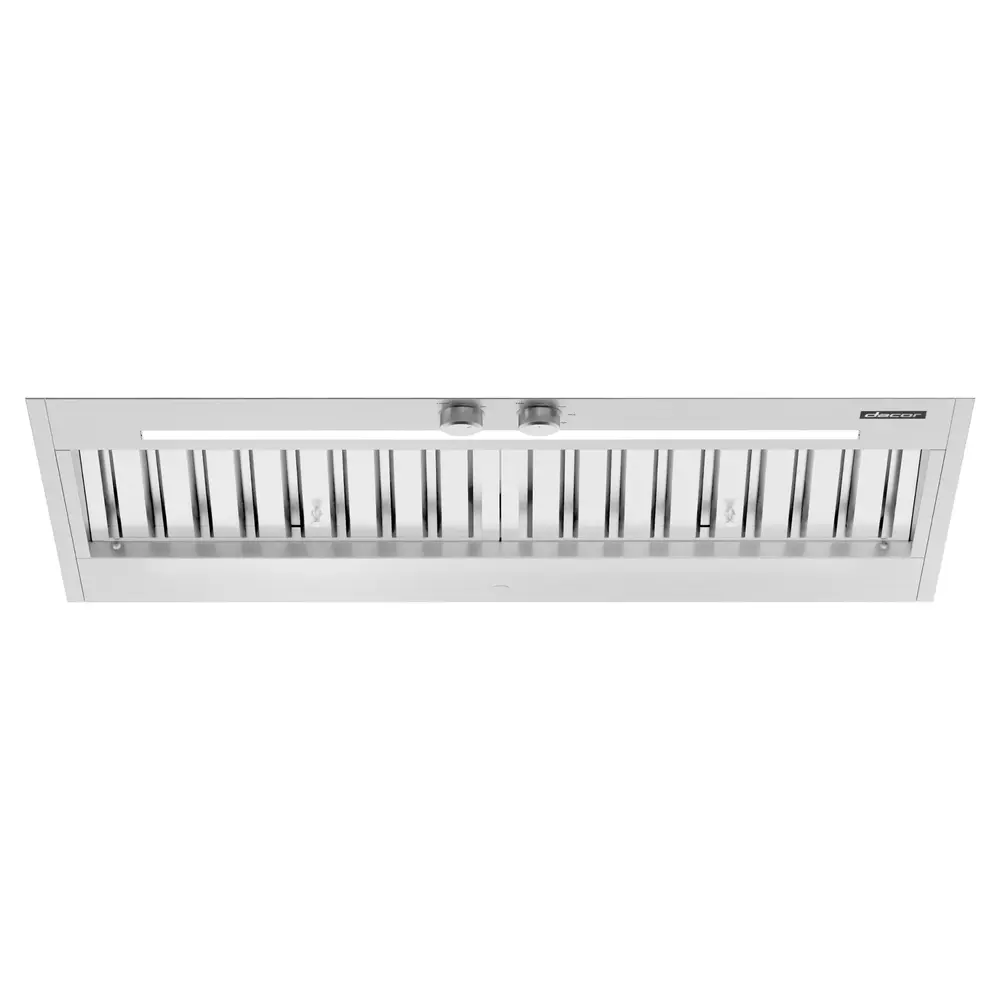

36 Inch Hood Liner
The Hood Liner is designed with elegant lines, LED lighting, and auto-on heat sensor to work seamlessly with your Dacor cooking product.
- 1,200 CFM internal dual blower
- Four-speed fan
- Strip LED lighting
- Removable professional baffle filters
- Auto-On temperature sensor
Auto-On Heat Sensors
Eliminate heat and smoke from afar with Auto-On Heat Sensors.
Multi-Speed Fan
Be in control of your Dacor cooking products with a four-speed fan with 1,200 CFM (780 CFM convertible) ventilation with minimal noise.
Strip LED Lighting
Strip LED lighting illuminates your cooking area in an elegant glow with more energy efficiency than standard halogen lighting.
Noise Dampening System
Noise dampening system for a quieter experience.
Baffle Filter
Easy to clean stainless steel baffle filter efficiently absorbs smoke and odors while filtering out the grease.
Specifications | |
| Brand | Dacor |
Appearance | |
| Color | Silver Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 36" |
| Width | 36" |
| Depth | 22" |
| Height | 5 7/16" |
Style | |
| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Round |
| Number of Light Bulbs | 1 |
| Duct Diameter | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top |
Features | |
| CFM | 1200 |
| Filter Type | Baffle |
| Venting Type | Ducted |
| Blower Type | Internal |
| Automatic Turn On | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 4 |
| Light | Yes |
| Recirculating Kit | No |
| Temperature Sensor | Yes |
