Broan F403604 36 inch Under Cabinet Range Hood with 230 CFM, Aluminum Grease Filter (Stainless Steel)

F403604
1 / 5
1 year warranty included
$164.00
or $13.67/mo.* for 12 monthsLearn More

Select Color:

RECOMMENDED ACCESSORIES

Product Details

Appearance

Color Family:Stainless Steel
Color:Stainless Steel

Dimensions

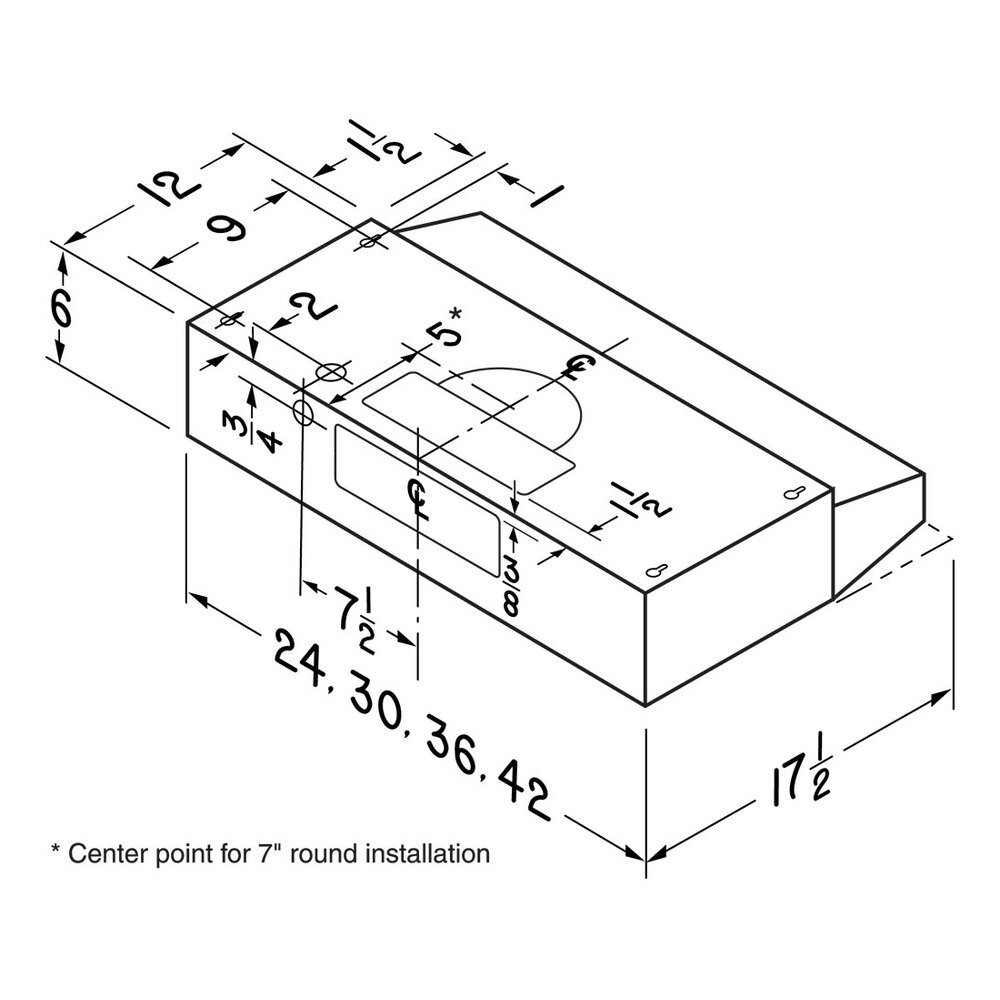

Duct Width:3 1/4"
Exterior Width:36"
Width:36"
Depth:17 1/2"
Height:6"

Features

Filter Type:Mesh
Light Bulb Type:LED

Technical Details

Glass Canopy:No
Commercial:No
Watts:300
Make/Up Air Compliant:Yes
Energy Star:No
Voltage:120
Approved For Outdoor Use:No
UL Listed:Yes
CUL Listed:No
Amps:15
Duct Type:Round and Rectangular
Duct Diameter:7"
Frequency:60 Hz.
CFM:230
Number Of Fan Speeds:2
Fan:Yes
Light:Light Bulbs Not Included
Recirculating Kit:Kit Sold Separately
Brand:Broan
Duct Length:10"
Appliance Category:Hood
Smart Appliance:No
Wi/Fi:No
ADA Compliant:ADA with Optional Wall Switch
Warranty:1 Year Parts and Labor
Duct Location:Top or Rear
Fingerprint Resistant:No
Delay Turn Off:No

Style

Type:Under Cabinet
Style:Standard Hood
Venting Type:Convertible
Blower Type:Internal

Features:

Convertible Under-Cabinet Range Hood
The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top, and control switches for fan speed and light activation

4-Way Convertibility
Provides installation flexibility with 4-way convertibility to fit virtually all applications

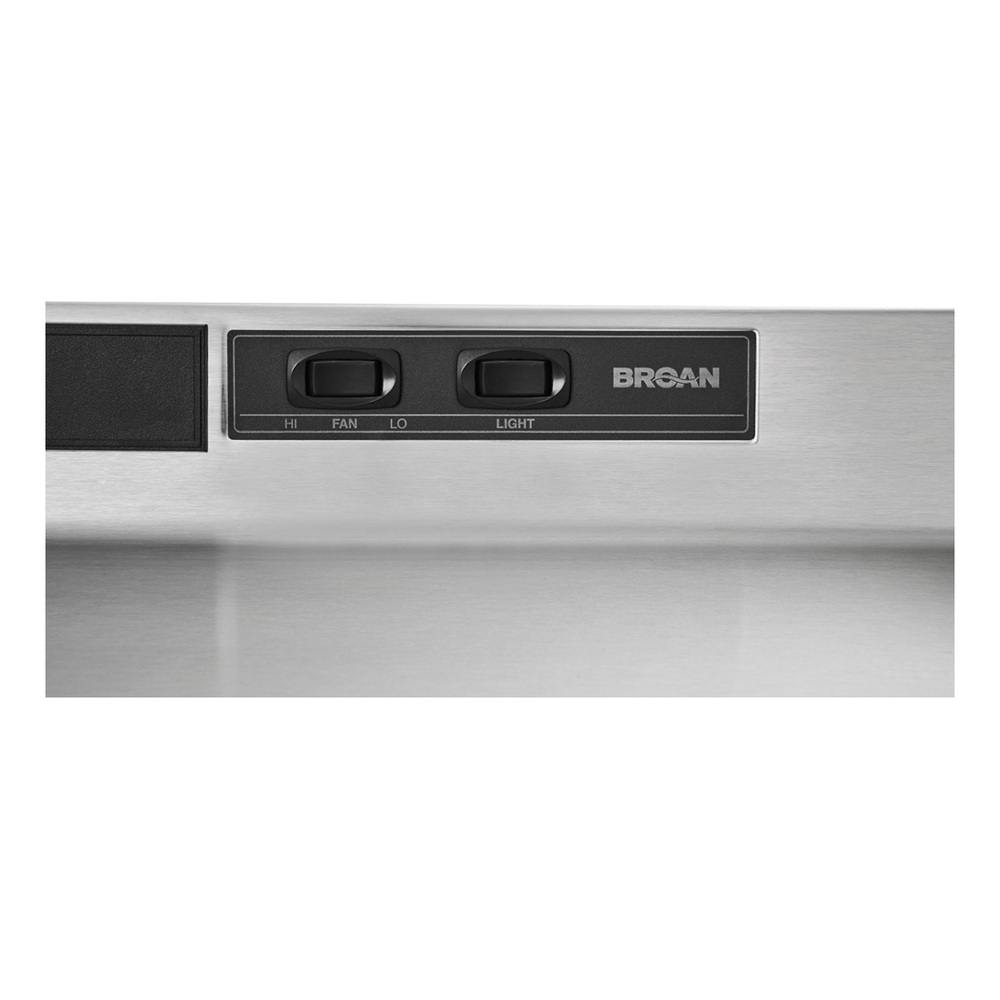

Rocker Switches
Simple to use rocker switches let you adjust the fan speed and the light setting separately

Two Fan Speeds
Two fan speeds help you tackle a variety of venting jobs

230 MAX Blower CFM
230 MAX Blower CFM quickly removes smoke and cooking odors from the air

Vertical and Horizontal Exhaust
Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood

Aluminum Mesh Filter
Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)

LED Light (bulb sold separately)
Uses up to a 75-Watt in LED light to brightly illuminate the cooking area (bulb sold separately)

Adapter
Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)

Enclosed Light and Fan/Filter Assemblies
Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning

Warranty
One year limited warranty

Certification
UL listed and HVI 2100 certified

Key Features

Dishwasher-Safe Filters
Dishwasher-Safe Filters
Easy clean-up with quick-release filters that can be cleaned in the dishwasher.
