Features:

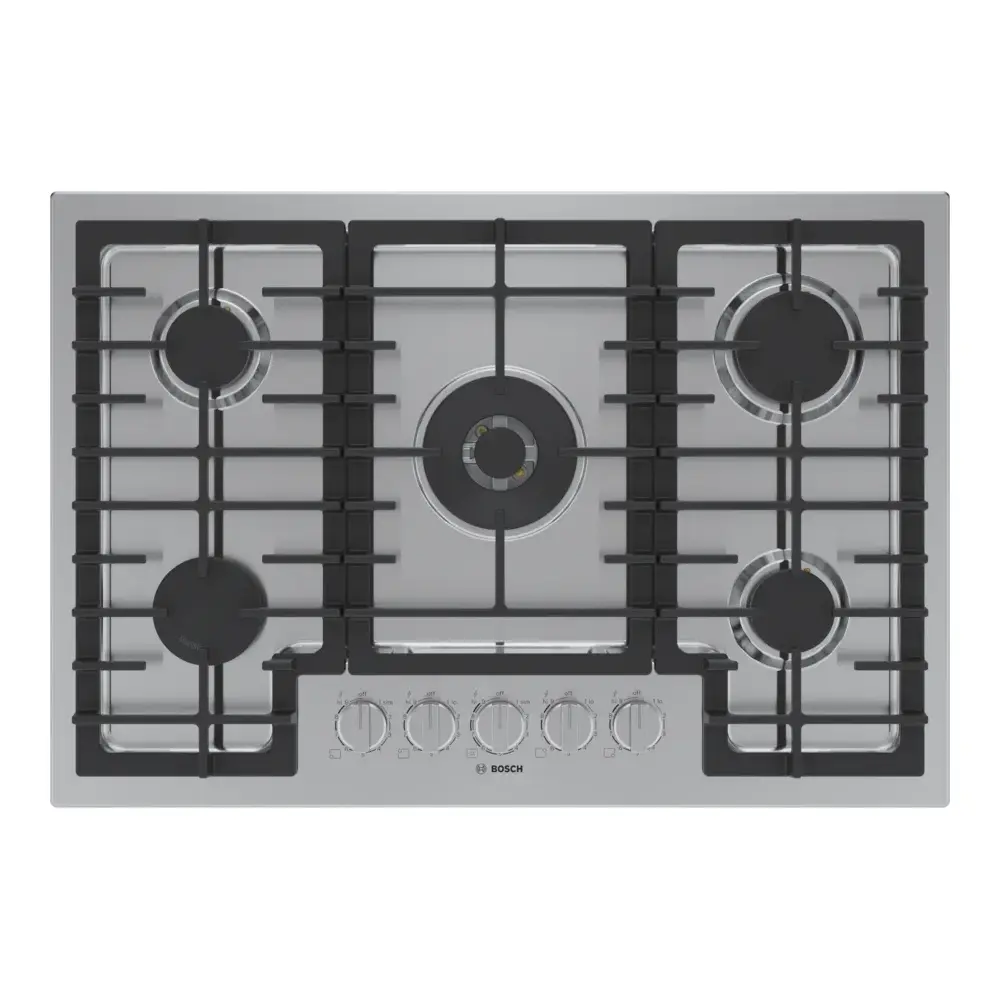

800 Series 30″ Gas Cooktop
The 800 Series gas cooktop with FlameSelect® is a better way to cook with gas and delivers precision flame levels for consistent results.
Eliminate the guesswork of cooking with FlameSelect®

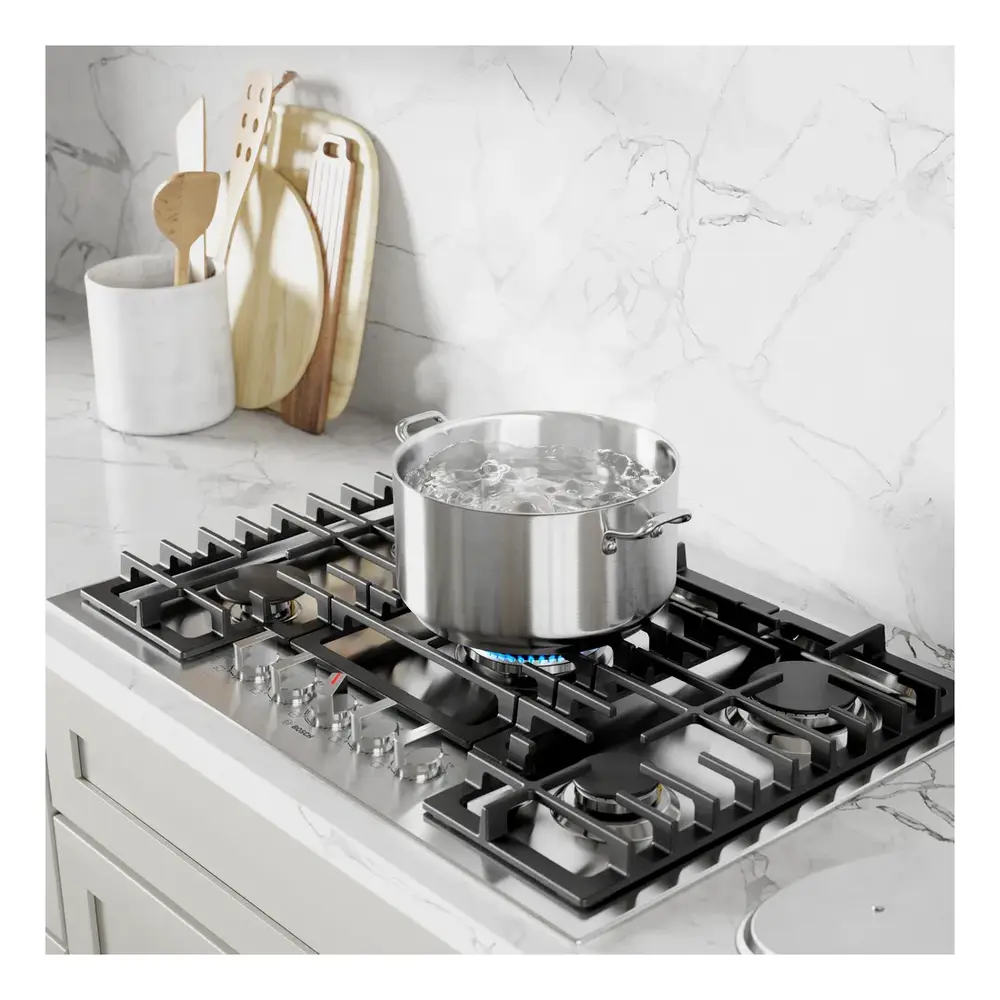

Introducing FlameSelect® on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.

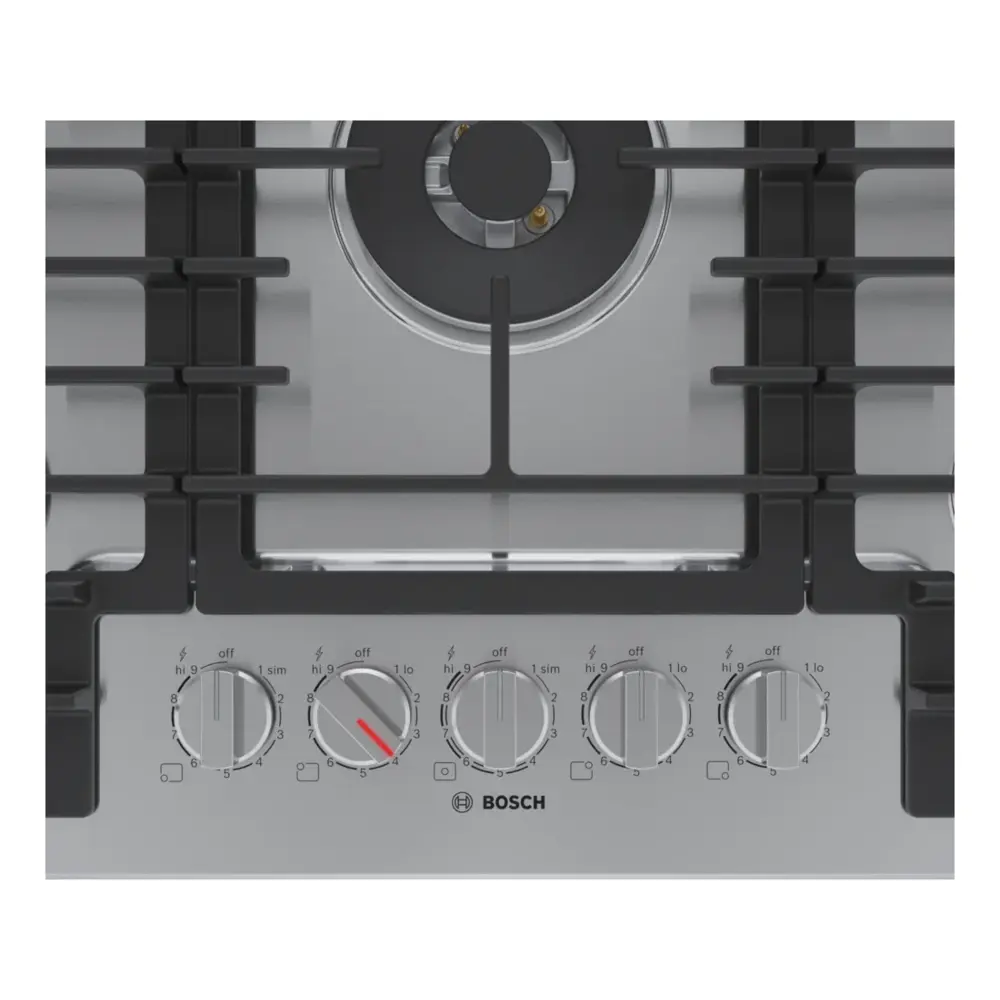

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

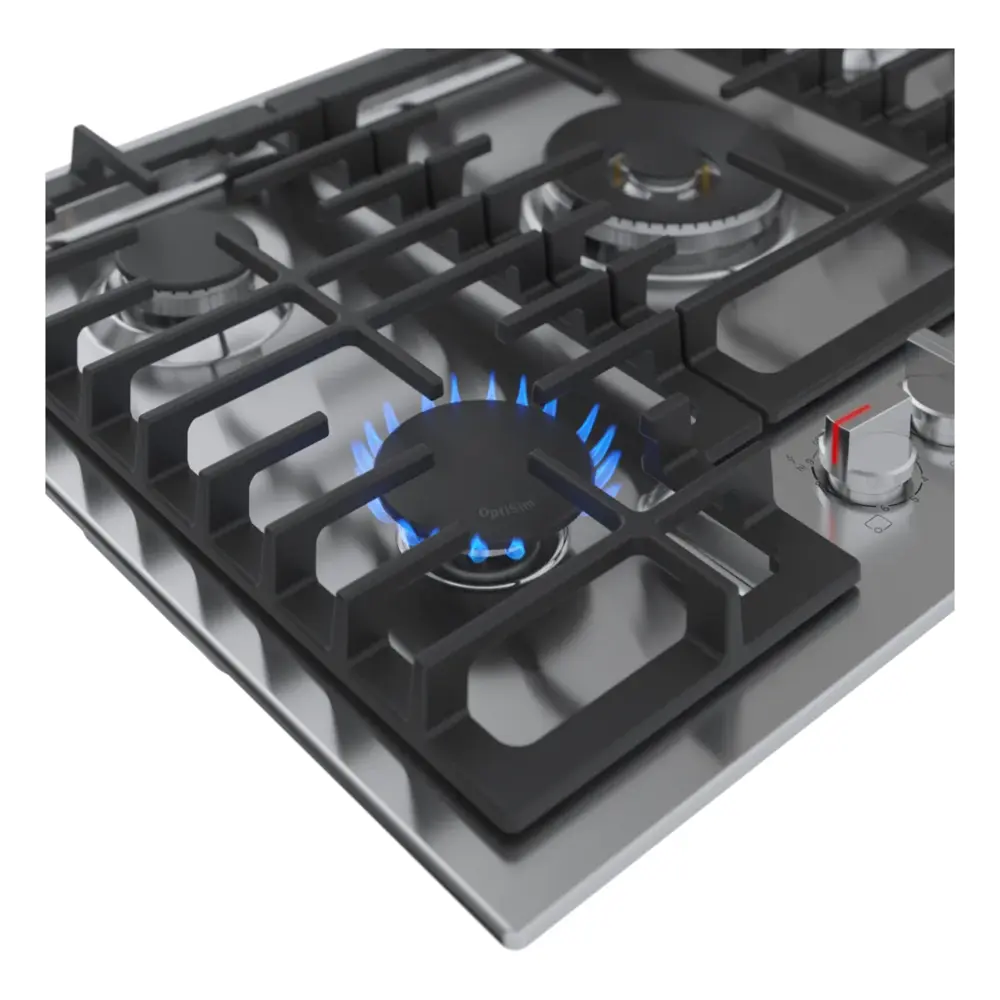

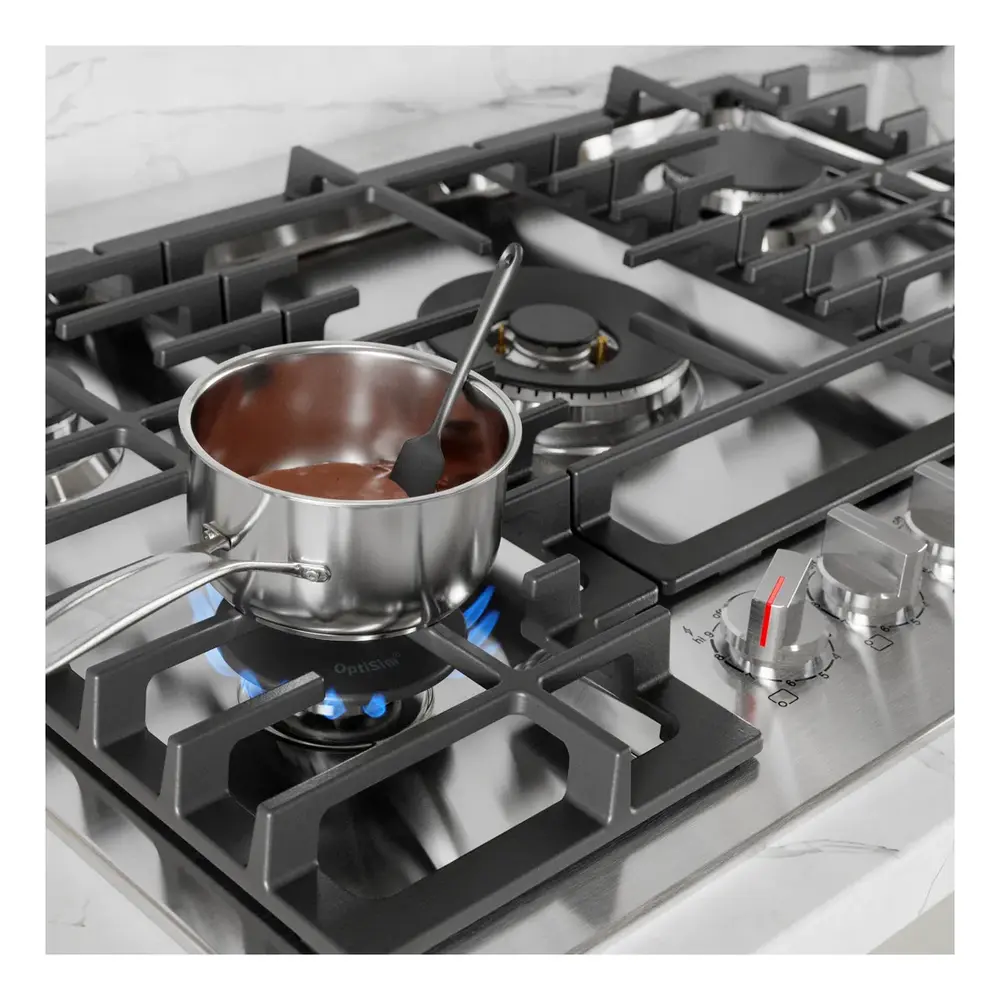

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

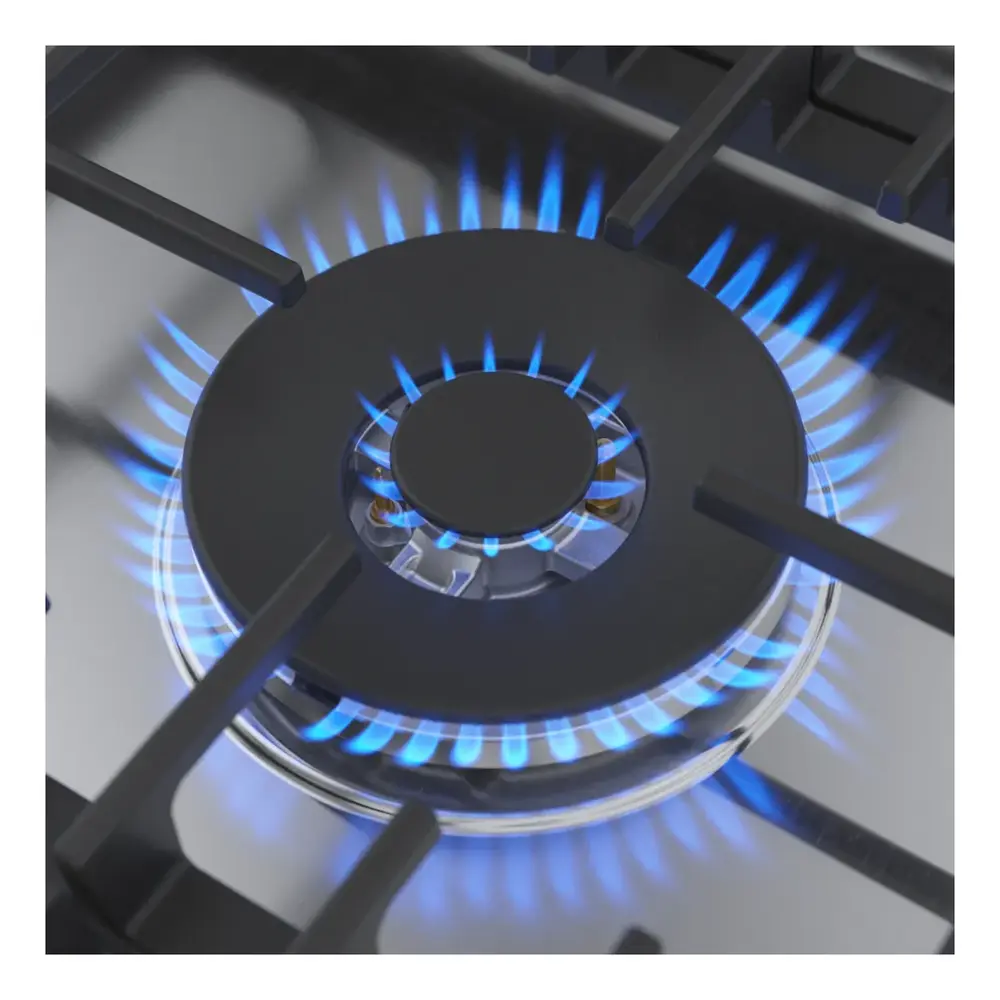

Dual-Flame Power Burner
Dual-flame power burner has two rings for low and high flame settings to go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever
Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Performance
- 5 high efficiency gas burners
- FlameSelect® (9 power levels)
- 17K dual flame ring power burner
- OptiSim® burner

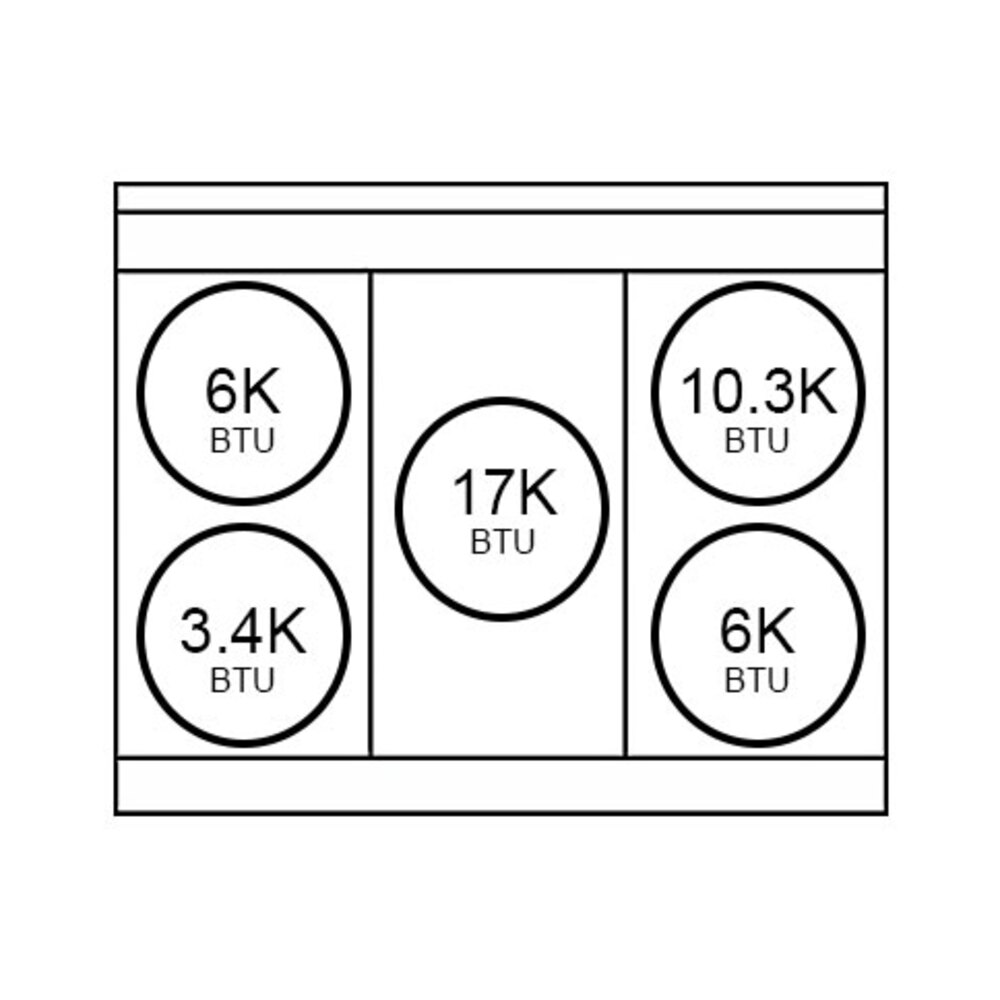

- Power of front left burner (NG / LP): 3,400 / 3,400
- Power of back left burner (NG / LP): 6,000 / 6,000
- Power of center burner (NG / LP): 17,000 / 15,700
- Power of back right burner (NG / LP): 10,300 / 10,300
- Power of front right burner (NG / LP): 6,000 / 6,000
Convenience
- Sealed burners prevent spills from entering the burner box
- Full width continuous surface enameled cast iron grates can be cleaned in dishwasher
- Push-to-turn knobs with electronic ignition
- LED light line in the control knob for each burner
Design
- Perfect results are within reach with up-front centralized controls
- Low-profile design for an integrated transition to the counter surface
- Cooktop design coordinates with Bosch ovens and ventilation
Safety
- Flame thermocouple sensing device will switch off the supply of gas if flame temporarily extinguishes
- LP conversion kit included for conversion from natural gas to liquid propane
- Residual heat indicator on every burner reminds you not to touch the grates when they are still hot
Specifications | |
| Brand | Bosch |
| Series | 800 Series |
| Appliance Category | Cooktop |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |

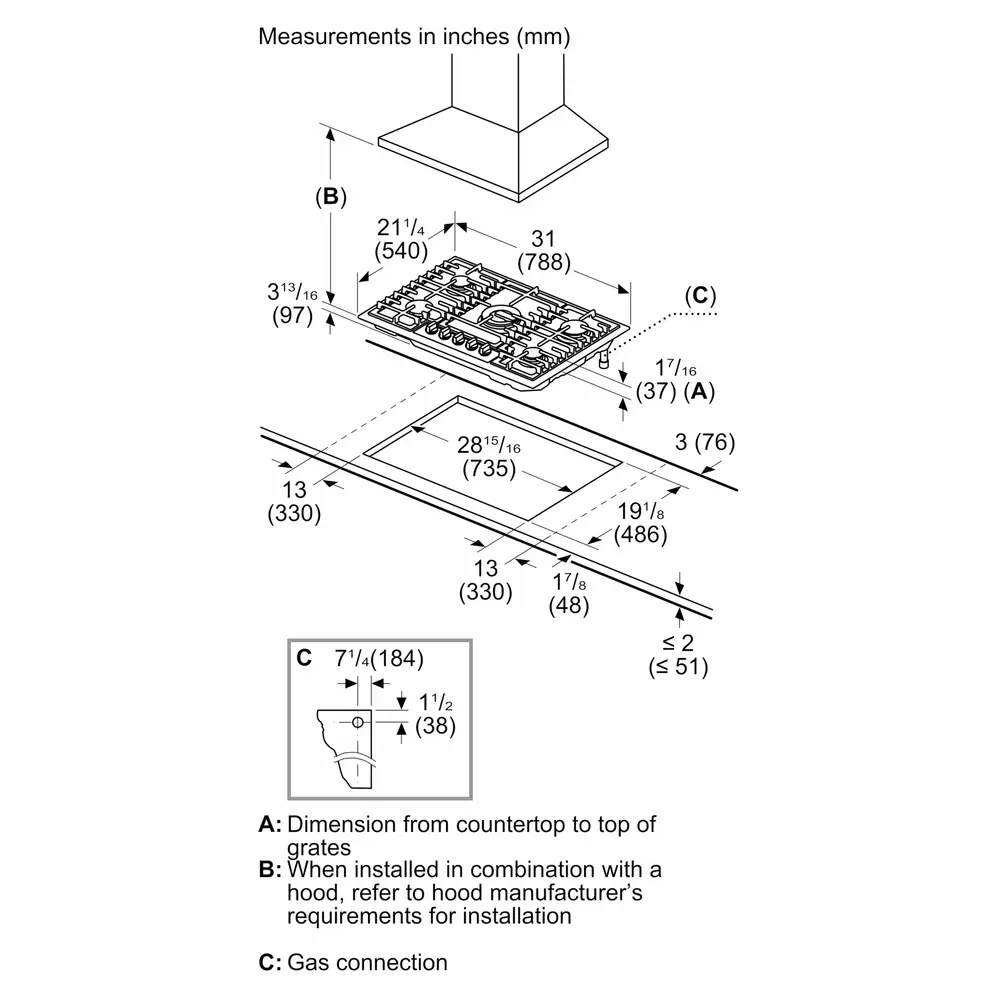

Dimensions | |
| Exterior Width | 30" |
| Width | 31" |
| Depth | 21 1/4" |
| Height | 4 1/2" |
| Cutout Width | 28 15/16" |
| Cutout Height | 2" |
| Cutout Depth | 19 1/8" |
Fuel Type | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
Style | |
| Type | Cooktop |
| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Burner Output | 17000 BTU |
| Burner/Element Output N1 | 3400 BTU |
| Burner/Element Output N2 | 6000 BTU |
| Burner/Element Output N3 | 10300 BTU |
| Burner/Element Output N4 | 6000 BTU |
| Burner/Element Output N5 | 17000 BTU |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
Certifications | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
Warranty | |
| Warranty | 1 Year Parts and Labor |
Features | |
| Sabbath Mode | Yes |
| Control Type | Knobs |
| Portable | No |
| Installs Over Oven | Yes |
| Timer | No |
| Continuous Grates | Yes |
| Cast Iron Grates | Yes |
| LP Convertible | Yes |
| Gas Conversion Kit Included | Yes |
| Downdraft | No |
