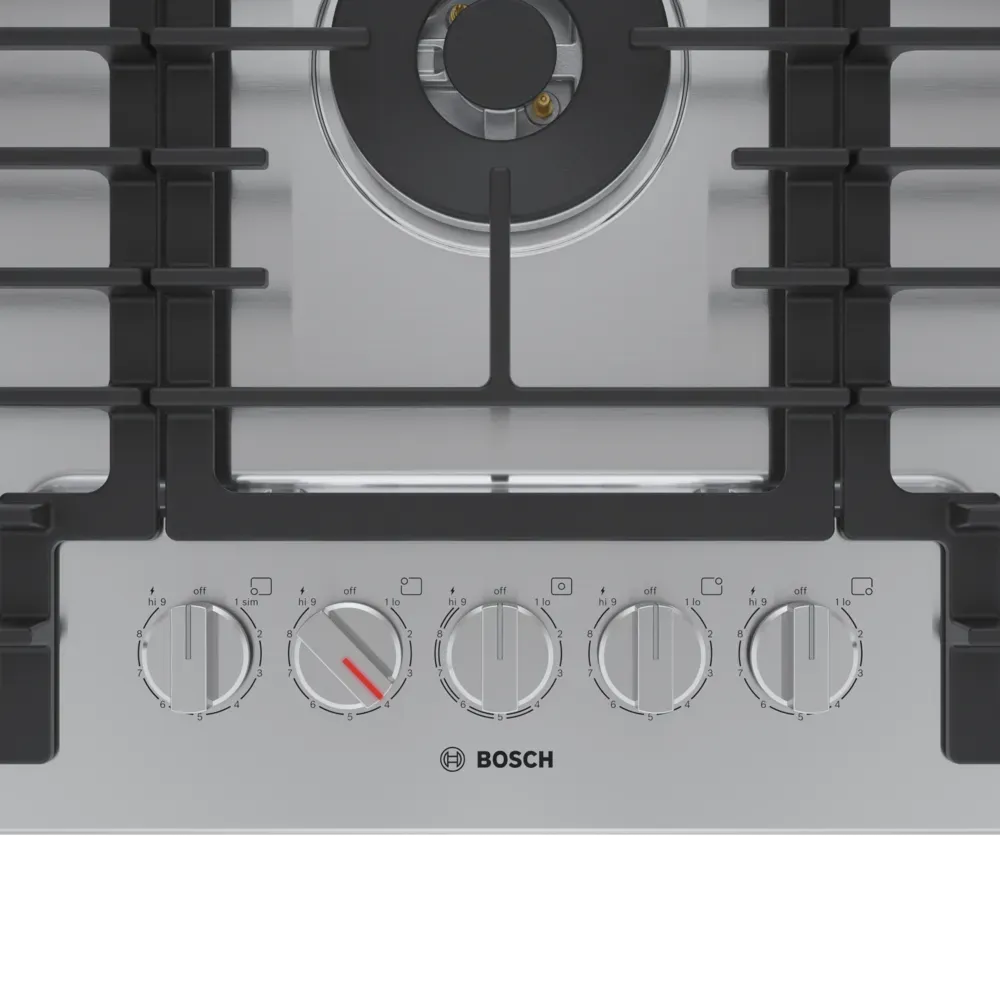

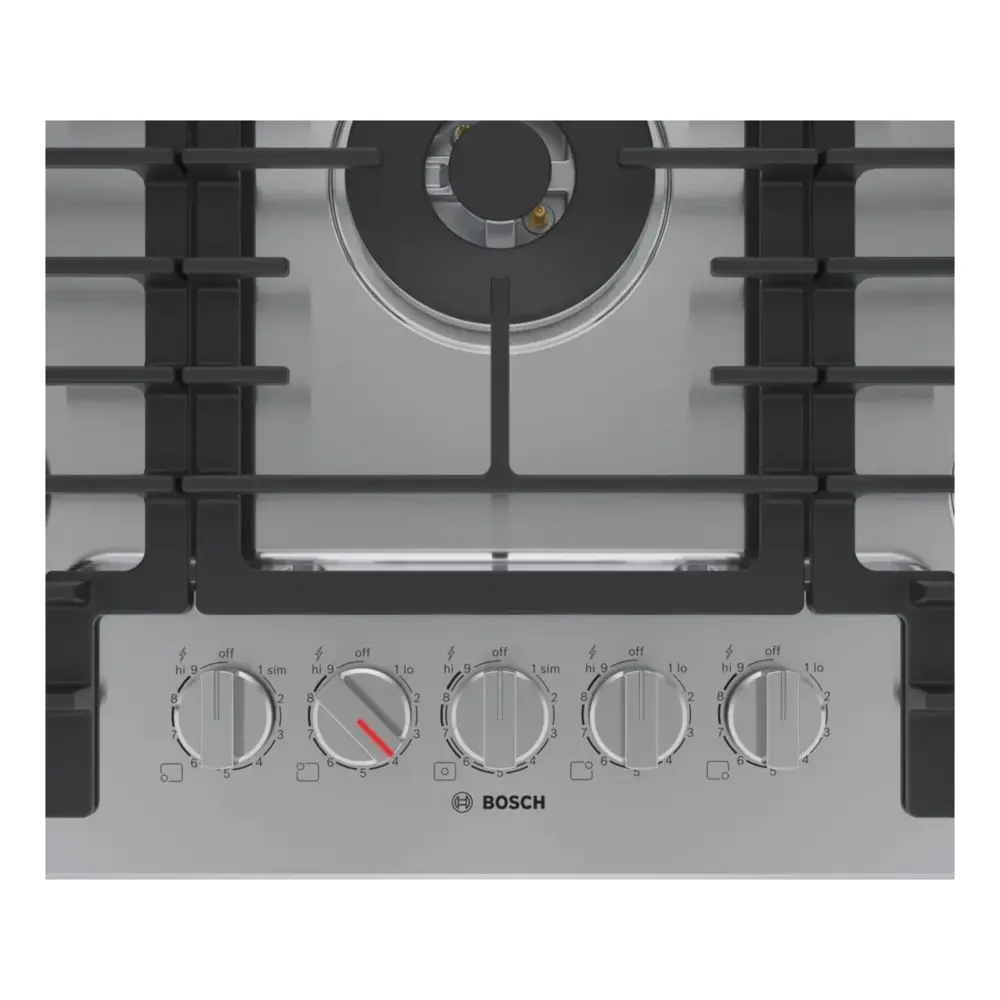

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

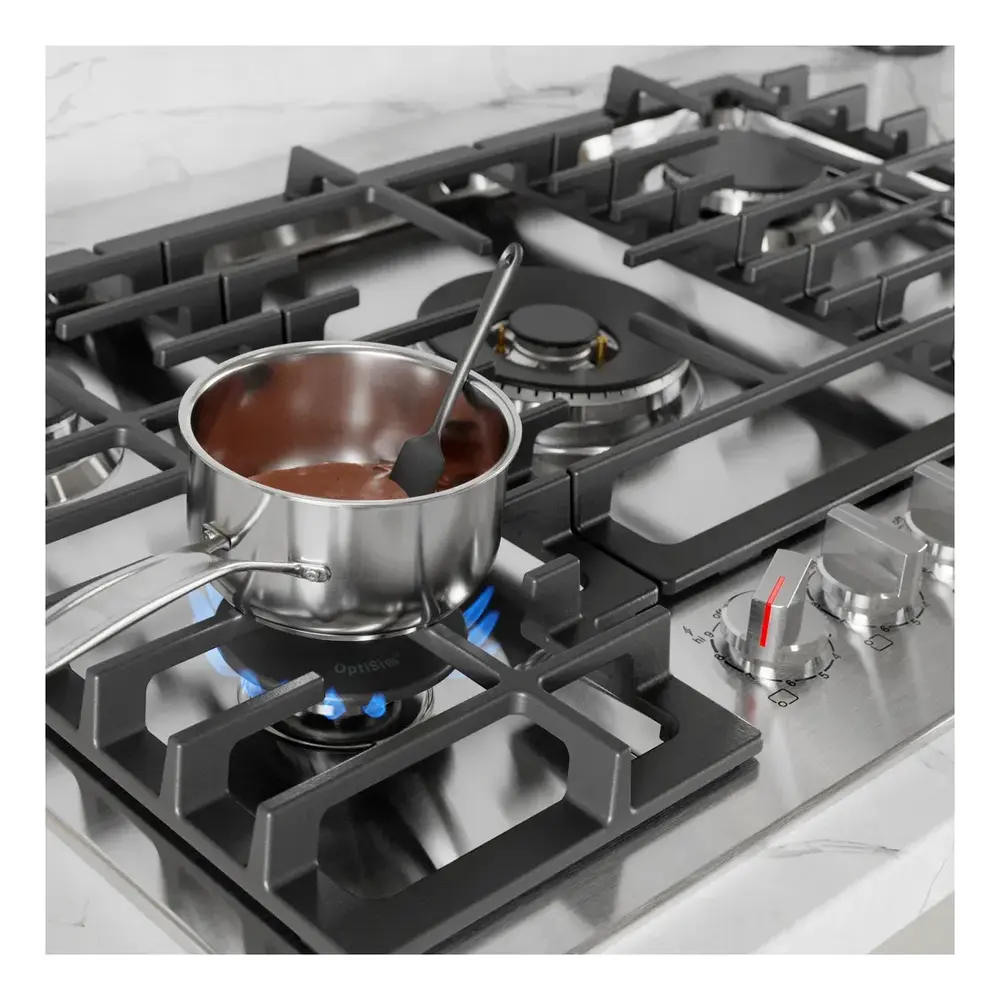

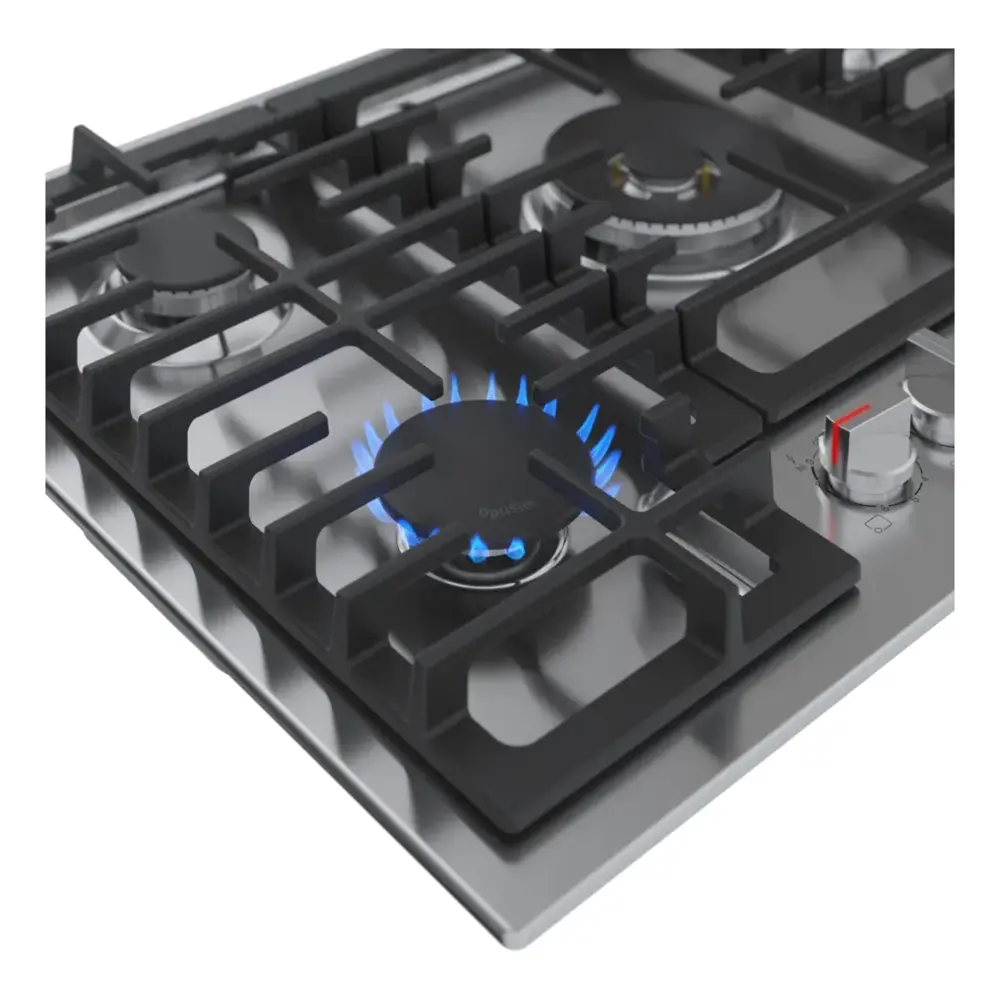

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

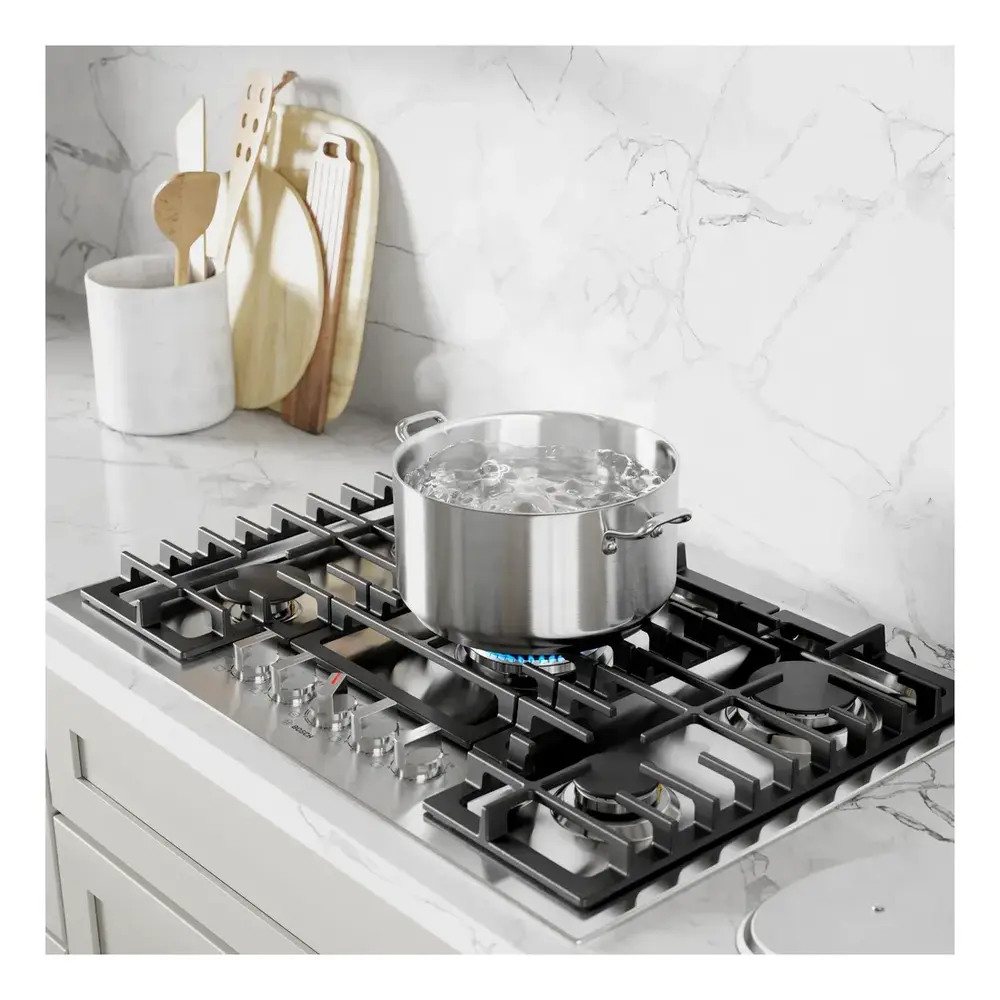

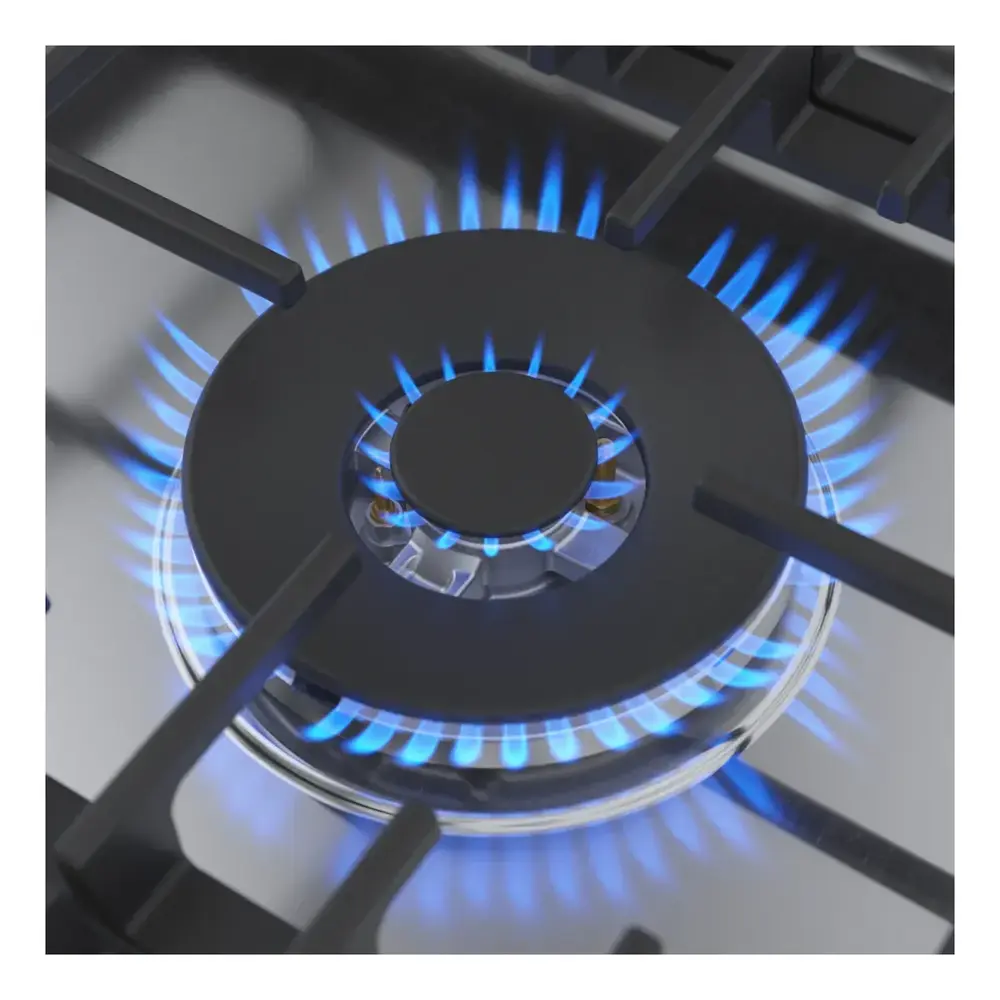

Boil water quickly with a Dual-Flame Power Burner
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
Eliminate the guesswork of cooking with FlameSelect®
Introducing FlameSelect® on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Outputs:
- Total BTU load (NG / LP) 42,700 / 41,400
- Power of front left burner (NG / LP) 3,400 / 3,400
- Power of back left burner (NG / LP) 6,000 / 6,000
- Power of center burner (NG / LP) 17,000 / 15,700
- Power of back right burner (NG / LP) 10,300 /10,300
- Power of front right burner (NG / LP) 6,000 / 6,000
Specifications | |
| Brand | Bosch |
| Series | 800 Series |
| Appliance Category | Cooktop |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |

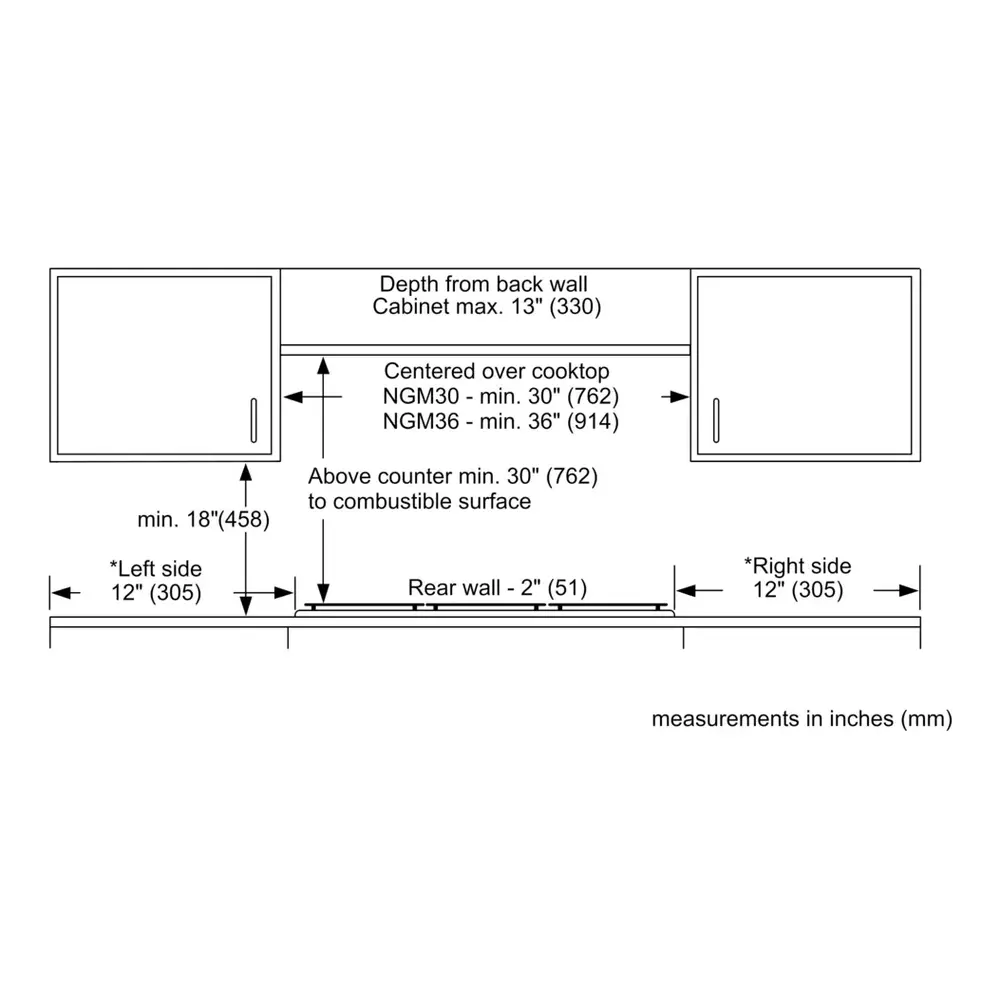

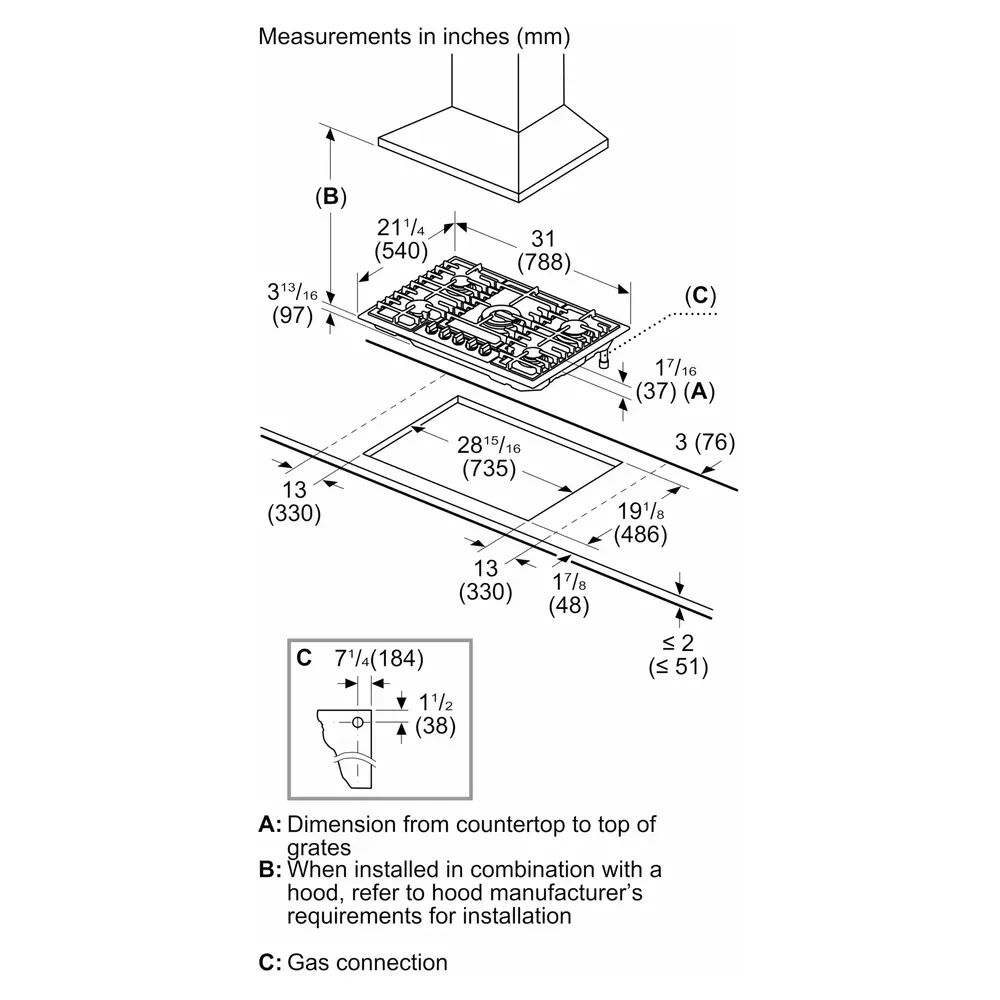

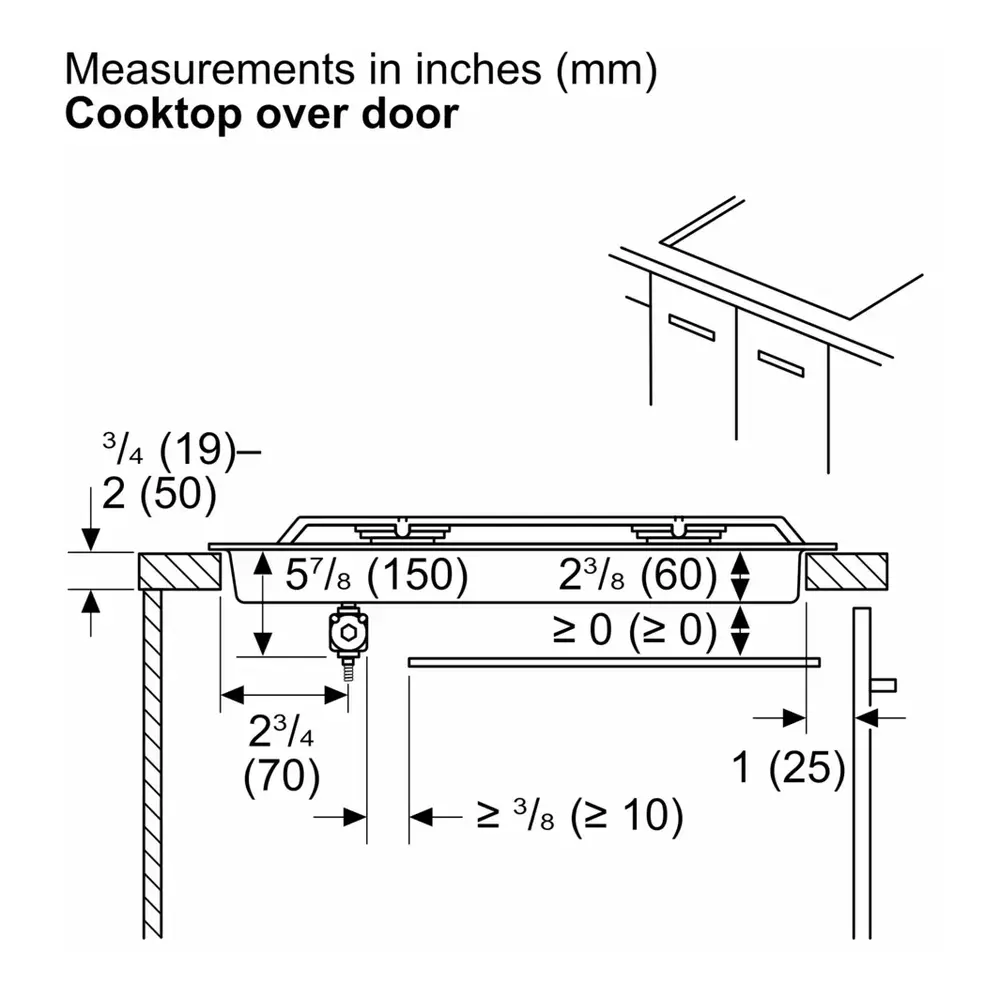

Dimensions | |
| Exterior Width | 30" |
| Width | 31" |
| Depth | 21 1/4" |
| Height | 3 3/4" |

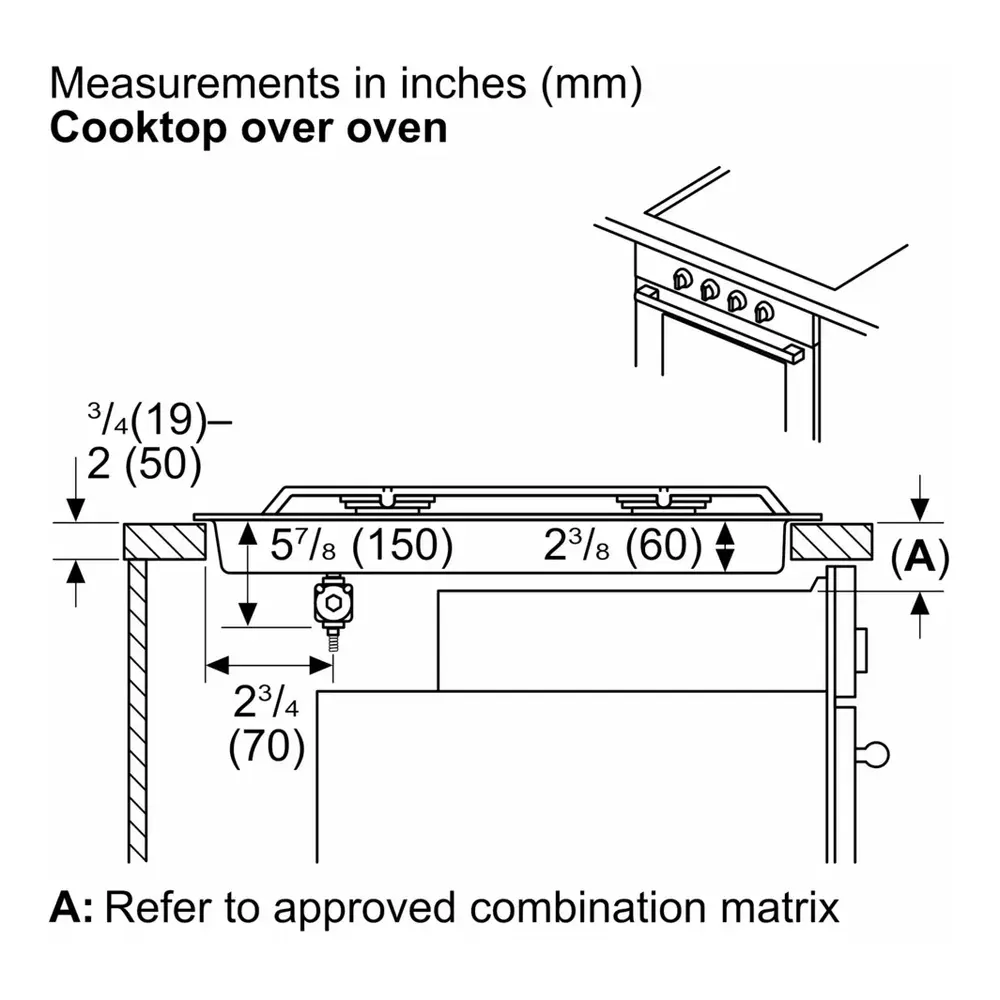

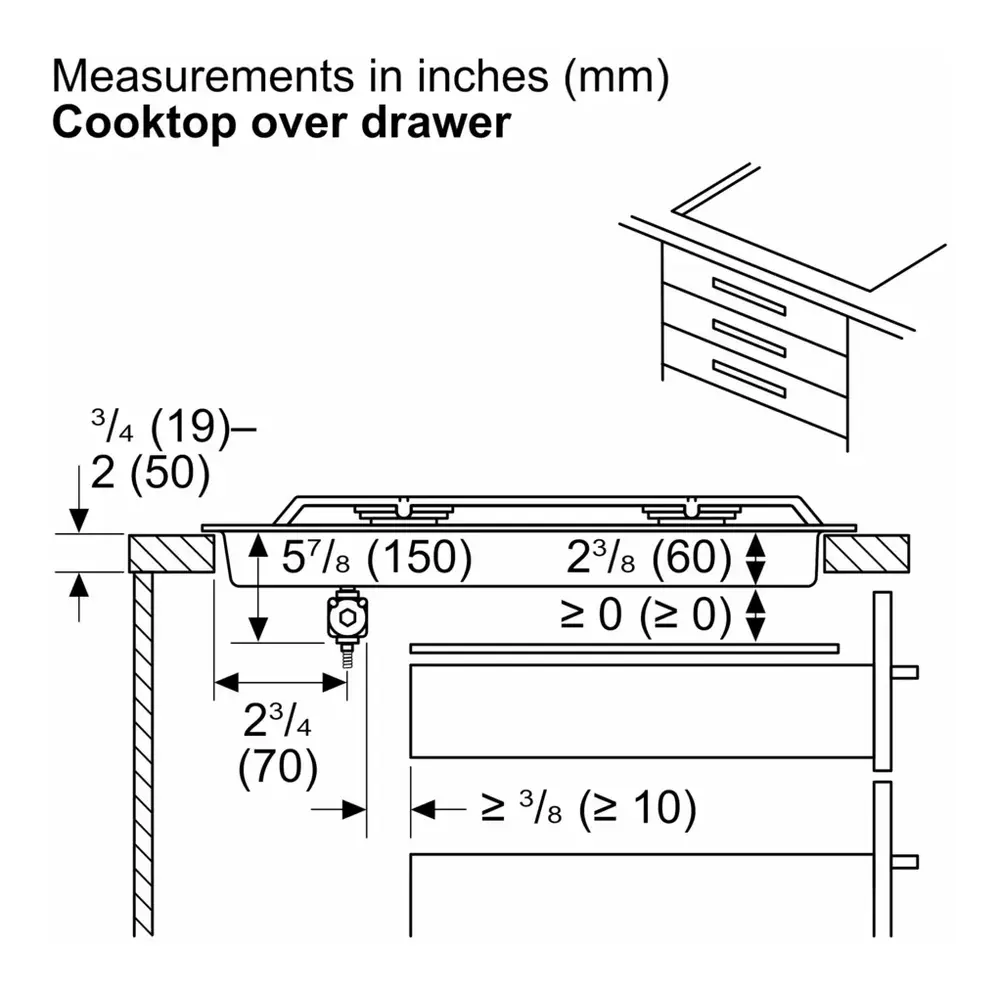

| Cutout Width | 28 15/16" |
| Cutout Height | 2" |
| Cutout Depth | 19 1/8" |
Fuel Type | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
Style | |
| Type | Cooktop |
| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Burner Output | 17000 BTU |
| Burner/Element Output N1 | 3400 BTU |
| Burner/Element Output N2 | 6000 BTU |
| Burner/Element Output N3 | 17000 BTU |
| Burner/Element Output N4 | 10300 BTU |
| Burner/Element Output N5 | 6000 BTU |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
Certifications | |
| ADA Compliant | Yes |
Warranty | |
| Warranty | 1 Year Parts and Labor |
| LP Convertible | Yes |
| Gas Conversion Kit Included | Yes |
| Downdraft | No |
