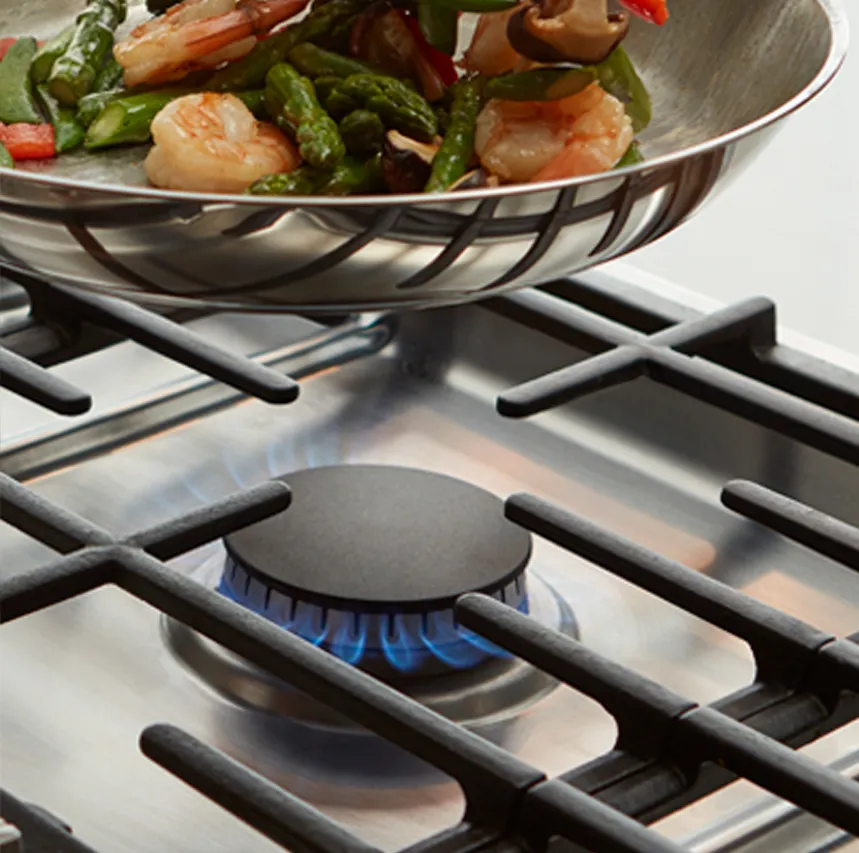

11,500 BTU Burner
11,500 BTU burner for optimal cooking results
Heavy-Duty Metal Knobs
Heavy-duty metal knobs for a premium look and feel
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Outputs:
- Total BTU load (NG / LP) 30,800 / 27,000
- Power of front left burner (NG / LP) 5,000 / 5,000
- Power of back left burner (NG / LP) 9,300 / 7,000
- Power of back right burner (NG / LP) 11,500 / 10,000
- Power of front right burner (NG / LP) 5,000 / 5,000
Specifications | |
| Brand | Bosch |
| Series | 500 Series |
| Appliance Category | Cooktop |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 24" |
| Width | 23" |
| Depth | 20 1/2" |
| Height | 2 3/4" |

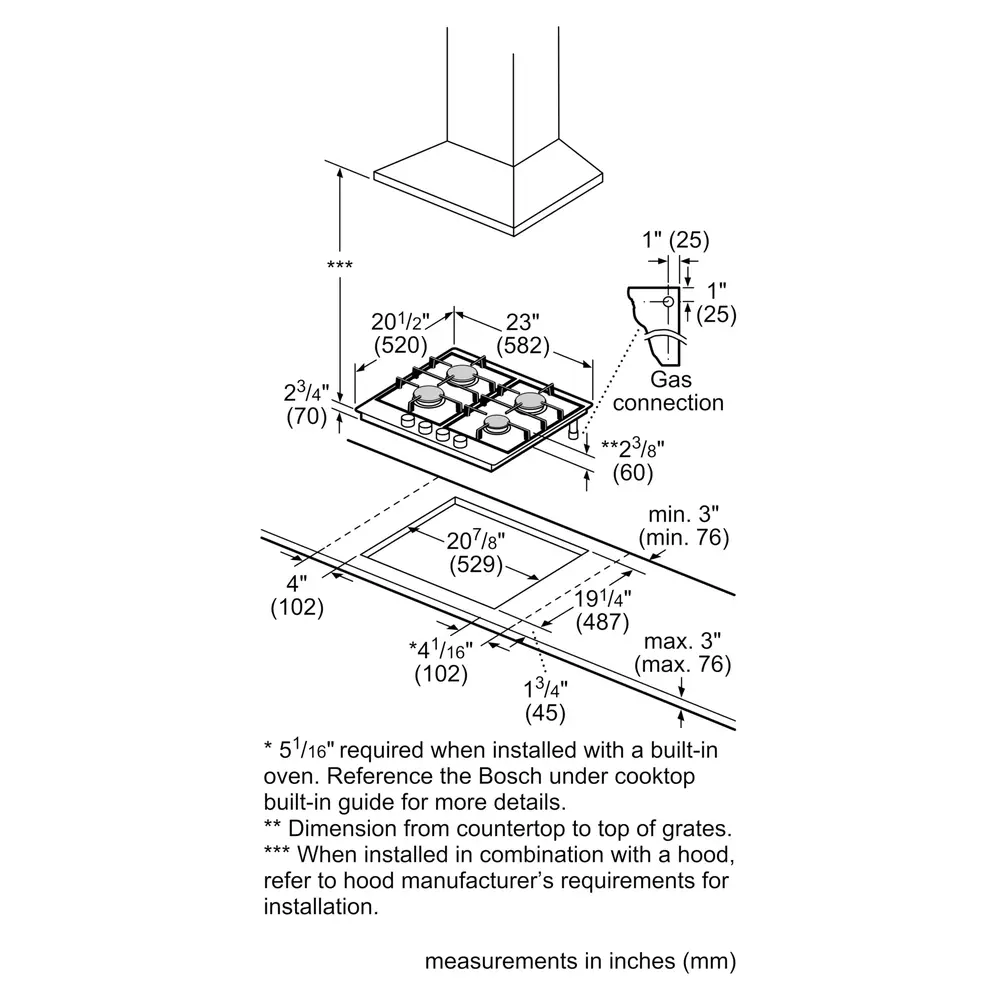

| Cutout Width | 20 7/8" |
| Cutout Height | 2 3/4" |
| Cutout Depth | 19 1/4" |
Fuel Type | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
Style | |
| Type | Cooktop |
| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 4 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Burner Output | 11500 BTU |
| Burner/Element Output N1 | 5000 BTU |
| Burner/Element Output N2 | 9300 BTU |
| Burner/Element Output N3 | 11500 BTU |
| Burner/Element Output N4 | 5000 BTU |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
Certifications | |
| ADA Compliant | Yes |
Warranty | |
| Warranty | 1 Year Parts and Labor |
| LP Convertible | Yes |
| Gas Conversion Kit Included | Yes |
| Downdraft | No |
