30″ Gas Cooktop 500 Series – Stainless Steel NGM5058UC
- 5 Burners: 5 high-efficiency gas burners allow you to cook multiple dishes at once
- OptiSim® Burner: the wide & thick burner design diffuses heat evenly and reduces hot spots — perfect for simmering delicate sauces or melting chocolate.
- Easy to clean: low-profile cooking surface keeps spills contained and makes clean-up easier than ever.
- Continuous Cast Iron Grates: makes it easy to slide pots & pans from burner to burner.
- Sealed Burners: help keep food and liquids on the cooktop surface for easier cleanup.

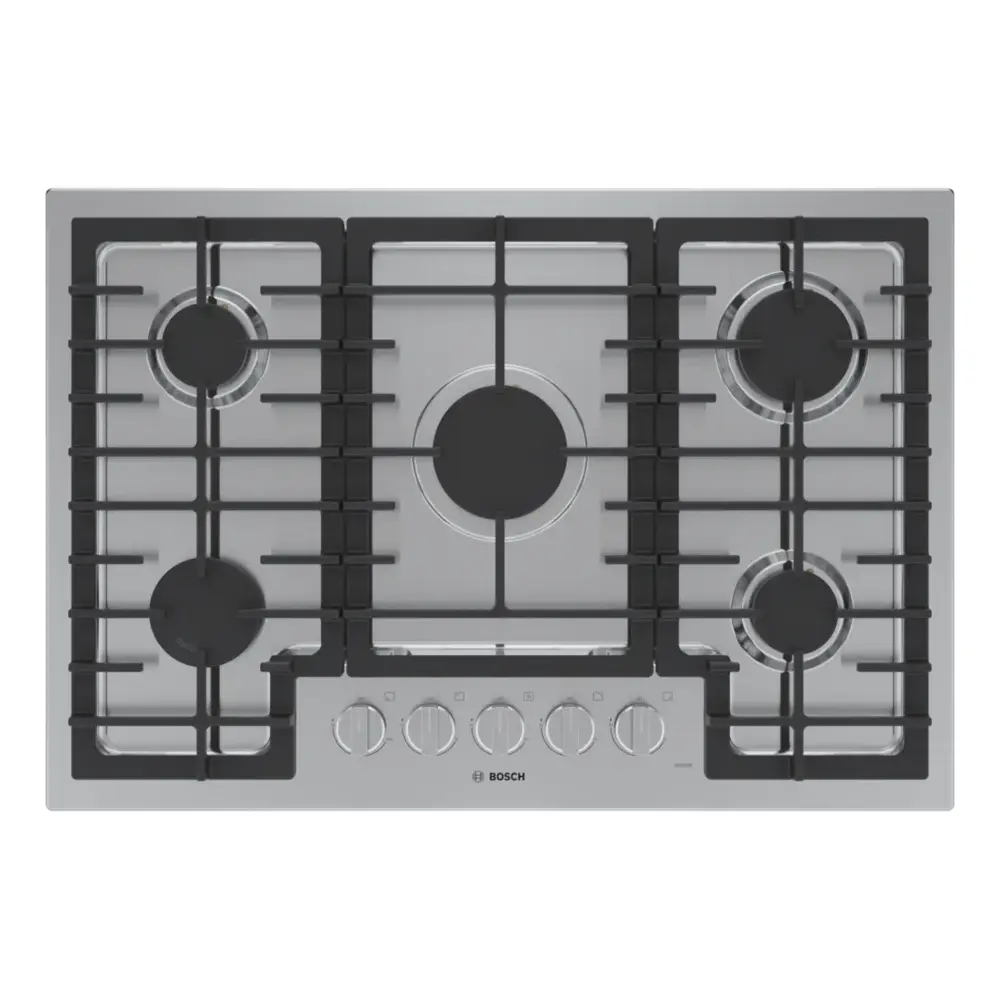

Fit multiple pans and cook with 5 burners
5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.

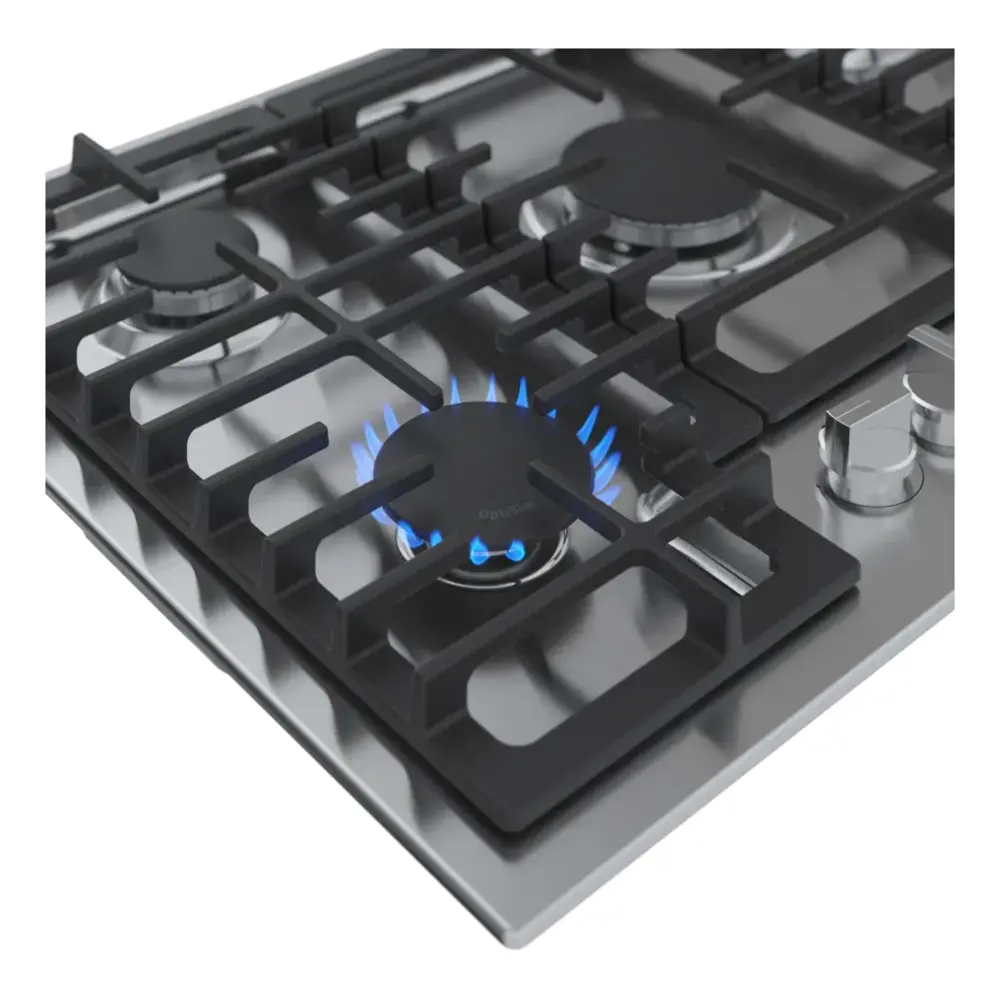

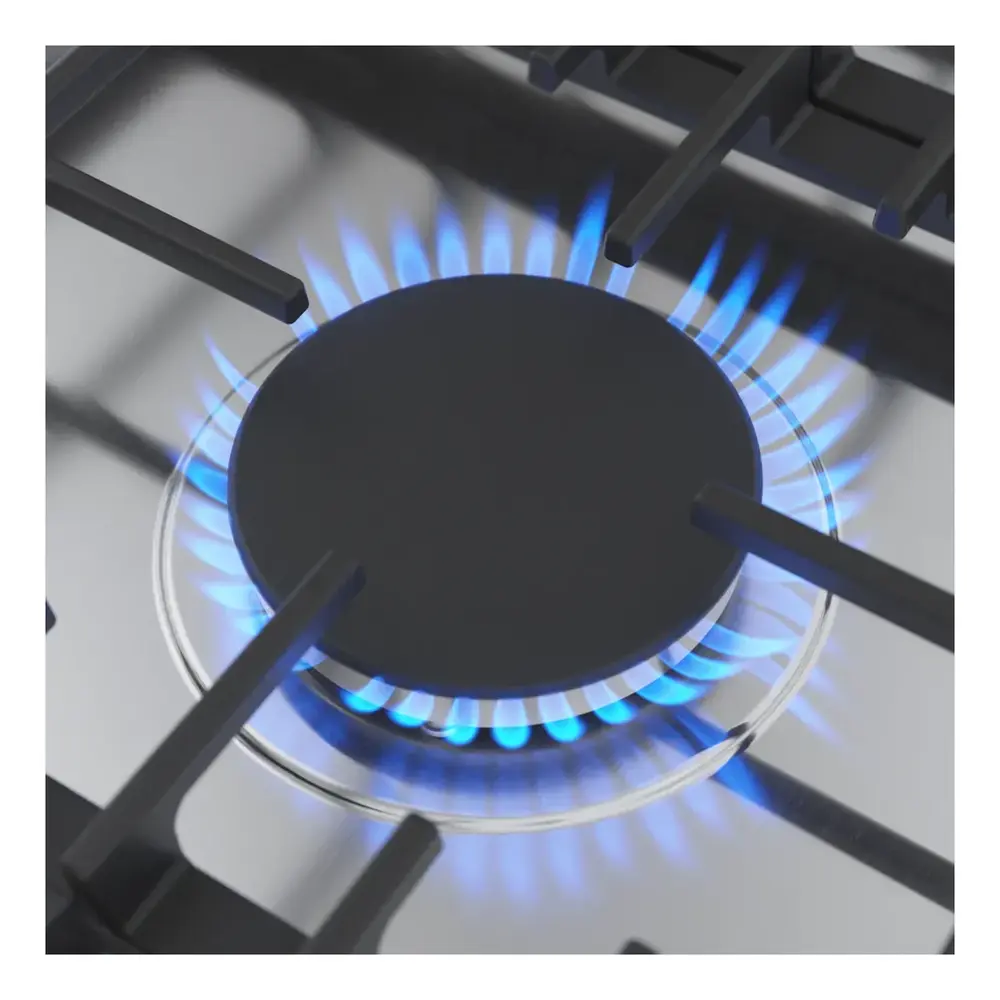

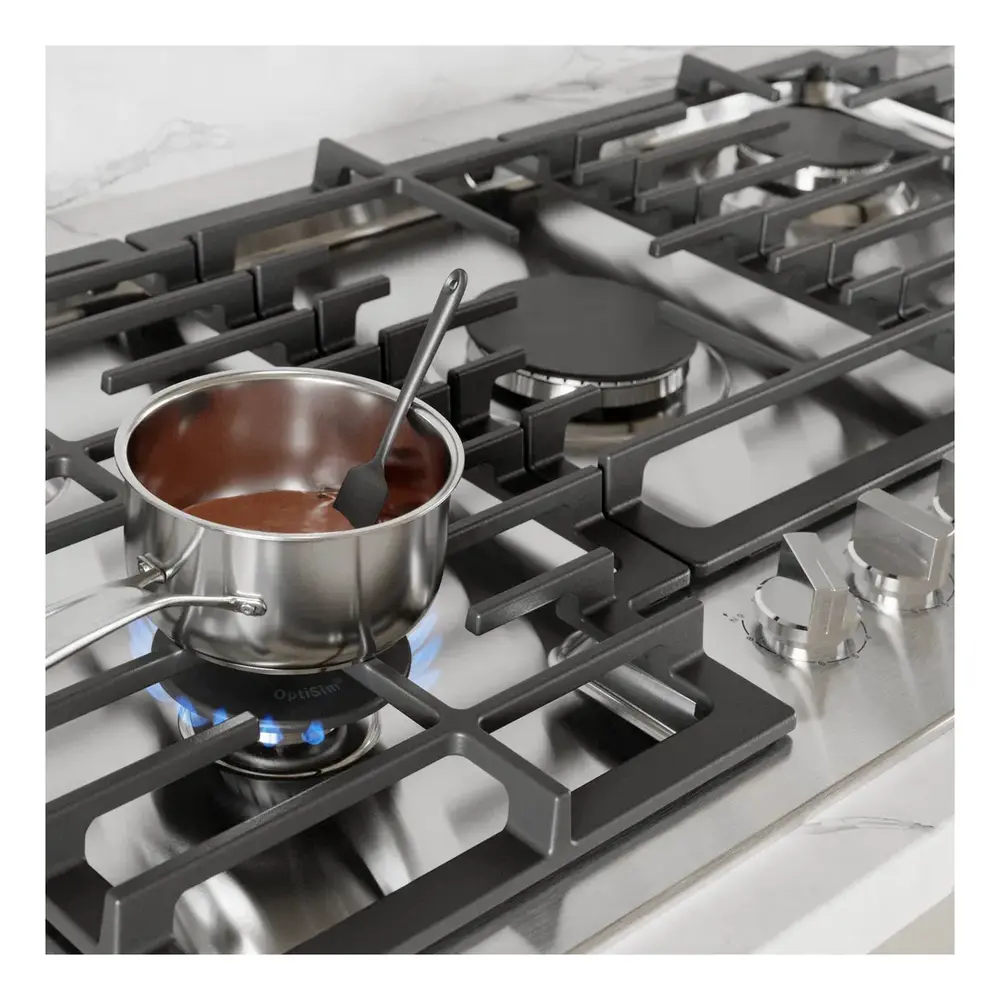

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

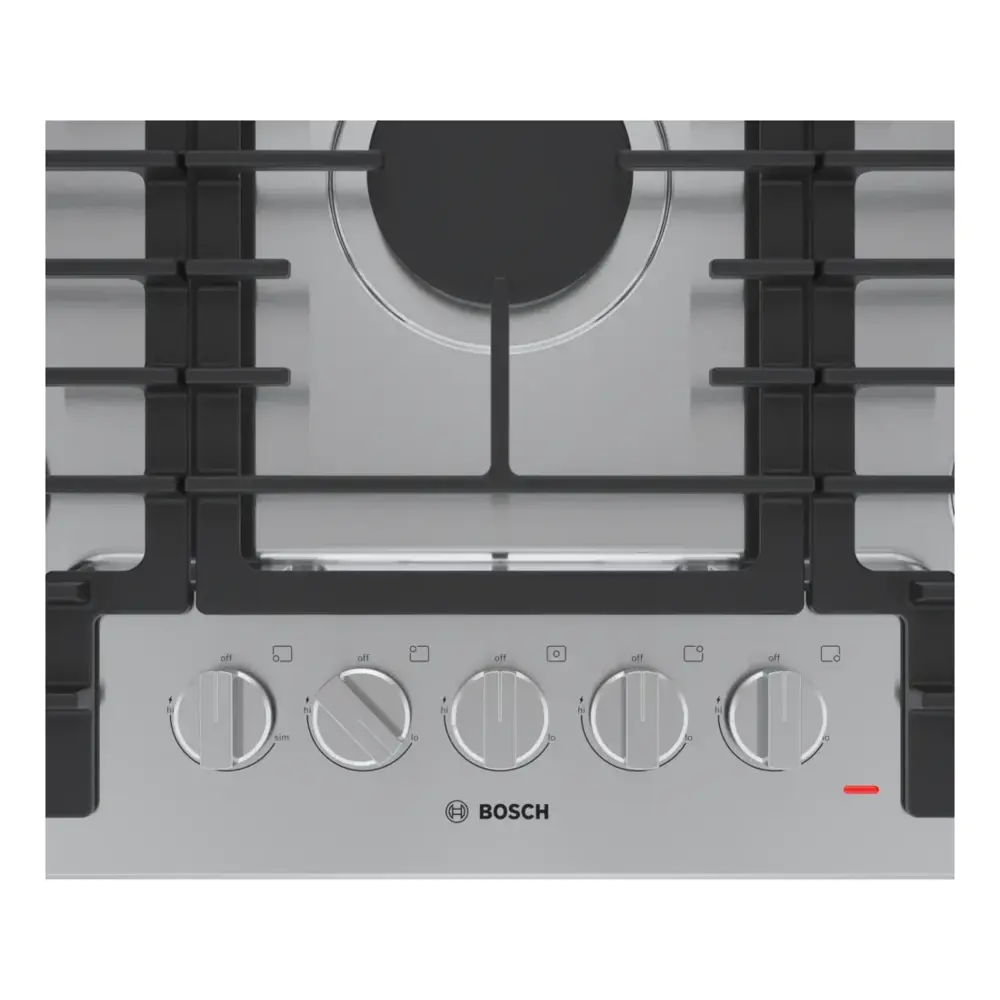

Distinctive red LED light indicates if burners are on.
Seamless, one-piece stainless steel design makes clean-up simple.
ADA Compliant
Element Performance
- Total BTU load (NG / LP) 41,700 / 41,700
- Power of front left burner (NG / LP) 3,400 / 3,400
- Power of back left burner (NG / LP) 6,000 / 6,000
- Power of center burner (NG / LP) 16,000 / 16,000
- Power of back right burner (NG / LP) 10,300 / 10,300
- Power of front right burner (NG / LP) 6,000 / 6,000
Specifications | |
| Brand | Bosch |
| Series | 500 Series |
| Appliance Category | Cooktop |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 30" |
| Width | 31" |
| Depth | 21 1/4" |
| Height | 3 3/4" |
| Cutout Width | 28 15/16" |
| Cutout Depth | 19 1/8" |
Fuel Type | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
Style | |
| Type | Cooktop |
| Pro-Style | Yes |
| Control Location | Front |
Cooking Surface | |
| Burner/Element Type | Sealed Burner |
| Number of Burners/Elements | 5 |
| Grill | No |
| Griddle | No |
| French Top | No |
| Highest Burner Output | 16000 BTU |
| Burner/Element Output N1 | 3400 BTU |
| Burner/Element Output N2 | 6000 BTU |
| Burner/Element Output N3 | 16000 BTU |
| Burner/Element Output N4 | 10300 BTU |
| Burner/Element Output N5 | 6000 BTU |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
Certifications | |
| ADA Compliant | Yes |
Warranty | |
| Warranty | 1 Year Parts and Labor |
| LP Convertible | Yes |
| Gas Conversion Kit Included | Included |
| Downdraft | No |
