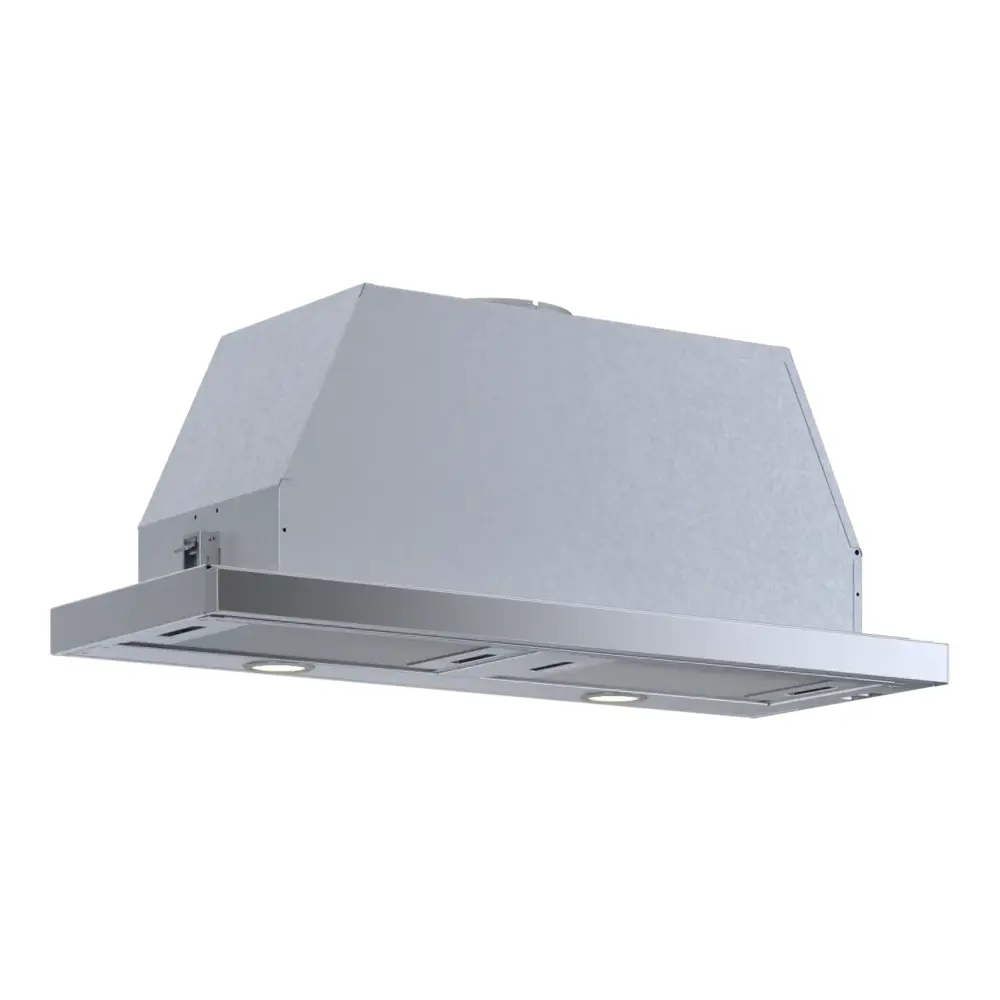

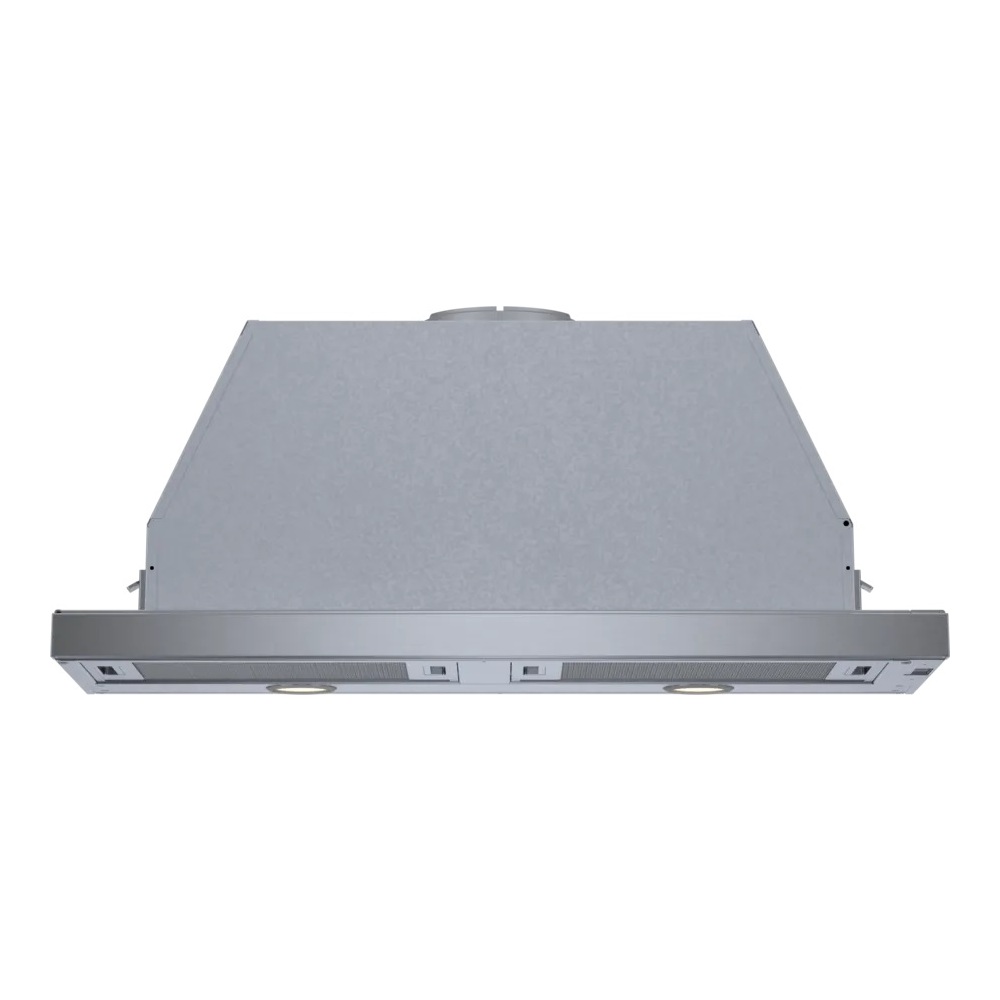

Pull-Out Hood
The pull-out hood visor fully extends during use, and neatly tucks away when not needed
Three Speeds
Switch between three different speed levels to best suit your cooking style.
500 CFM Blower
The 500 CFM integrated blower effectively removes odors
Custom Cabinetry Available
Front stainless-steel panel is replaceable with custom cabinetry panel

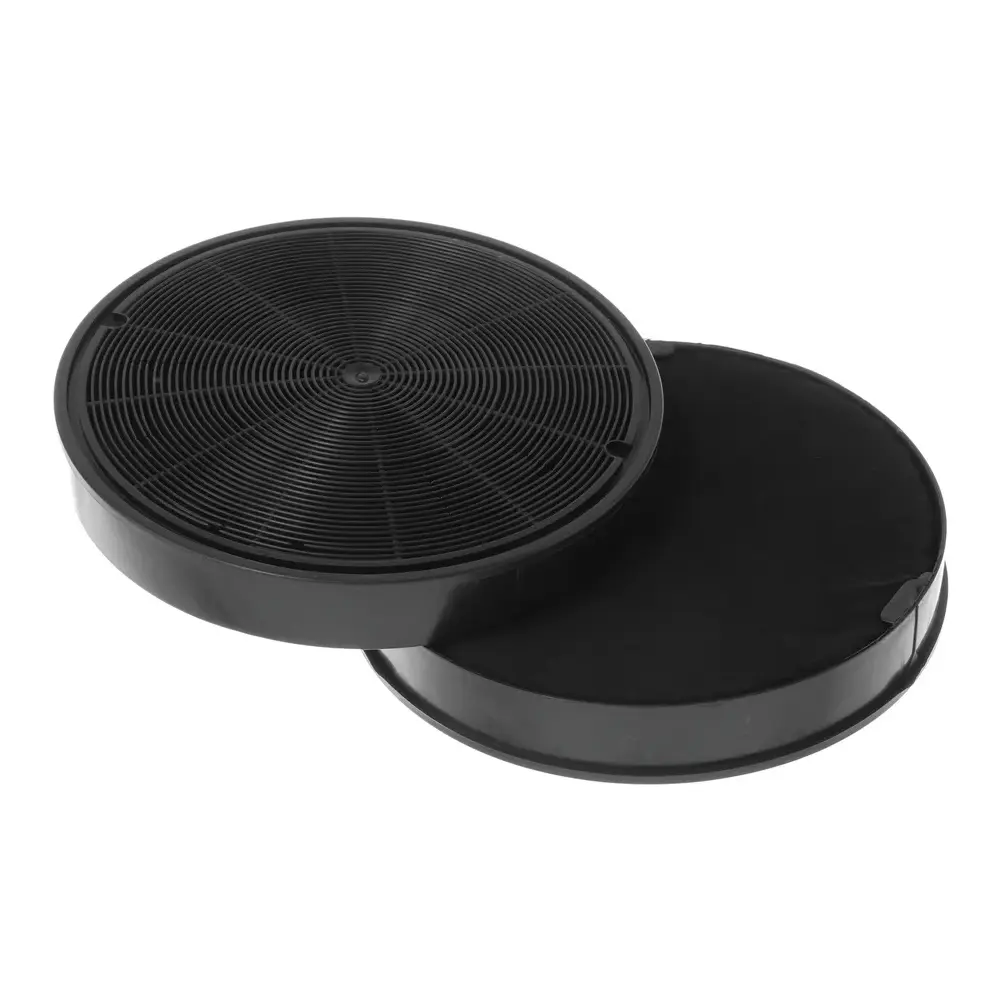

Get rid of odors with charcoal (Sold Separately)
When the vent hood is installed in recirculation mode, the air is picked up and passes through multiple filters including the charcoal filter that absorbs odors. This freshened air is then pushed back into the kitchen. Over time, activated charcoal particles saturate and stop blocking off odors leaving your kitchen with strong smells.

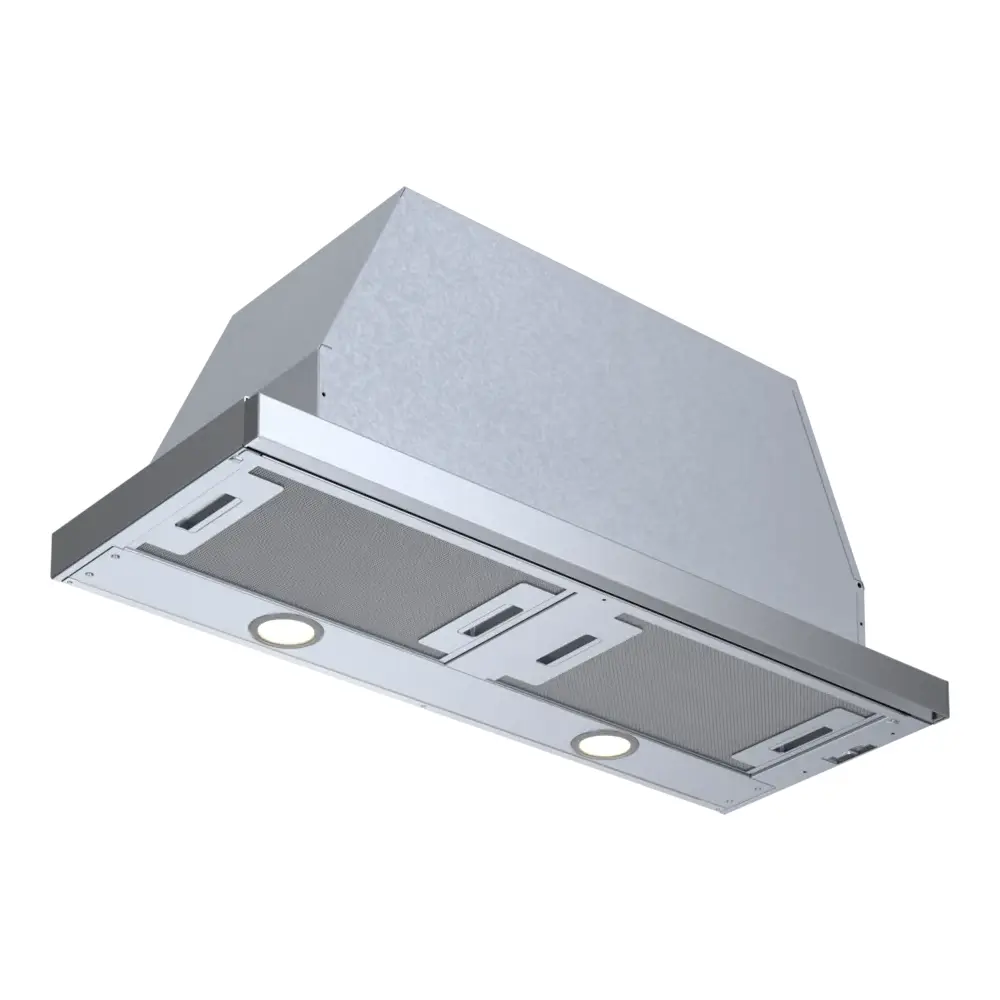

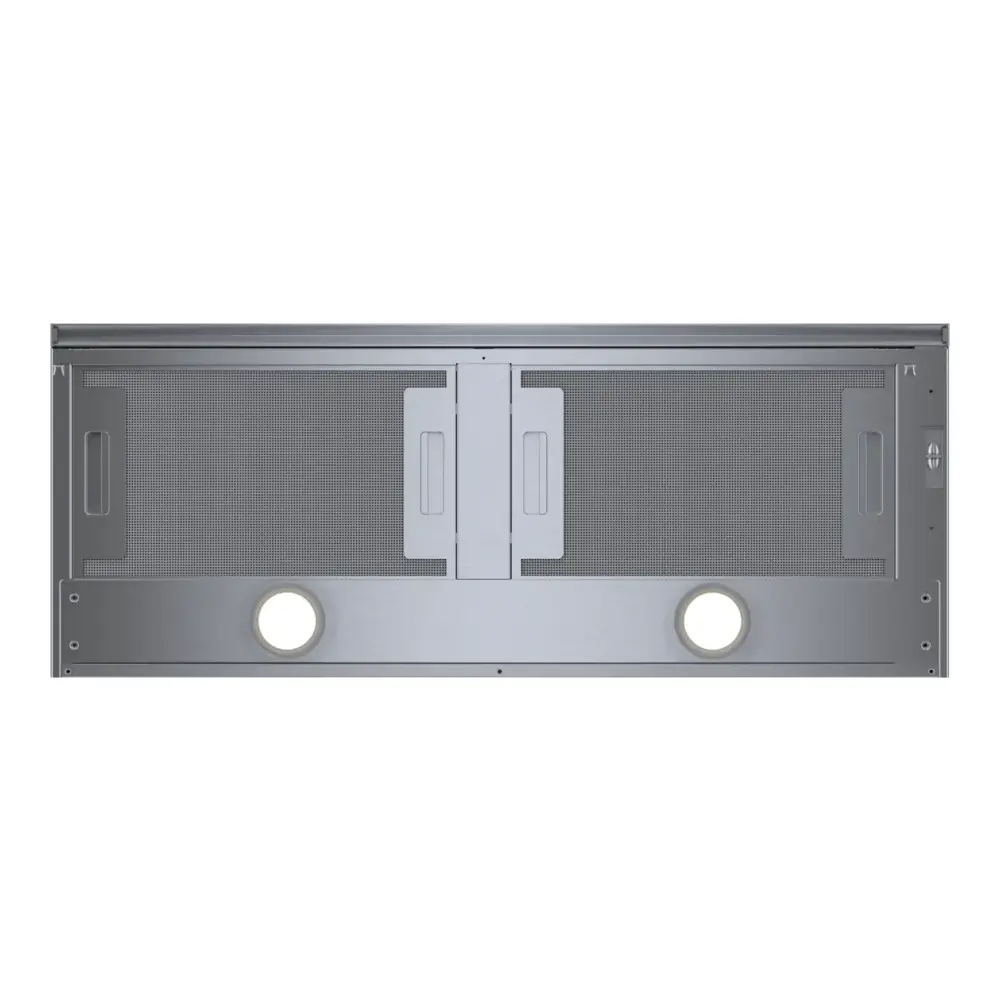

Filters that are Dishwasher Safe
Dishwasher safe mesh filters make cleaning and maintenance easy.
Two Halogen Lights
2 Halogen Lights – 12 Volt, 20-Watt Max., G-4 Base
Guard against splatter
A sleek front panel protects your walls from splatters.
Can convert to Recirculation Mode
Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
Specifications | |
| Brand | Bosch |
| Series | 500 Series |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |

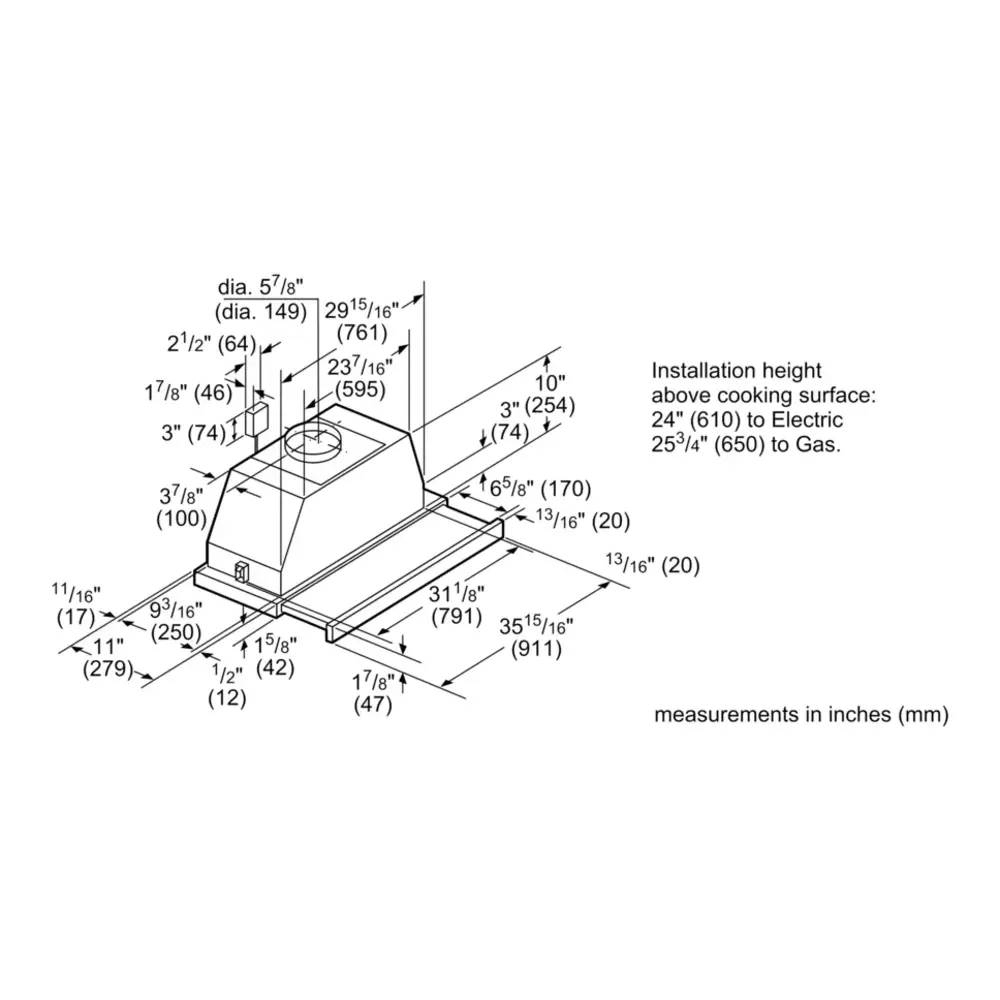

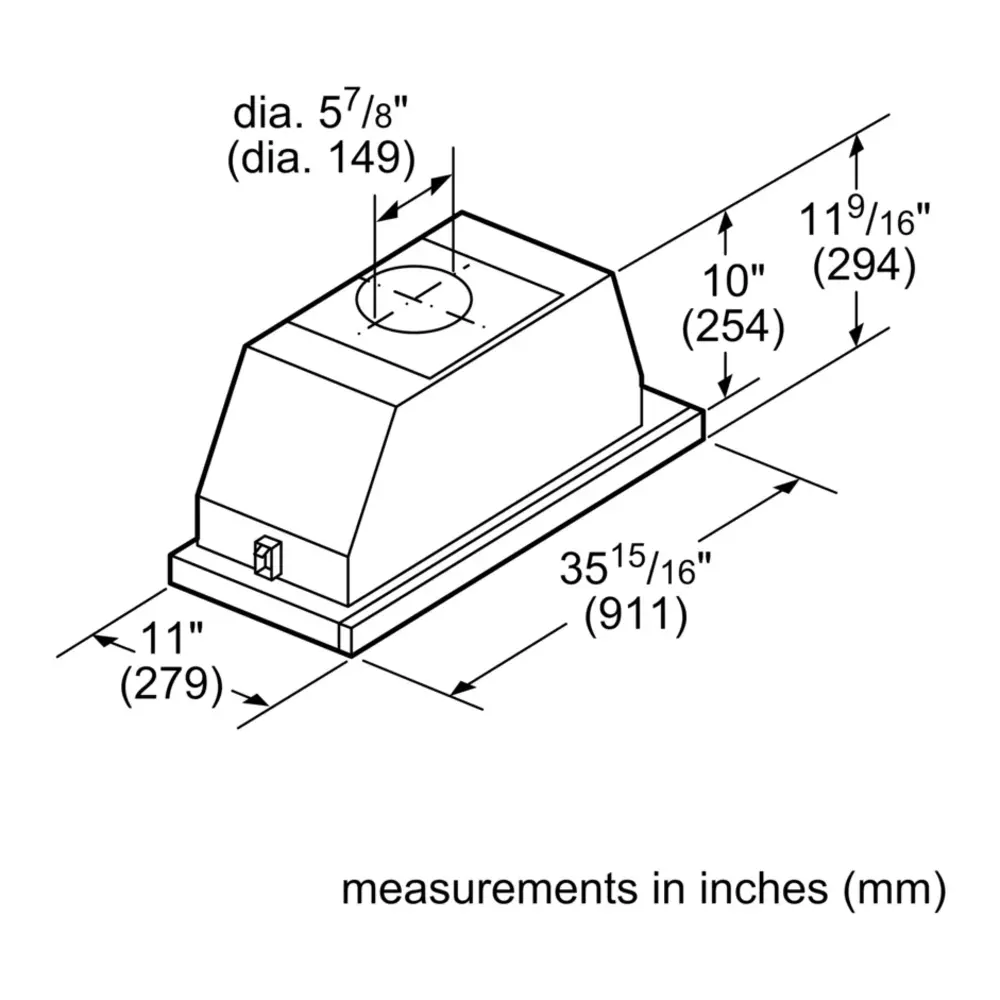

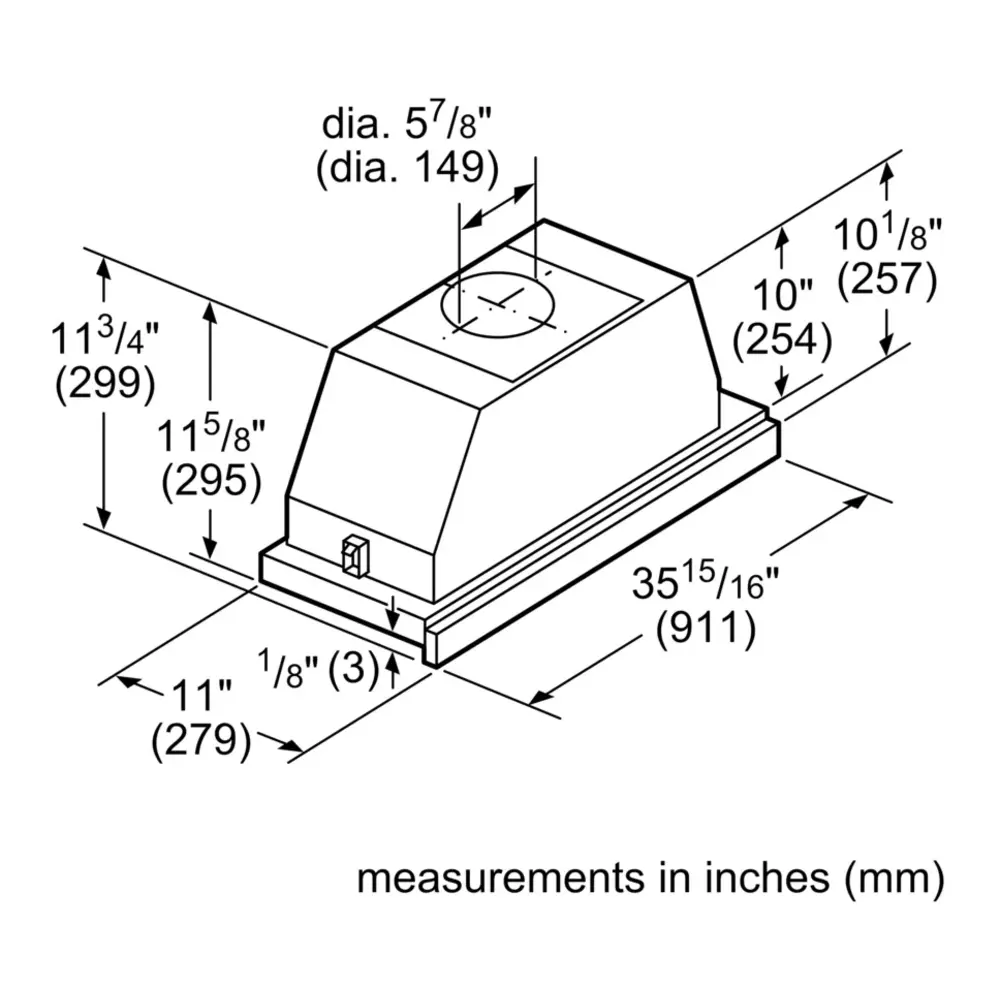

Dimensions | |
| Exterior Width | 36" |
| Width | 35 7/8" |
| Depth | 11 13/16" |
| Height | 11 9/16" |
Style | |

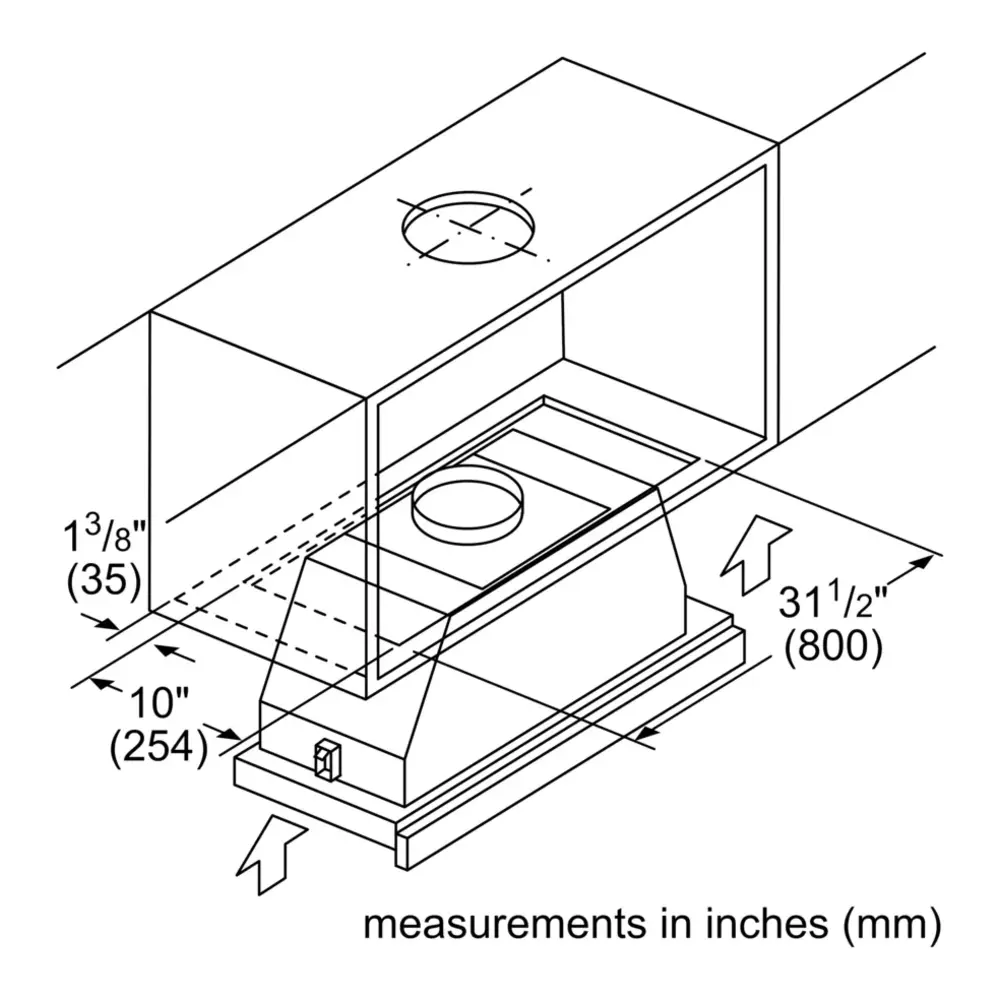

| Type | Cabinet Insert |
| Mounting Type | Under Cabinet |
| Fan | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Frequency | 60 Hz. |
| Vent Location | Top |
Certifications | |
| UL Listed | Yes |
| cUL Listed | Yes |
Features | |
| Convertible Ducting | Yes |
| CFM | 500 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 |
| Light | Yes |
| Recirculating Kit | Sold Separately |
| Slide-Out | Yes |
