Features:

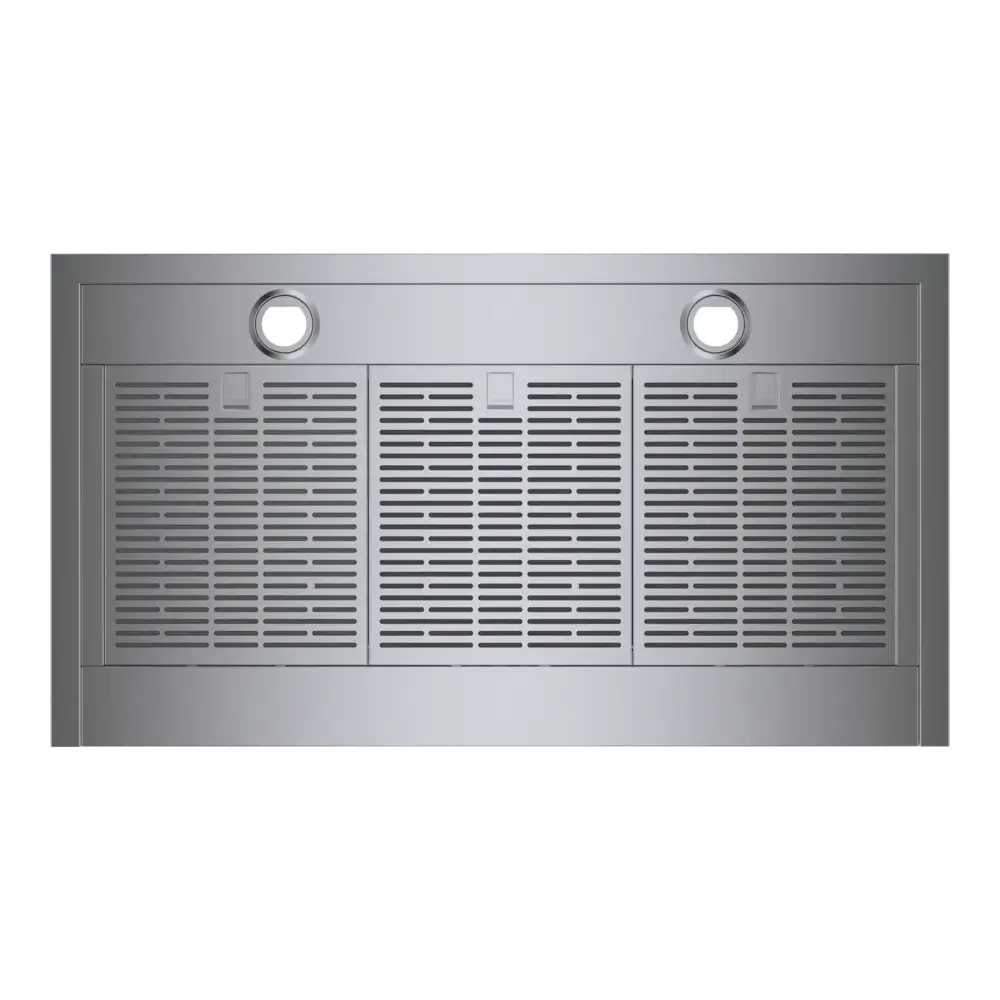

Filters that are Dishwasher Safe
Dishwasher safe mesh filters makes cleaning and maintenance easy.
Can convert to Recirculation Mode
Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
Get rid of odors with charcoal (Sold Separately)
When the vent hood is installed in recirculation mode, the air is picked up and passes through multiple filters including the charcoal filter that absorbs odors. This freshened air is then pushed back into the kitchen. Over time, activated charcoal particles saturate and stop blocking off odors leaving your kitchen with strong smells.
Two Halogen Lights
Illiminate your cooktop to better see while cooking.
Design
- Duct Extension Accessory Kit Available for 9′ to 11.5′ Ceilings
Performance
- 600 CFM
- 2 Halogen Lights – 12 Volt, 20 Watt Max., G-4 Base
- 8″ round duct at discharge.
Efficiency
- Blower will automatically turn on at high speed if excessive heat is sensed in the control area.
- Absorb odors with charcoal replacement filters.
Convenience

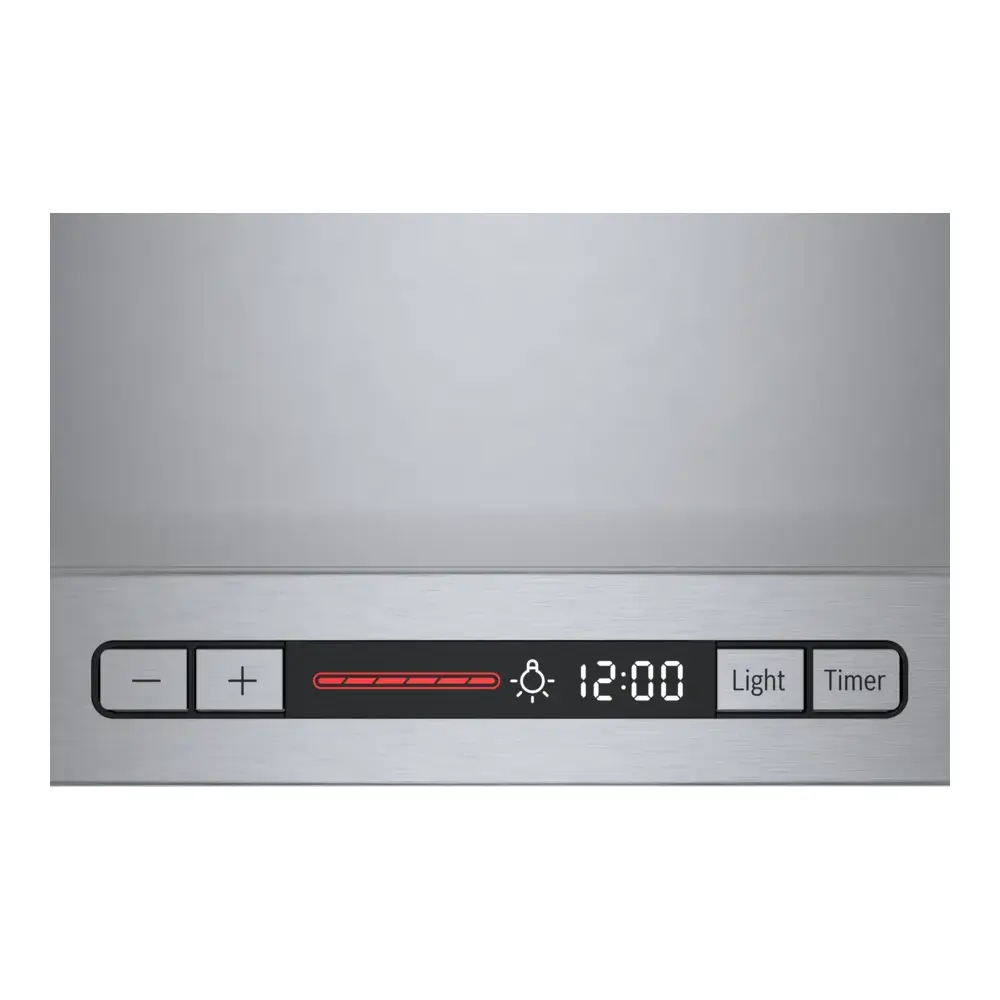

- Convenient timer built into control from 1-60 minutes.
- Signal on LCD display will illuminate as a reminder to check filters for cleaning.
- Audible tone when select controls are pressed.
Specifications | |
| Brand | Bosch |
| Series | 500 Series |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |

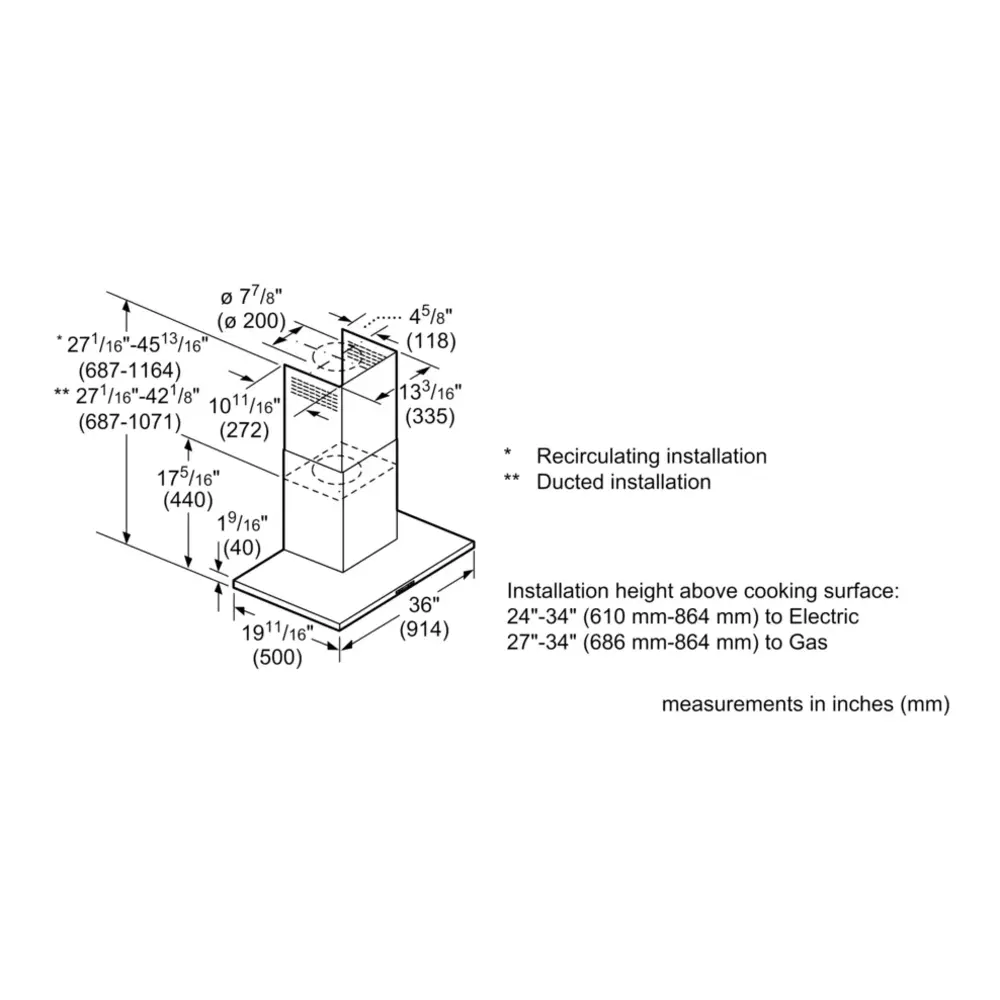

Dimensions | |
| Exterior Width | 36" |
| Width | 36" |
| Depth | 19 11/16" |
| Height | 42 1/8" |
| Minimum Duct Cover Height | 27 1/16" |
Style | |
| Style | Chimney Style |
| Type | Hood |
| Mounting Type | Wall Mount |
| Glass Canopy | No |
| Fan | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 15 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 8" |
| Vent Location | Top |
Certifications | |
| cUL Listed | Yes |
Features | |
| Convertible Ducting | Yes |
| CFM | 600 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Adjustable Duct Cover | Yes |
| Automatic Turn On | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 4 |
| Light | Yes |
| Recirculating Kit | Sold Separately |
