- Series: Alta
- Color: White
- Width: 29 7/8"
- Height: 5"
- Depth: 22"
- Type: Hood
- Style: Standard Hood
- CFM: 300
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 1.4

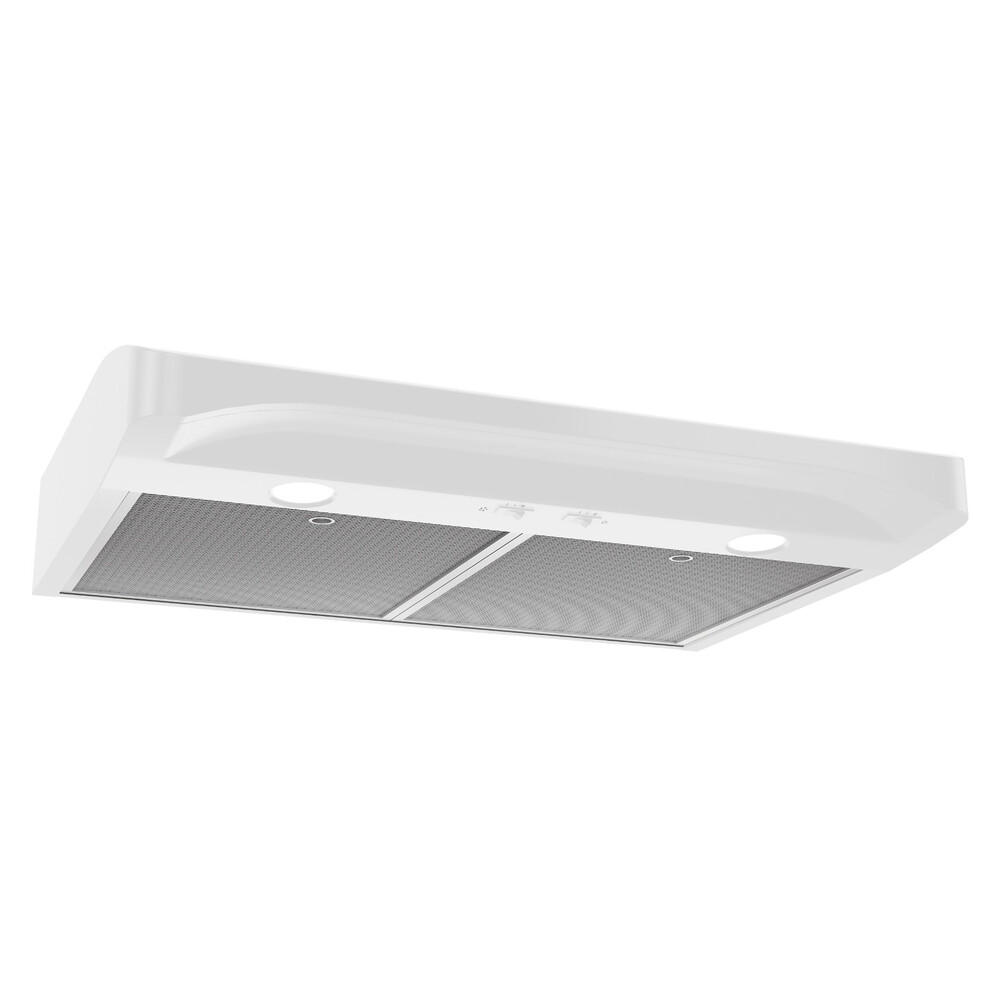

Broan ALT130WW 30 inch Alta Series Under Cabinet Range Hood with 300 CFM, Micro-Mesh Filters, LED Lighting and Rocker Switch Controls (White)
Top Quality Store on GoogleAvailability: In Stock (Fast Delivery)
Availability: In Stock (Fast Delivery)
Availability: In Stock (Fast Delivery)
- Series: Alta
- Color: White
- Width: 29 7/8"
- Height: 5"
- Depth: 22"
- Type: Hood
- Style: Standard Hood
- CFM: 300
- Blower Type: Internal
- Light Bulb Type: LED
- Venting Type: Convertible
- Voltage: 120
- Amps: 1.4
Features:
Captur™ System
The Captur™ system’s advanced blower/wheel design features a centric inlet to remove smoke and odor faster.
300 CFM
Two-speed blower control exhausts at 300 MAX Blower CFM
1.5 Sones
Forward placement and smooth-flow blower wheel design ensure quiet, 1.5 sones operation at normal speed
Rocker Switches
Hidden on/off rocker switches control blower speeds and light levels
Micro-Mesh Filters
Dishwasher-safe, micro-mesh filters provide efficient grease removal
EZ1 Brackets
EZ1 brackets enable single-person installation in less than half the time of traditional methods
ADA Capable (Wall Switch Sold Separately)
ADA compliant, remote operation is possible using a standard UL approved wall switch.
EZ1 System
EZ1 system enables easy single-person installation in up to half the time of traditional methods
LED Lighting
Two-level, LED bulbs flood the cooktop and surrounding area with generous illumination.
Non-Duct Capable
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Additional Features:
- 7″ Round Duct
- Horizontal/Vertical Duct Direction
- HVI Certified
- UL Listed
1 Year Limited Warranty
Specifications | |
| Brand | Broan |
| Series | Alta |
Appearance | |
| Color | White |
| Color Family | White |
Dimensions | |
| Exterior Width | 30" |
| Width | 29 7/8" |
| Depth | 22" |
| Height | 5" |
Style | |
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
| Fan | Yes |
Technical Details | |
| Voltage | 120 |
| Amps | 1.4 |
| Duct Type | Both |
| Number of Light Bulbs | 2 |
| Duct Diameter | 7" |
| Duct Length | 3 1/4" |
| Duct Width | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top or Rear |
Certifications | |
| UL Listed | Yes |
Features | |
| Convertible Ducting | Yes |
| CFM | 300 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Number of Fan Speeds | 2 |
| Light | Yes |
| Recirculating Kit | Sold Separately |
| Watts | 168 |
| Brand | Broan |
|---|---|
| Series | Alta |
|
Appearance |
|
| Color | White |
| Color Family | White |
|
Dimensions |
|
| Exterior Width | 30" |
| Width | 29 7/8" |
| Depth | 22" |
| Height | 5" |
|
Style |
|
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
| Fan | Yes |
|
Technical Details |
|
| Voltage | 120 |
| Amps | 1.4 |
| Duct Type | Both |
| Number of Light Bulbs | 2 |
| Duct Diameter | 7" |
| Duct Length | 3 1/4" |
| Duct Width | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top or Rear |
|
Certifications |
|
| UL Listed | Yes |
|
Features |
|
| Convertible Ducting | Yes |
| CFM | 300 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Number of Fan Speeds | 2 |
| Light | Yes |
| Recirculating Kit | Sold Separately |
| Watts | 168 |
