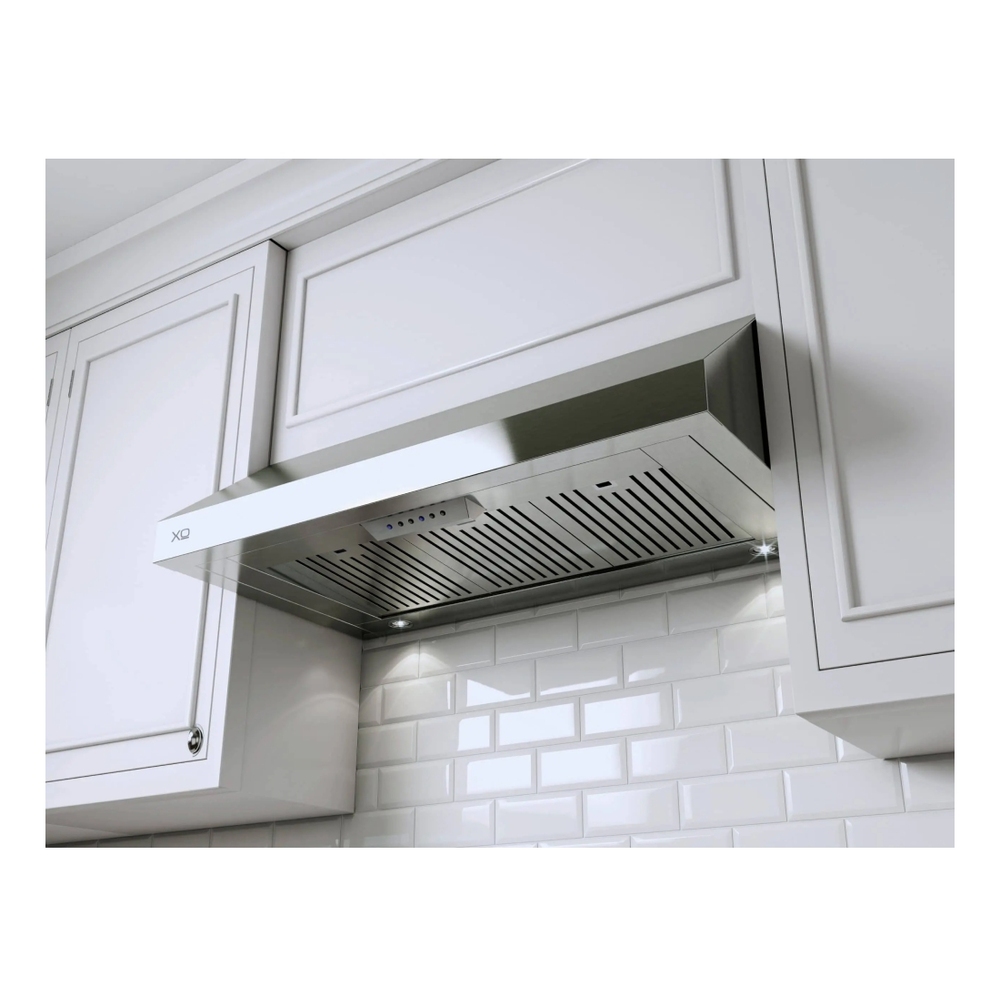

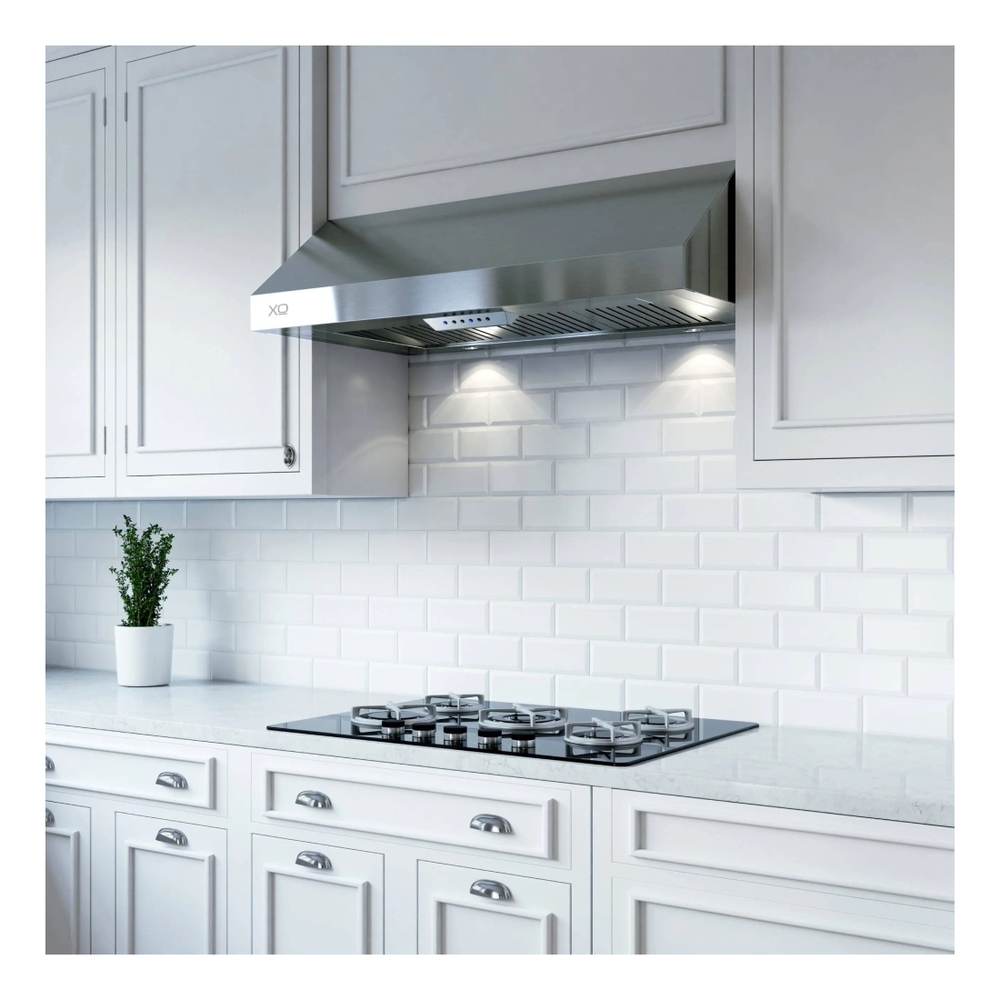

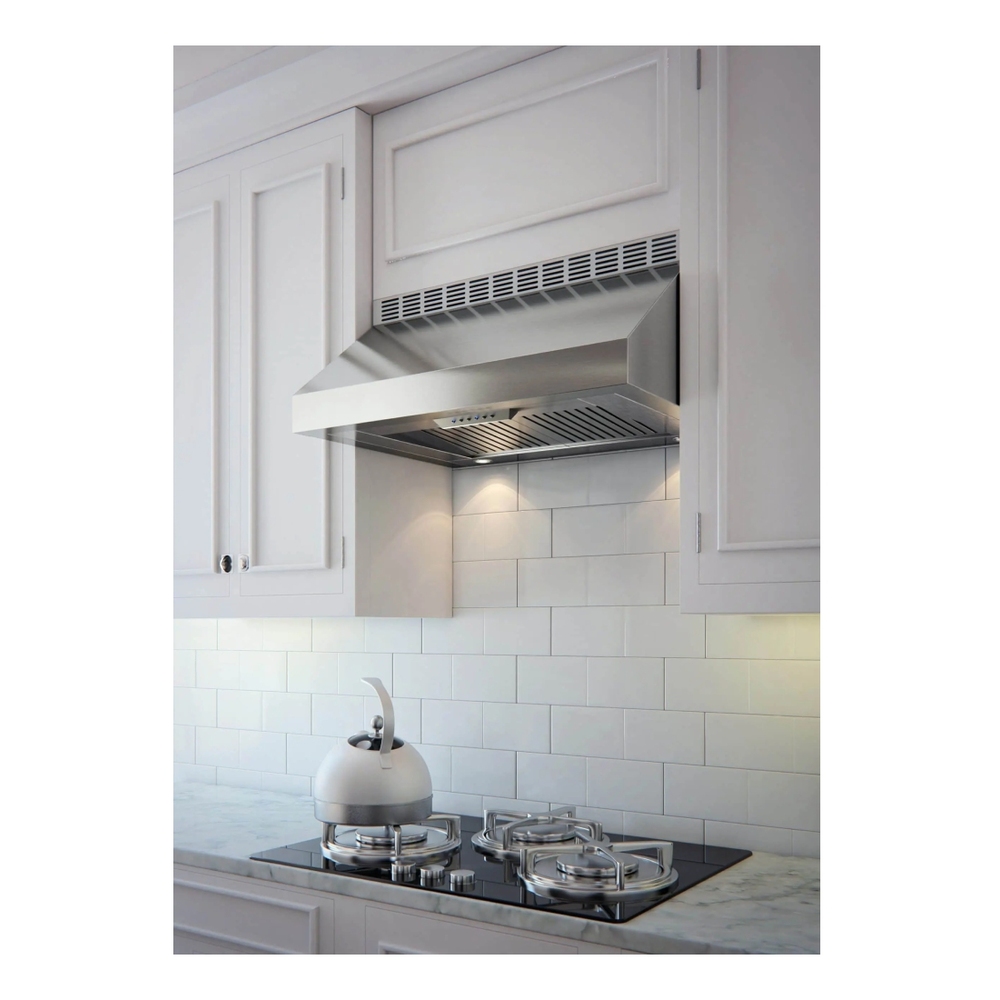

The XOT30SC 30″ range hood showcases a classic American Pro Hood design, combining high performance with exceptional craftsmanship. This Canopy Pro Under Cabinet Range Hood from XO is equipped with Code Compliance Control, enabling you to easily adjust the CFM from 600 to 395, ensuring optimal ventilation for your kitchen. Additionally, it features energy-efficient LED lighting, durable stainless steel baffle filters for effective grease capture, and a convenient delay shutoff function for added convenience. This range hood is an ideal choice for both style and functionality in any modern kitchen.
XOT Pro Hood
The XOT exemplifies the classic American Pro Hood design. This high performance under cabinet hood includes baffle filters. Our superior quality materials and workmanship make this hood a standout among the rest. As with all XO ventilation a recirculation kit is also available.
Code Compliance Control
Enables the installer to re-program the hood as it is being installed. Your XO Hood is set to operate at 600 CFM maximum at the factory. Re-programming is accomplished quickly and requires no special tools or additional parts but once done, the air flow rate is limited to a maximum of 395 CFM below the 400 CFM cap that most local codes impose eliminating the need for additional controls. Re-programming also disables the Power Boost function. After conversion, the installer affixes a label stating unit has been converted to 395 CFM max. once done, the unit cannot be changed back.
Controls

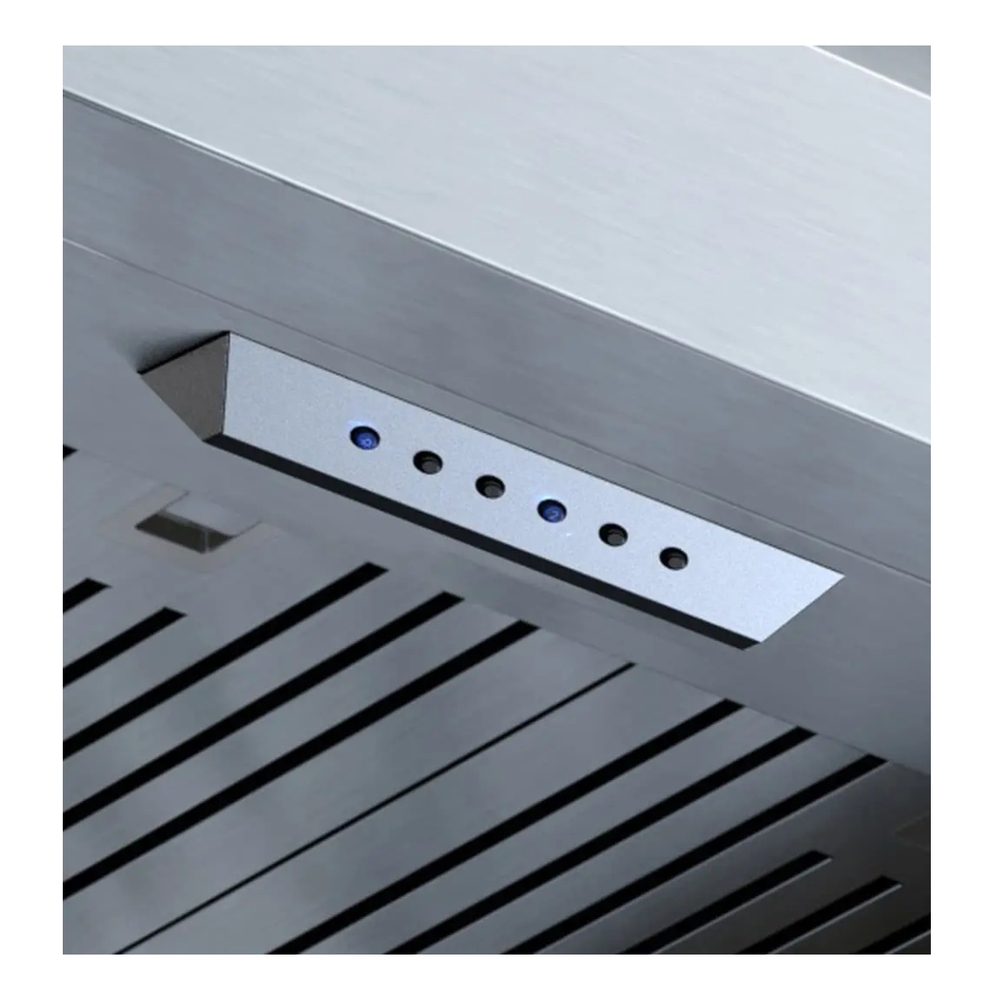

Electronic 3 Speed Control + Power Boost
High Velocity Blower
Optimally removes Smoke, Grease and Odours
LED Lighting
High Efficiency 3000K LED lights (x2)
Filters
Stainless Steel Baffle Filters
Ducting
6” Vertical Duct or Recirculating (Kit Sold Separately)
(Recirculation adds 2-1/4” to the overall height of the unit)
Delay Off
5 Minute Delay Shutoff Timer
Additional Features:
- Mounting Height from cooking surface 27″ – 32″
- UL Listed
- Made In Italy
Specifications | |
| Brand | XO |
| Appliance Category | Hood |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 30" |
| Width | 30" |
| Depth | 22" |
| Height | 11" |
Style | |
| Style | Canopy Style |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Pro-Style | Yes |
| Glass Canopy | No |
| Fan | Yes |
Smart Features | |
| Smart Appliance | No |
| Wi-Fi | No |
Technical Details | |
| Voltage | 115 |
| Amps | 3.6 |
| Duct Type | Round |
| Number of Light Bulbs | 2 |
| Duct Diameter | 6" |
| Duct Location | Top or Rear |
| Frequency | 60 Hz. |
Certifications | |
| ADA Compliant | No |
| Energy Star | No |
| UL Listed | Yes |
Warranty | |
| Warranty | 2 Year Parts and Labor |
Features | |
| Convertible Ducting | Yes |
| CFM | 600 |
| Filter Type | Baffle |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | LED |
| Delay Turn Off | Yes |
| Number of Fan Speeds | 4 |
| Light | Yes |
| Recirculating Kit | Sold Separately |
