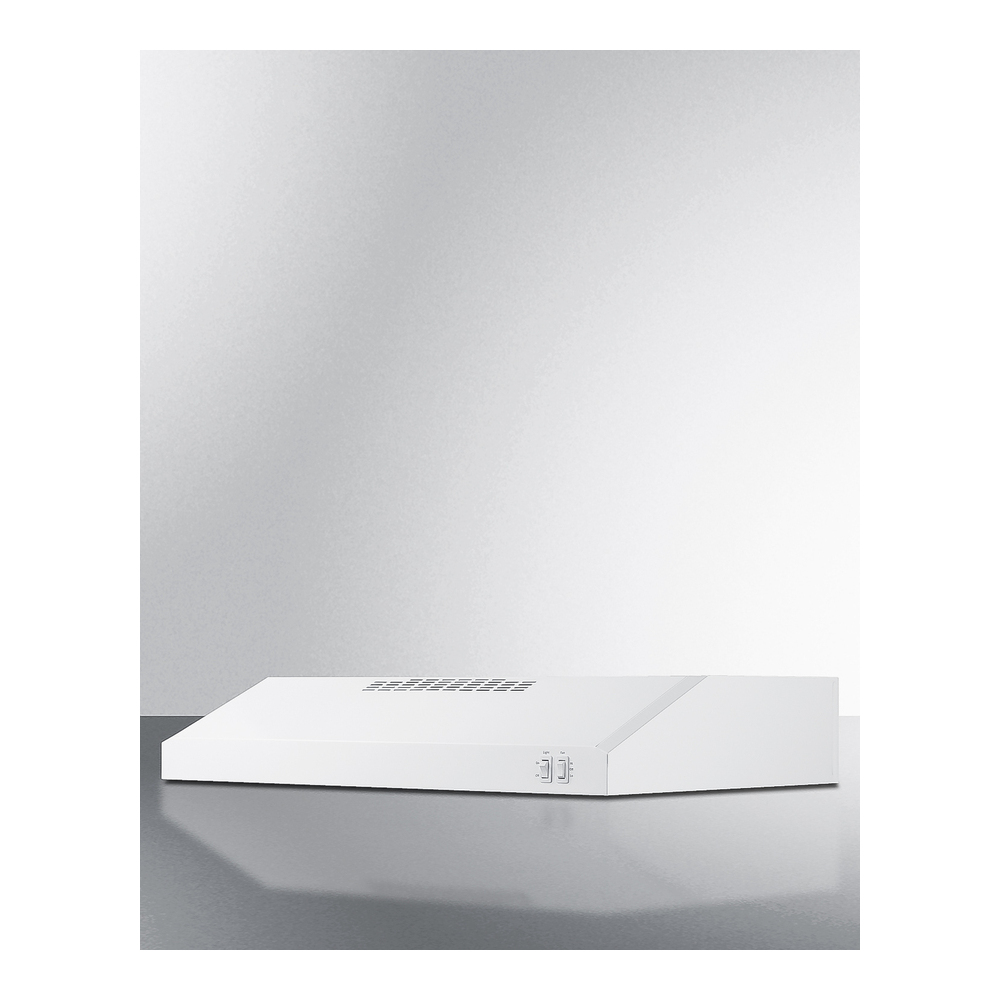

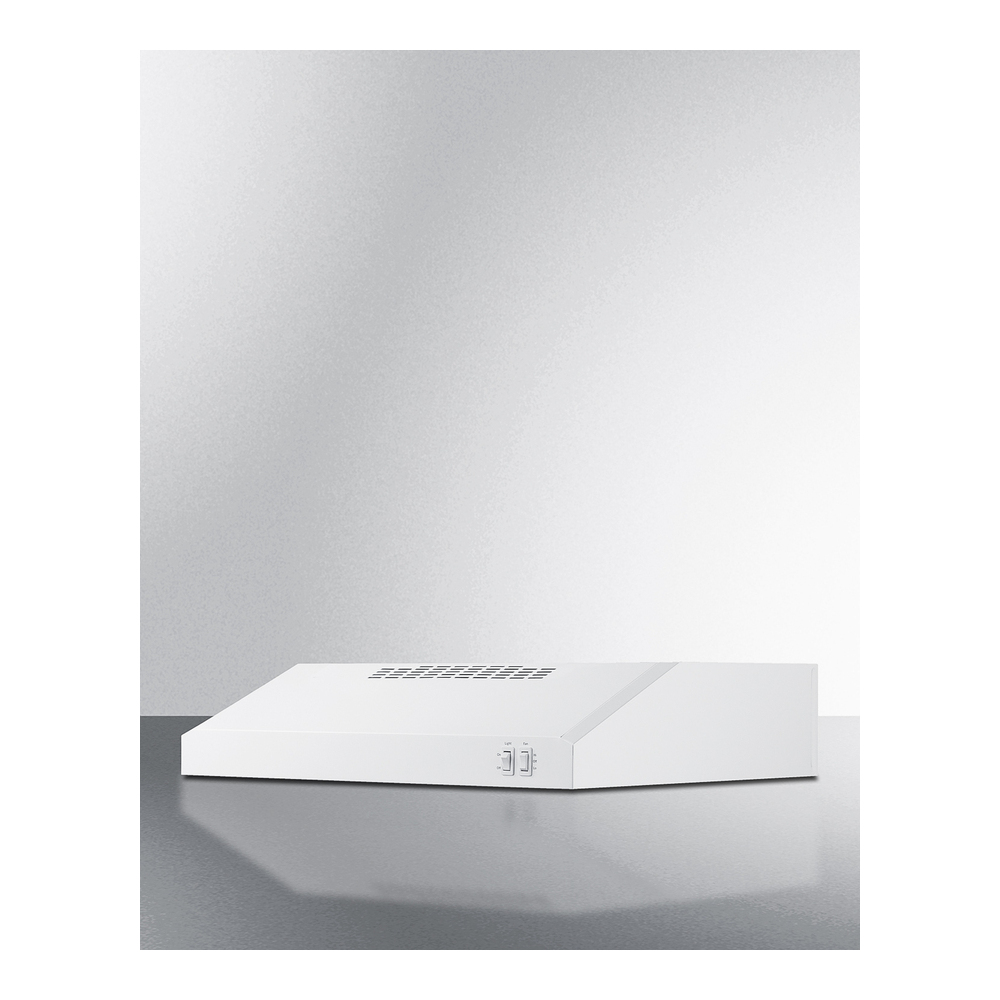

Under cabinet range hood
Low profile design offers a classic way to finish your kitchen
24 inch width
Sized for use over 24 inch cooking surfaces (additional sizes available)
Convertible design
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Easy 1-step conversion
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
Versatile top or rear exhaust
Ships for standard 3 1/4″ x 10″ vertical or horizontal exterior venting and convertible to a 6″ or 7″ round vertical venting with a transition (not included)
Stainless steel finish
Durable construction in an attractive style with a horizontal grain
Two-speed fan
High and low setting to allow proper ventilation of your kitchen as needed
Light & bulb included
Includes an incandescent bulb to help illuminate your cooking surface
Removable metal grease filter
Easy installation and detaching allows you to properly clean the filter for optimum efficiency
Charcoal filter included
Helps absorb grease and odors when using the hood in recirculating mode
Rocker switch controls
Front-located on/off and high/low switches make it easy to manage the light and fan
Professional installation
Designed to be hard-wired by a licensed professional
Specifications | |
| Brand | Summit |
Appearance | |
| Color | Stainless Steel |
| Color Family | Stainless Steel |
Dimensions | |
| Exterior Width | 24" |
| Width | 23 7/8" |
| Depth | 18 5/8" |
| Height | 5 1/2" |
Style | |
| Style | Standard Hood |
| Type | Hood |
| Mounting Type | Under Cabinet |
| Glass Canopy | No |
| Fan | Yes |
Technical Details | |
| Voltage | 115 |
| Amps | 15 |
| Duct Type | Both |
| Number of Light Bulbs | 1 |
| Duct Diameter | 6" |
| Duct Length | 3 1/4" |
| Duct Width | 10" |
| Frequency | 60 Hz. |
| Vent Location | Top or Rear |
Certifications | |
| ADA Compliant | No |
Features | |
| Convertible Ducting | Yes |
| CFM | 220 |
| Filter Type | Mesh |
| Venting Type | Convertible |
| Blower Type | Internal |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Light | Yes |
| Recirculating Kit | Included |
